Newton NP400 LLPS
Application

Suitable for use within a clean water pumping system.

Description

The Newton NP400 LLPS is a pumping system based around the Newton NP400 PP Puddle Pump. Switching of puddle pumps is problematic, because by their nature they are dealing with low heights of water. This makes conventional switching difficult.

Features and benefits:

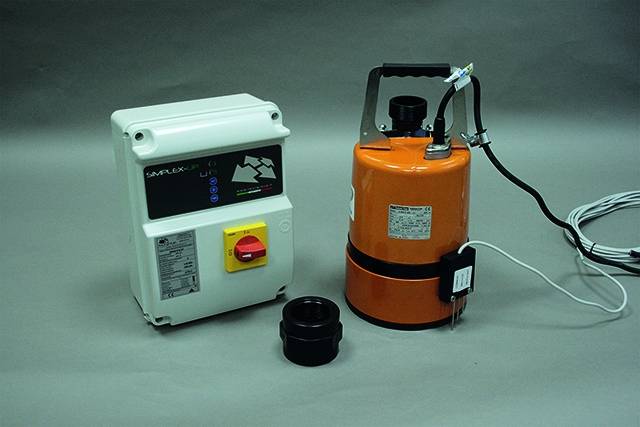

  • The NP400 LLPS has a small control panel and low-level switching module added to the NP400 PP Puddle Pump that will give accurate and safe switching of water levels of just 10 mm.
  • The NP400 LLPS will pump down to just 1 mm of water depth.
  • The NP400 LLPS has an integral one-way check valve and is suitable for use with 50 mm flexible suction hose.

Application:

Suitable for use within a clean water pumping system.

General information

Features

Small control panel, integral one-way check valve, and suitable for use with 50 mm flexible suction hose, the NP400 LLPS will pump down to just 1 mm of water depth

Size

196 x 196 x 316 mm. 50 mm flexible suction hose

Uniclass 2015

Pr_65_53_24_86 Submersible pumpsPrimary

CAWS

R12/135 Private packaged pumping stations and pressure pipeline system

R18/310 Private packaged pumping stations

Specification data - Submersible pumps

Product Reference

Newton NP400 LLPS (SP1)

Accessories

Newton High Water Level Alarm (PA50)

Newton Dialer (PA5)

Can send either text or voice messages to up to five designated phones should an alarm condition occur.

Newton Victron Converter and Battery Backup Systems

Pipework

50 mm flexible suction hose

Battery back-up

MultiPlus 12/1200/50 (BB2)

Battery backup facility for pumps of 400 W.

Standby batteries

101 Ah High Efficiency battery (BB21)

201 Ah High Efficiency battery (BB22)

Discharge bore

50 mm

Pumping head (maximum)

11 metres

Flow rate (maximum)

170 Litres/minute

Flow rate at 4 m head

140 Litres/minute

Soft solid passage

6 mm

Fluid suitability

Rainwater, ground water

Fluid temperature range

0–40°C

Motor output

400 W

Vortex impellor speed

3000 rpm

Material

Pressed seal, rubber base plate

Shaft seals

Double Silicon Carbide

Float switch

Probe with control via panel

Standard product features

Features:

Small control panel, integral one-way check valve, and suitable for use with 50 mm flexible suction hose, the NP400 LLPS will pump down to just 1 mm of water depth.

Size:

196 x 196 x 316 mm. 50 mm flexible suction hose.
