NBS Source

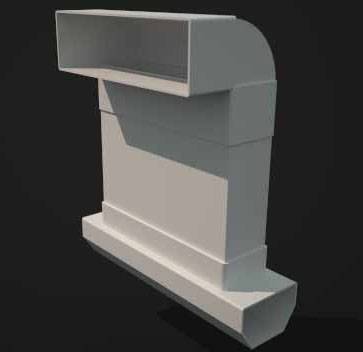

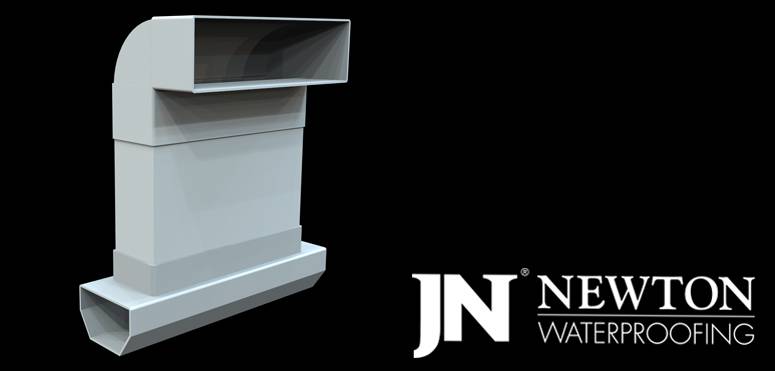

Newton Basedrain Access Port

Application

For inspection and maintenance access to the drainage channels of Newton System 500.

Description

Jetting and access point for inspection and maintenance, providing access to the drainage system.

General information

Color

White

Finish

Smooth

Material

PVC-U

Shape

Other

Length

273 mm

Width

80 mm

Height

50 mm

WarrantyDescription

30 year

Uniclass

Pr_65_52_24_28 Floor channelsPrimary

CAWS

J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane

J40/382 Cavity drainage channels

J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane

Specification data - Floor channels

Body

-

Material

Unplasticized polyvinyl chloride (PVC-U).

Sizes

50 x 80 x 273 mm.

Length

273 mm.

Cover or grating

-

Material

PVC-U.

Finish

Smooth.

Integral accessories

D27.

90° bend

D28.

2-metre ducting

D29.

End cap

Product Reference

Newton Basedrain Access Port D5

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

0 kg·CO₂e/kg

Recyclability

0

Recycled content

0 %

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

5

2.0
Download now from NBS National BIM Library

Literature

Newton Basedrain TDS

Newton Basedrain TDS

Newton CDM Basedrain TDS

Newton CDM Basedrain TDS
