Cementitious flexible waterproofing membrane.
Waterproofing of:
Newton 107F is a two-component, cementitious, polymer-rich coating for the waterproofing and protection of concrete and masonry. Capable of withstanding heads of water pressure to 10 bar, both positively and negatively. It is ideally suited to the waterproofing of reservoirs, tunnels, water tanks, earth-retaining structures and covered or buried decks, and is especially suitable where the structure has both masonry and concrete elements where differential movement is expected.
When mixed, 107F is thixotropic to enable ease of application by brush or airless spray, providing an even finish with no sagging and excellent adhesion to prepared concrete and masonry substrates, even in vertical situations.
The product hydrates to form a durable, highly alkaline, permanently elastomeric coating which not only protects the concrete or other substrates from water penetration and carbon dioxide diffusion, but also accommodates movement in cracks and at movement joints.
The membrane is reinforced over static joints and at details and changes of direction with Newton 912-RT. For horizontal and vertical movement joints use Newton 106 FlexProof.
Surface preparation is required, as is protection after application - consult manufacturer for details.
Features and benefits:
Curing:
Application:
Waterproofing of:
Color | Liquid: Milky white, Powder: Grey/ white |
WarrantyDescription | Newton 107F is guaranteed to resist weathering for up to 10-years. The membrane is not UV colour stable and will slightly fade in colour over time, and it may take a few months for the colour to be consistent. Over time discolouration due to weathering may take place, but the membrane will be serviceable |
Uniclass 2015 | |
CAWS | J10/110 Proprietary mortar J31/130 Inverted roof coating Q37/110 Intensive green roof Q37/130 Extensive green roof Q37/310 Inverted roof insulation |
Product Reference | Newton 107F |
Third party product certification | BDA Agrément® BAB 18-026-P-A-UK |
Adhesion to concrete | ≥ 0.8 MPa BS EN 1542 |
TensileStrength | Ambient: 0.5 MPa BS 6319-7:1994. Immersed: 0.4 MPa BS 6319-7:1994 |
Elongation | Ambient: 120 - 130 % manufacturer test. Immersed: 70 - 80 MPa manufacturer test. |
Loading capability – 28 days | 8 to 10 MPa BS 4551 |
Hardness | 84.0 Shore A BS EN ISO 868:2003 |
Water permeability coefficient | 5.37 x 10-16 m/sec DIN 1048 Part 1 |
Water vapour diffusion resistance | Sd value: 1.55 m BS EN ISO 7783-2. µ value: 775 µ Calculation from Sd value7.75 MNs/g Calculation from Sd value |
Water resistance | Positive side: 10.0 Bar DIN 1048. Negative side: 1.50 Bar DIN 1048 |
Reaction to fire classification | Euroclass Bs1, d0 BS EN 13501-1 |
UV resistance | Stable but will discolour, 50 years UNI EN ISO 11507:2007 |
pH | 12 |
Thickness | 2 mm |
Odour | Low (polymeric) |
Volatile organic compounds (VOC) content | 1.76 g/L (0 when cured) |

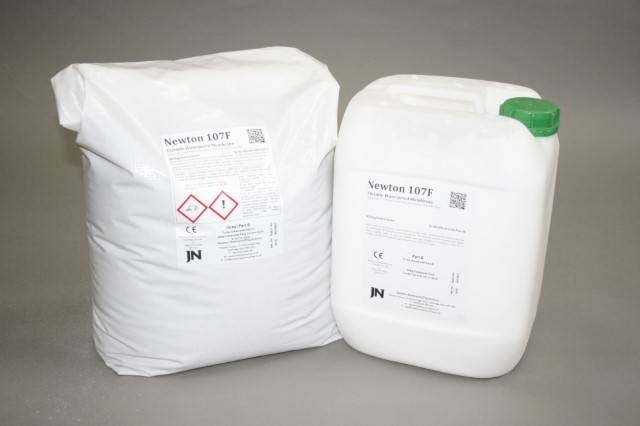

Standard product features | Colour: Grey. Features: Easily mixed on site, a tough, flexible coating with excellent adhesion to sound prepared concrete and masonry substrates. Finish: Smooth, matt grey coating. Material: Cementitious flexible waterproofing membrane. Shape: 2 mm thick waterproof membrane. Size: 30 kg in two parts - 10 kg Part A (Powder) and 20 kg Part B (Liquid). Warranty description: When specified, installed and protected in accordance with the Data Sheet, fully and permanently isolated from UV light and physical damage or wearing, and only to those substrates confirmed within, Newton 107F has a service life that can be equal to the design life of the structure. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 2 | 1.3 |
![]() | Revit 2015 | 4 | 1.3 |
