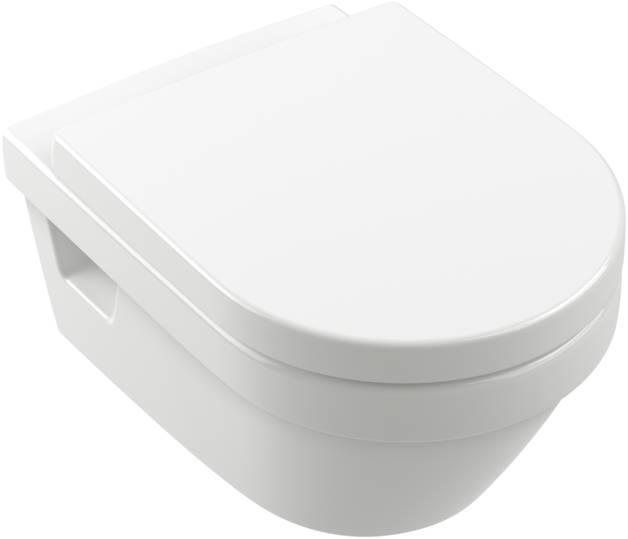

Newo Washdown WC Wall-Mounted 4675R0 - Wall-Mounted WC
Verified by manufacturer 8 months ago
Rimless, washdown toilet.
Application
Suitable for washdown toilet.
Description
Rimless, washdown toilet.
Features and benefits:
- Washdown flush.
- Sanitary ceramics.
- Not suitable for installation with flush valves.
- EAN number: 4062373895795.
- LEED 4.
- Please order toilet seat separately.
General information
Color | White |
Finish | Sheen |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Other |
Length | 530 mm |
Width | 370 mm |
Height | 325 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Form | Wall-mounted, washdown. |
Pan height | 325 mm. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White alpine, shiny. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal. |
Weight | 20.3 kg. |
Width | 370 mm. |
Depth | 530 mm. |
Outlet | Horizontal. |
Accessories | Not required. 8M58S101 - Newo toilet seat. 8M586101 - Newo toilet seat. |
Flush volume | 3/ 4.5 L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
