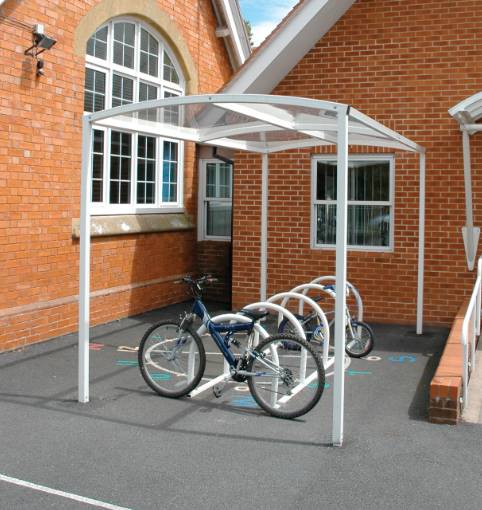

The Newcastle Junior Cycle Shelter is a smaller version of the Newcastle Senior Cycle Shelter.
Application
Cycle Parking Equipment suitable for providing a covered cycle parking area.
Broxap has long been one of the leading designers and manufacturers of a vast range of cycle parking products including bike storage. With our extensive range of cycle shelters, hubs, compounds, cycle stands and cycle racks, we have a cycle parking solution to suit every budget.
With the increased need for cycle parking shelters and bike shelters in urban areas, we are a leader in the market for space saving and innovative solutions and are always working to find new ways to improve their products and their customer’s experience.
Broxap's cycle parking equipment can contribute towards gaining ENE8 credits when used in the appropriate situation, under the Code for Sustainable Homes.
Our cycle parking products are BREEAM and Code for Sustainable Homes Compliant.
Description

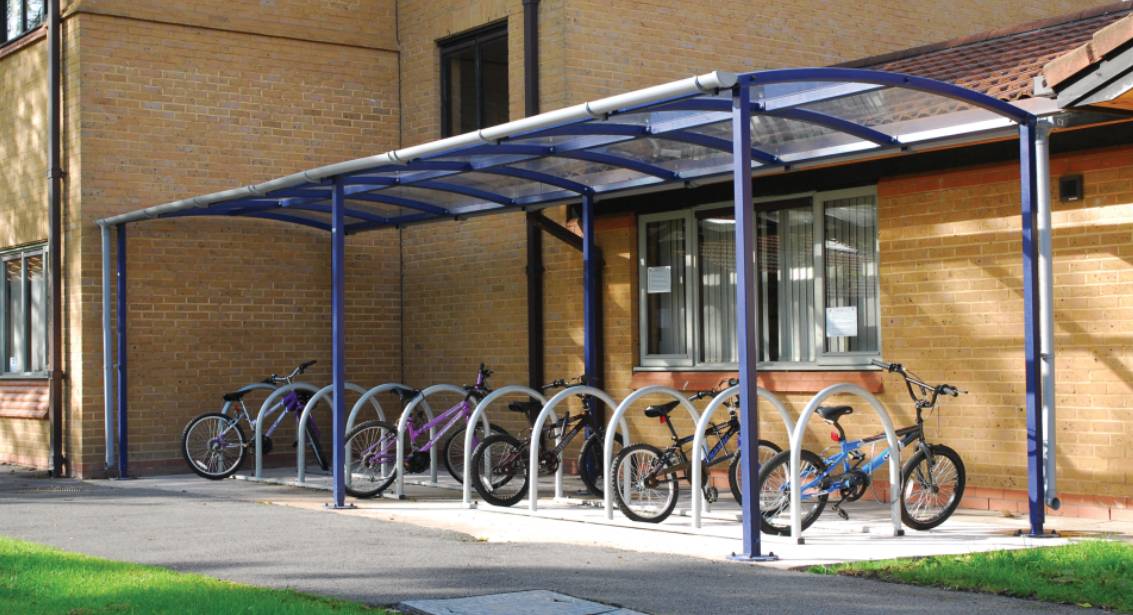

Cycle parking equipment offering a cost effective solution to covering single rows of cycle racks. Modular in design Newcastle Junior Cycle Shelters can be linked to form banks of shelters to accommodate increased quantities of cycles with access from both sides of the shelter.
Features and benefits:
- Robust Modular Construction Featuring Load Bearing Purlins
- Welded End Frames and Purlin Section Made From Heavy-Duty Box Section Assembled with Anti-Tamper High Strength Bolts
- Anti-Climb End Frames
- Adjustable Baseplates
- Hot Dipped Galvanized to BS EN ISO 1461:2009
- 5 mm Clear View PETg UV Roof Cladding
- BREEAM Compliant Configurations
Options:
- Opal Roof Cladding
- Extended Adjustable Baseplates for Submerged Fixing
- Powder Coating to a wide range of colours
- LED or solar lighting
- Multiple Banks to increase cycle capacity
- Full Installation Service.
- Optional Zinc Rich Primer.
Capacities:
- 3600 mm - 8 Cycles.
- 4100 mm - 10 Cycles.
- 5000 mm - 12 Cycles.
General information
Color | Black Blue Green Grey Red |
Finish | Galvanized Powder-coated Guidance for specification option: Polyester powder coated Zinc plated |
Material | Steel Guidance for specification option: Frame - 60 x 60 mm box section. Polycarbonate |
Shape | Other |
Length | 3600 mm 4100 mm 5000 mm |
Width | 2200 mm |
Height | 2300 mm |
Warranty description | One year |
Uniclass | |
CAWS | B91/340 Cycle shelter B91/330 Canopy B91/385 Shelter |
Specification data - Open-sided shelters
Shelter description | Newcastle Junior Cycle Shelter.Newcastle Junior Cycle Shelter with extension bays.Guidance for specification option: Insert number of extensions. |
Dimensions | |
Plan size | 3600 x 2200 mm.4100 x 2200 mm.5000 x 2200 mm. |
Height | 2300 mm. |
Frame | |
Finish | Galvanized.Galvanized and polyester powder coated.Zinc rich primer.Guidance for specification option: Optional. |
Colour | Cobalt Blue RAL 5013Goose Grey BS 4800 00-A-05Holly Green BS 4800 14-C-39Jet Black RAL 9005Nimbus Grey BS 4800 10 A 07Sky Blue RAL 5015Traffic Red RAL 3020Traffic White RAL 9016Traffic Yellow RAL 1023Anthracite Grey RAL 7016Manufacturer guidancePowder coated to any standard RAL colour |
Roof covering | 5 mm PETg UV ClearView. |
Accessories | Opal roof cladding.LED or solar lighting. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Frame - 60 x 60 mm box section. Polycarbonate |
Manufacturing plant location |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
