New Rivius - Clay Roof Tile
Verified by manufacturer 9 days ago

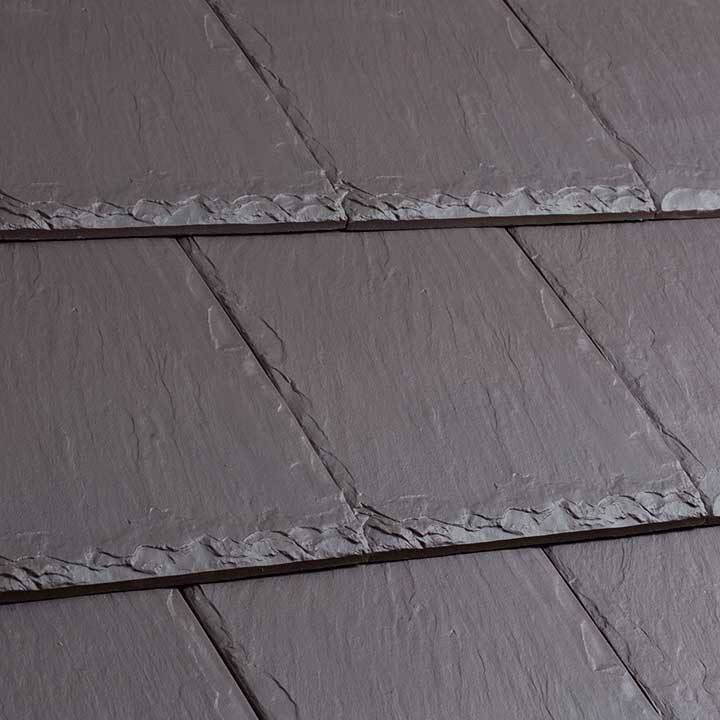

Clay interlocking roof tile with a slate-like appearance.
Application
Suitable for external roofing.
Description
Clay interlocking roof tile suitable for a minimum roof pitch of 22.5 degrees.
General information
Color | Grey Guidance for specification option: Antique slate and Heather colour available. |
Finish | Smooth Guidance for specification option: Slate. |
Material | Clay |
Shape | Rectangle |
Length | 418 mm |
Width | 335 mm |
Uniclass | |
CAWS | H65/105 Clay roof tiling H65/5 Roof tiling |
Specification data - Clay interlocking tiles
Standard | To BS EN 1304. |
Tile type | Clay tile. |
Mechanical and physical properties | |
Impermeability | Cat 1, test method 2. |
Frost resistance | Level 1, 150 cycles. |
Fire performance | |
External fire performance | A1. |
Reaction to fire | A1. |
Profile | Flat. |
Colour | Grey.Guidance for specification option: Antique slate and Heather colour available. |
Surface finish | Slate. |
Size | 418 x 335 mm.Guidance for specification option: (l x w). Hanging length: 300 mm. |
Thickness | 16 mm. |
Gauge | 298—343 mm. Guidance for specification option: Batten spacing at maximum gauge: 255 mm Batten spacing at minimum gauge: 210 mm. |
Head-lap | 75—120 mm. |
Pitch | 22.5°. Guidance for specification option: 22.5° at 75— 100 mm headlap. |
CoverWidth | 307 mm. |
Roof covering | 9.5 tiles per m². Guidance for specification option: at 75mm headlap. |
Weight | 4.2 kg. Guidance for specification option: Per tile. Manufacturer guidanceWeight per pallet (including pallet & packaging: 1.008 tonnes. |
Battens | 38 x 25 mm. Guidance for specification option: Batten size - up to 450 mm rafter centres. 50 x 25 mm. Guidance for specification option: Batten size - up to 600 mm rafter centres. Manufacturer guidanceBattens per m2 2.9 m at 75mm. |
Fixing | 45 x 3.35 mm. Guidance for specification option: 45 x 3.35 mm aluminium ring shank clout head. 55 x 3.35 mm. Guidance for specification option: 55 x 3.35 mm aluminium ring shank clout head. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Clay |
Literature
Rivius Technical Data Sheet
