Nesite Juno - Raised Access Floor System
Verified by manufacturer 1 day ago

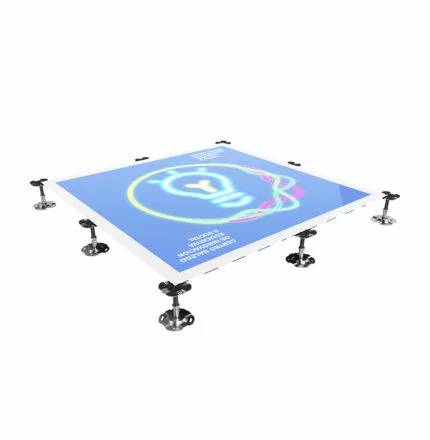

Walkable LED lighting panel for raised floors that combines energy efficiency, durability and customisable design.
Application
JUNO is used as a decorative and functional lighting element within raised floor systems to create illuminated walkways, guide movement, or highlight architectural features in interior spaces such as commercial buildings, public areas, and design-focused projects.
Description
JUNO is a high-brightness LED walkable panel specifically designed for integration into raised floor systems. It enables the creation of illuminated pathways or the highlighting of architectural elements with a high level of design flexibility. With low energy consumption and a long operating life, JUNO combines lighting functionality with durability and refined aesthetics, making it suitable for decorative and architectural applications in interior environments.
Features and benefits:
- Designed to fit seamlessly inside raised floor systems.
- Walkable panel suitable for pedestrian traffic.
- High-brightness LED technology ensures clear and effective illumination.
- Low energy consumption with an absorption of only 30 W.
- Long lifespan with a minimum operating duration of 30 000 hours.
- Available in PL version with diffused light across the entire surface.
- Available in SP version with engraving or silk-screen printing options.
- Solid Surface finish provides resistance, durability, and ease of maintenance.
- Customisable textures allow unique design solutions for each project.
- Composed of eco-friendly materials suitable for indoor use.
General information
Color | White Black Silver |
Finish | Matt Textured Other Guidance for specification option: Engraving or silk-screen printing |
Material | Solid surface Glass Steel |
Shape | Square Rectangle |
Length | 600 mm 1200 mm |
Width | 600 mm |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Proprietary raised access floor |
Specification data - Raised access floor systems
Classification data | |
Subfloor preparation | Manufacturer guidanceInsert requirements or omit. |

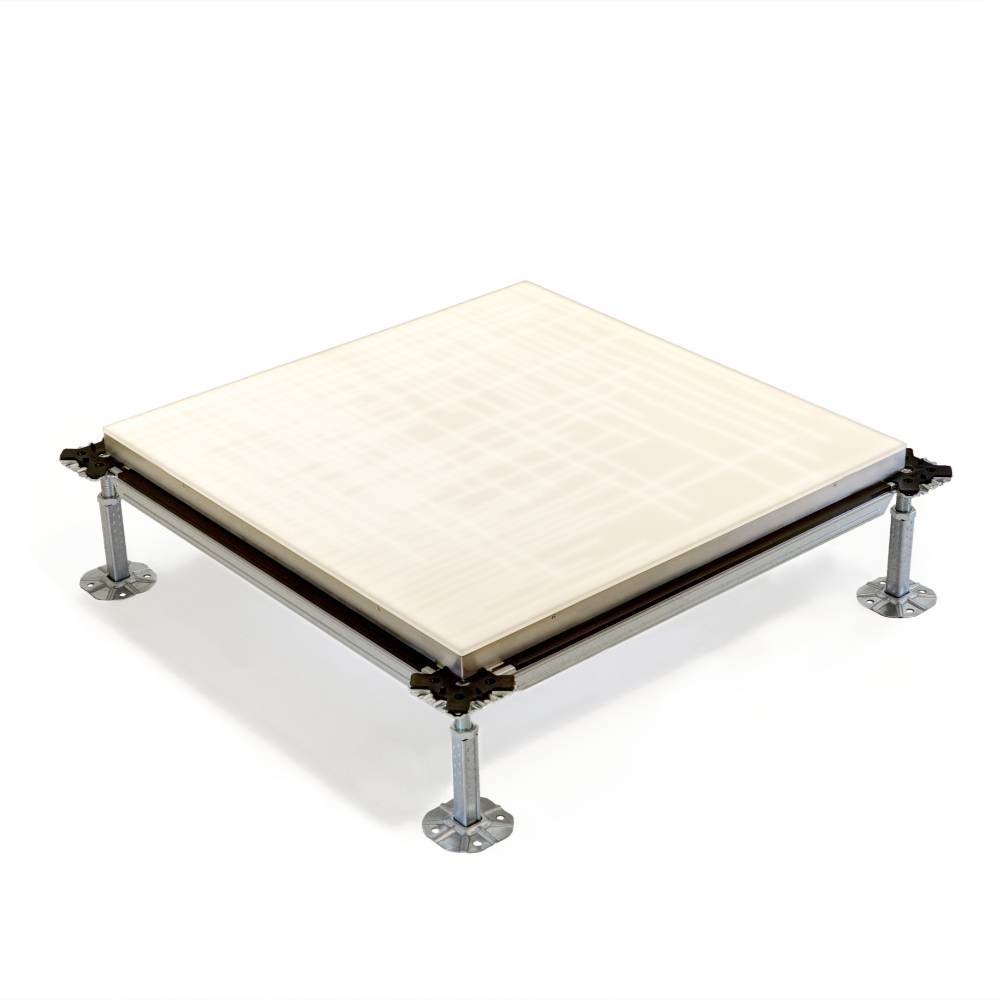

Support structure type | Access floor pedestals - MPS. Guidance for specification option: A solution for locals where floor height is reduced and/ or load requirements are light/ medium. Available heights from 35 mm to 600 mm. Access floor pedestals and stringers - MPL. Guidance for specification option: The structure with open cross-sectional stringers allows maximum stability of the floor even without gluing the columns to the supporting slab support. Access floor pedestals and stringers - MPM. Guidance for specification option: The substructure with medium resistance and open section stringers is suitable for rooms with medium/ high load requirements and traffic. Heights from 35 to 1000 mm. Access floor pedestals and stringers - MPH. Guidance for specification option: The substructure with closed rectangular stringers allows to reach high loads. Suitable for technical rooms and high traffic areas. Access floor pedestals and stringers - BPC. Guidance for specification option: A solution for maximum performance, which ensures rigidity and electrical continuity due to the rectangular section closed stringers 50 x 25 mm. Access floor pedestals and stringers - TR. Guidance for specification option: Specifically designed for technical areas such as data centres and is characterised by the pedestals' high load performance and positioning flexibility. |
Pedestal fixings | Not required. Epoxy resin-based adhesives. Polyurethane (PUR) adhesives. |
Raised access floor surface | Raised access floor panels with solid surface finish - JUNO PL. Guidance for specification option: With diffused light on the whole surface. Raised access floor panels with solid surface finish - JUNO SP. Guidance for specification option: With engraving or silk-screen printing. |
Samples required | Manufacturer guidanceInsert requirements or omit. |
System accessories | Not required. Light colour customisation. Dimmable light. Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Profile colour | White. Black. Silver. |
Colour/ Finish | Matt white. |
LED lighting | Voltage: 24 V d.c. Flux: 4000 lm. Protection class: IP 20. Emission angle: 120°. Temperature colour: TYP W NW WW RGB. |
Sustainability data
Material | Solid surface Glass Steel |
Literature
Juno Brochure
