NCA Series 400 - Single Blade Fire Dampers
Verified by manufacturer 4 months ago
S400H - Hand Operated
S400H - Hand Operated
CE marked single blade type fire damper, assessed against the requirements of EN 15650.
Application
- Suitable for areas requiring dampers with ‘ES’ classification.
- Suit drywall partitions of minimum specification EI60 group A, masonry walls and concrete floor slabs.
Description
The NCA Series 400 is designed to maintain compartmentation in buildings and locations where ductwork penetrates a fire barrier, to prevent fires spreading through ductwork. With their reduced leakage design, NCA Series 400 motorised leakage rated fire dampers make them suitable for areas requiring dampers with ‘ES’ classification.

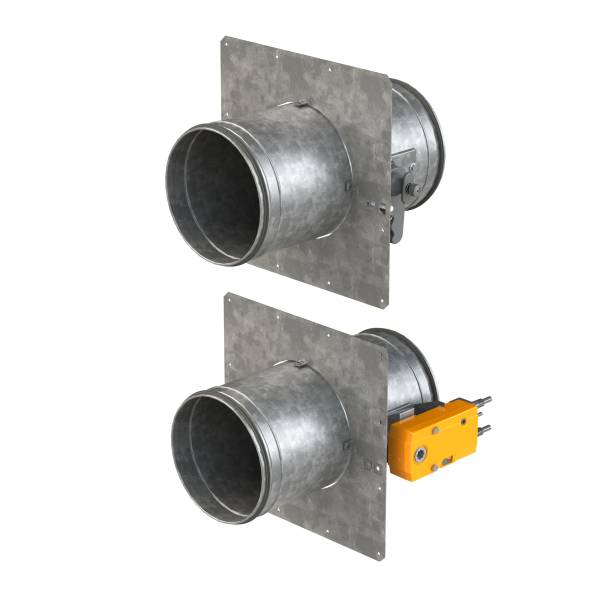

The S400 fire damper is available in two variants:
S400A (motorised): Equipped with a Belimo BFL or BFN series actuator (24 V or 230 V) complete with 72°C thermal probe.
S400H (hand operated): Equipped with a mechanism permitting testing and resetting of the damper to be completed in seconds with one hand. The thermal link is externally replaceable and available in 68°C or 93°C variants.
Features and benefits:
- Easy to install.
- CE marked against the requirements of EN 15650.
- Classified in accordance with EN 13501-3.
- Fire tested to EN 1366-2.
- 120 minute installations for drywall partitions of minimum specification EI60, masonry walls and concrete floor slabs.
- No backfilling or sealing of apertures required.
- Hand operated or motorised, with on-site conversion between type.
- All installations are classified ‘i↔o’ meaning air is permitted to flow in either direction through the damper.
- Single handed test and set mechanism.
- UK patent application pending.
General information
Color | Grey Guidance for specification option: Galvanized steel. |
Finish | Galvanized Zinc plated |
Material | Steel Plastic Fabric |
Shape | Circle |
Length | 380 mm |
Width | 100 mm 125 mm 150 mm 160 mm 200 mm Manufacturer guidanceNominal diameters. |
Warranty description | One year |
Uniclass | |
CAWS | U90/440 Dampers, fusible link type U90/440 Dampers, automatic U90/443 Dampers, fire/ smoke U90/443 Dampers, fire and smoke |
Specification data - Fire and smoke dampers
Standard | |
Fire dampers | To BS EN 15650. |
Test | To BS EN 1366-2. |
Classification | To BS EN 13501-3. |
Arrangement | Single-blade.Guidance for specification option: Directly driven single blade. |
Classification | E120. |
Material | Galvanized steel.Manufacturer guidancePlate frame, case and blade material. |
Accessories | Not required.Microswitch (MS).Control panel.Guidance for specification option: Consult manufacturer for details. |
Fusible links | |
Fusing temperature | 68°C.Guidance for specification option: Standard. 93°C.Guidance for specification option: Optional. |
Diameter | 100 mm. Guidance for specification option: Weight: 2 kg. 125 mm. Guidance for specification option: Weight: 2 kg. 150 mm. Guidance for specification option: Weight: 3 kg. 160 mm. Guidance for specification option: Weight: 3 kg. 200 mm. Guidance for specification option: Weight: 3 kg. Manufacturer guidanceNominal diameter. |
Control | Hand operated. Guidance for specification option: Manual handle assembly with set and test functionality. |
Frame | Plate. Manufacturer guidanceFrame type. |
Blade | Specialist fire resistant fabric. Manufacturer guidanceBlade seal material. |
Drive | Bright zinc plated (BZP) steel. Manufacturer guidanceDrive material. |
Handle | Fire retardant plastic. Manufacturer guidanceHandle material. |
