Nano Wall - Shower drain
Application

New construction or renovation.

Description

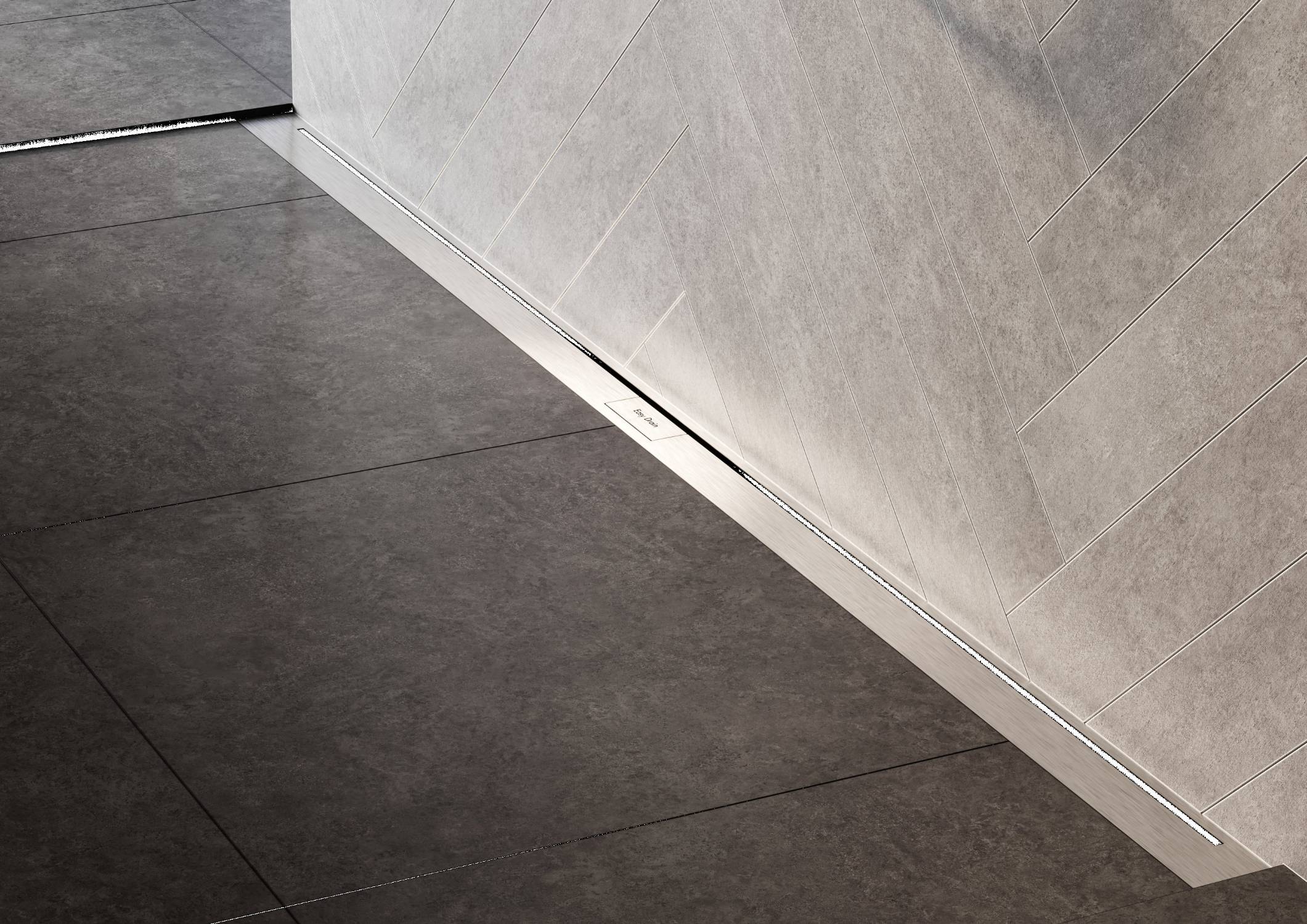

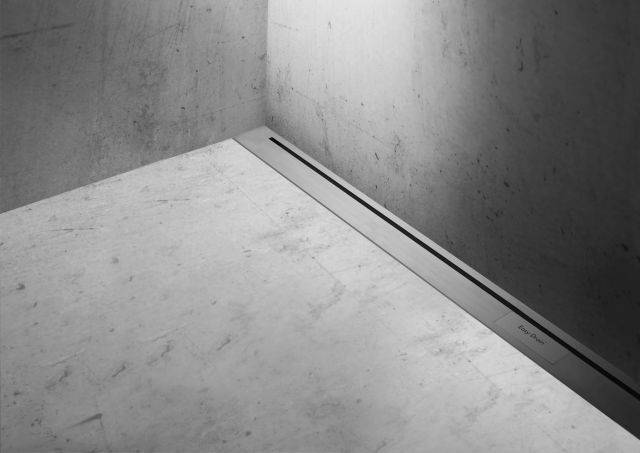

Thin shower drain, equipped with the patented TAF system and Water Protection System (WPS), providing a 100% watertight and perfect finish. The included water seal is easy to clean and offers a very high drainage capacity (33 L/min). For installation next to the wall.

Features and benefits:

  • Available in lengths of 700–1200 mm.
  • 90 - 100 mm minimum installation depth.
  • TAF: height-adjustable frame (5–25 mm).
  • WPS: 100% watertight with ten-year warranty.
  • EN 1253-certified.
  • ETAG-022-certified.

Application:

New construction or renovation.

General information

Material

Stainless steel

Size

800x66x53mm

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

Nano Wall - Shower drain

Standard

To EN 1253 + ETAG-022

Body

-

Configuration

Siphon

Material

Acrylonitrile butadiene styrene (ABS)

Cover or grating

-

Type

Slot grating

Material

Stainless steel

Finish

Brushed

Outlet

Horizontal adjustable

Standard.

Vertical adjustable

Length

700 mm

800 mm

900 mm

1000 mm

1200 mm

Installation depth (minimum)

90 - 100 mm

Drainage capacity

41 L/m

Water seal height

50 mm

Connection

Global: 50 mm; UK: 56 mm

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors

Suitable floor finishes

Glass mosaic, thin tiles, tiles/ mosaic

Installation height

95 - 118 mm

Standard product features

Features:

Extremely thin.

Finish:

Brushed frame.

Material:

Stainless steel grade 1.4301 (304) frame.

Shape:

Rectangular.

Size:

53 mm width.

Warranty description:

Water Protection System: Ten years.

Country of origin:

The Netherlands.

Country of manufacture:

Germany.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
