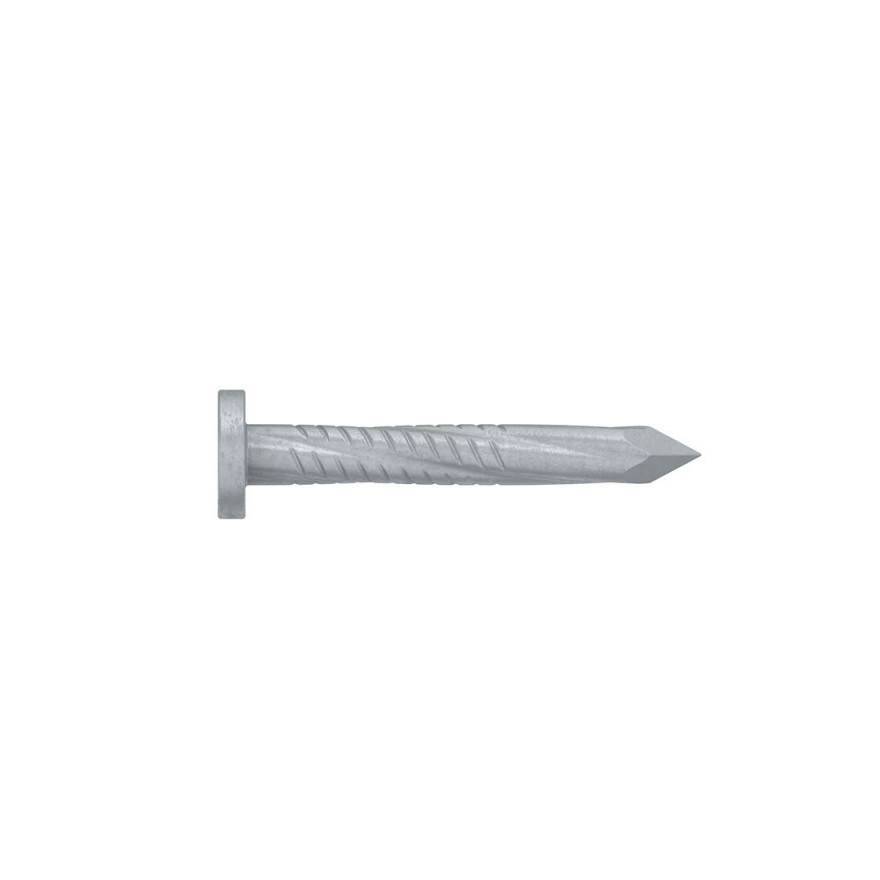

N3.75SH: Square Twist Nail Sheradised

Verified by manufacturer 5 months ago

Simpson Strong-Tie Third party certifications:
  • DoP

    DoP

    Certificate type

A square twist nail for use with Simpson Strong-Tie connectors.

Jump to:
+44 (0)1827 255600 Website

Application

  • For use in load bearing timber structures.
  • Fastening hangers with straps.
  • Fastening hangers with top flanges.
  • Fastening ZS clip for I-beams.
  • Fastening connectors to timber including solid wood, composite lumber and glued-laminated timber.
  • Joist hanger fastening.
  • Angle brackets.
  • Straps.
  • Nail plates.

Description

N3.75 square twist nails are tested and approved for use when installing Simpson Strong-Tie connectors including joist hangers, brackets and straps.


Features and benefits:

  • Steel with sheradised coating suitable for service class 2 environments.
  • CE marked to EN 14592.
  • Square twist profile.

General information

Color

Silver

Finish

Coated

Material

Steel

Shape

Circle

Length

30 mm

Width

3.75 mm

Uniclass

Pr_20_29_56_84 Square twisted nailsPrimary

CAWS

G20/65 Joist hangers

G20/580 Framing anchors

G20/590 Metal plate fasteners/ gussets

G20/791 Proprietary joist hangers

G20/830 Lateral restraint straps

G20/820 Vertical restraint straps

G20/90 Lateral restraint straps

G20/85 Vertical restraint straps

G20/45 Framing anchors

Specification data - Square twisted nails

Standards

To EN 14592:2008+A1:2012.

Certification

CE marked.

Length

30 mm.

Diameter

3.75 mm.

Service class

2.

Third party certifications

DoP

DoP

Declaration of Performance DoP-h13/0012

Literature

N3.75SH: Square Twist Nail Sheradised Technical Data Sheet

N3.75SH: Square Twist Nail Sheradised Technical Data Sheet
