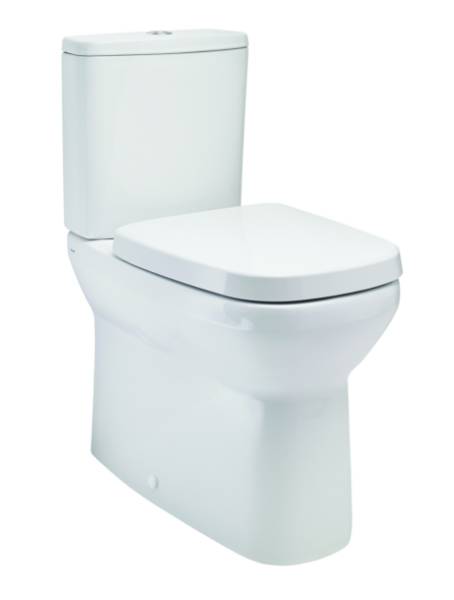

MyHome Close-Coupled Back-to-Wall Toilet

Britton Bathrooms

Close coupled, back-to-wall WC system.

Jump to:
+441322422743 Website

Application

Suitable for domestic applications.

Description

A white, close coupled WC that includes a back-to-wall pan, cistern and seat with soft-close hinges.


Features and benefits:

  • Lifetime guarantee.
  • WRAS approved
  • Dual flush cistern fittings.
  • Push large button down for 6 litre flush and small button for 3 litre flush.
  • 42.6 kg total weight.

General information

Color

White

Finish

Glazed

Material

Vitreous china

Pan and cistern

Width

365 mm

Height

780 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary
Ss_40_15_75_97 WC systems
Pr_40_20_93_95 WC seats and covers
Pr_40_20_93_89 WC cisterns

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Form

Back-to-wall.

Pan height

425 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

Gloss, white.

Water supply, outlet and seat holes

-

Water supply

Top inlet.

Integral accessories

MYCCCW Cistern and MYSCSEATW seat.

Third-party certification

Cistern only. Pan and Seat not applicable.

Water Regulations Advisory Scheme (WRAS) approved.

CisternCapacity

6 L/ 3 L.

Operating control

Push button.

CisternHeight

355 mm.

Seat

Urea.

Length

404 mm.

Hinges

Soft close.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library
