Description

Aluminium curtain walling system for use with a variety of curtain walling applications using the same mullion and transom grid, enabling variations to the external appearance of the building, with the construction benefitting from one fully integrated system.

Features and benefits:

  • Mullions and transoms are square cut and assembled using a combination of factory-fitted, cast face-fixed junction spigots and concealed anti-rotation spigots, or by transom blocks.
  • The mullions and transoms are square cut and assembled using a combination of cast face-fixed junction spigots and concealed anti-rotation spigots for ease of fabrication.
  • The mullion jointing uses a specially designed sleeve spigot for each mullion for a high quality joint.
  • The system is zone drained and pressure equalized to ensure performance and drainage efficiency.
  • Facet up to ±10° using standard cast cleat and cap. Up to 20° using caps and adapters.
  • Dry glazed.

Design options include:

  • MX Visible grid.
  • MX Trame, for horizontal or vertical emphasis. Horizontal variants can accommodate 6–32 mm.
  • MX Acoustic.
  • MX SSG: Structural sealant glazing.
  • MX 62.
  • MX Sloped/ Faceted facades.

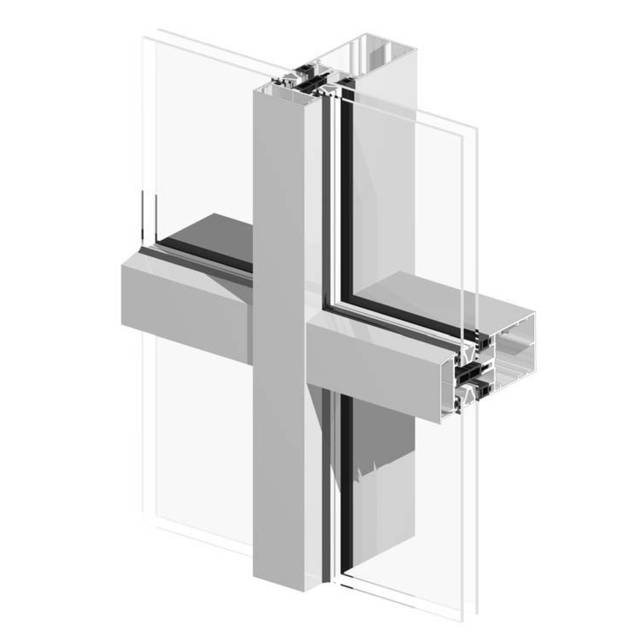

MX Visible Grid:

Features:

  • • Less deflection across the transoms allows the system to hold large, heavy glazing units.
  • • Projecting top-hung open-out, and tilt/ turn concealed vents for natural ventilation whilst maintaining an uninterrupted, flat façade.

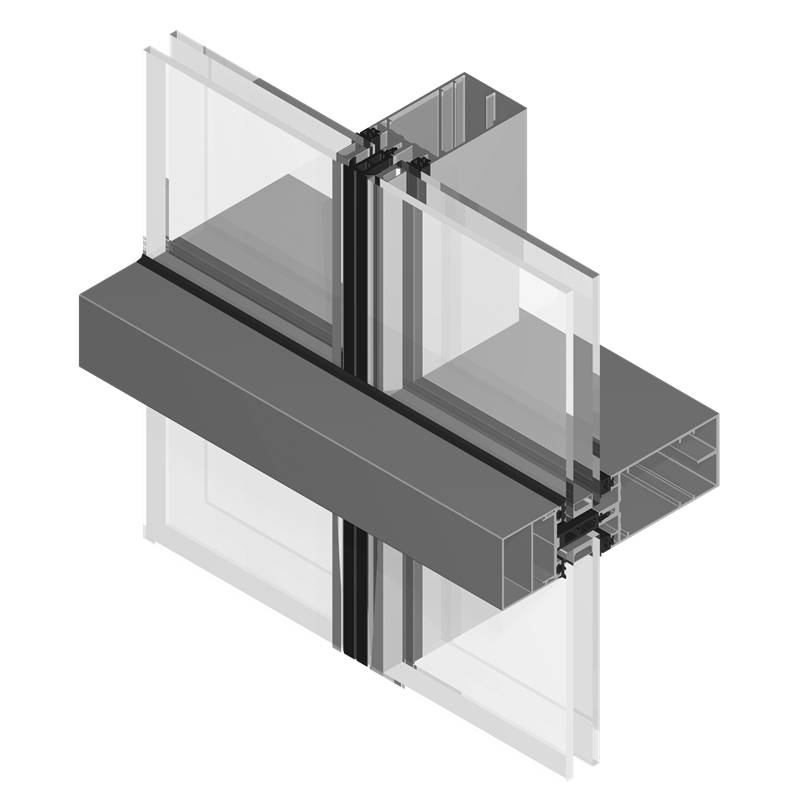

MX Trame:

Features:

  • A design option, allowing specifiers to highlight the vertical or horizontal profiles across the building envelope.
  • MX Trame Horizontale can accommodate 6 mm to 32 mm glazing as a flat façade, or faceted up to 10°.
  • Projecting aerofoil transom caps add depth to the facade whilst slender face trim gaskets, which are flush with the front face of the infill, soften the corresponding vertical or horizontal sections.

MX Acoustic:

Features:

  • MX Acoustic is an option for both MX Visible Grid and MX Trame Horizontale for applications where additional acoustic performance is required.

MX SSG Structural Sealant Glazing:

Features:

  • MX SSG responds to the increasing demand for structural glazing to create striking flush glass facades with visibly less aluminium.
  • MX SSG can accommodate 6 mm, 28 mm or 34 mm structural sealant glazing.
  • Available as a flat facade or faceted up to 3°.

Construction:

  • An ethylene propylene diene monomer (EPDM) internal compression gasket makes the system fully air tight. There is a choice of a frame gasket or over-sized vulcanised corners fitted on site.
  • Carrier frames are fitted onto the curtain wall grid using the ‘hook and toggle’ system.
  • The carrier frames are mitre jointed using an epoxy-bonded and mechanically crimped corner cleat for a robust construction.

MX 62:

Features:

  • MX 62 offers a deeper glazing rebate to provide additional glass cover accommodating building movement.

General information
Material

Aluminium profiles: Extruded from alloys 6005 T6, 6063 T6 or 6060 T5 to BS EN 12020, BS EN 573-3, BS EN 515 and BS EN 775-1 to 9

Accessories: Cast from Zamak 5 or A-S9G03 to BS EN 12844

Frame gaskets: Structural silicone certifiably compatible EPDM

Polyamide thermal breaks: Extruded from PA6-6 (0.25 FV)

Screws: Torx head austenitic stainless steel

Uniclass 2015 Stick curtain walling systems (Ss_25_10_20_85)
Specification data
Product Reference

MX Visible Grid

MX Trame

MX Acoustic

MX SSG Structural Sealant Glazing

MX 62

Internal framing member -
Material

Aluminium alloy

To BS EN 755-9: 2016, Specification 6060 T66 Tolerances in accordance with EN12020.

Finish

Anolok anodized

Natural anodizsed

Polyester powder-coated

Colour

Insert requirements.

Minimum film thickness

40 microns

60 microns

Marine grade

External cover cap -
Material

Aluminium alloy

To BS EN 755-9: 2016, Specification 6060 T66 Tolerances in accordance with EN12020.

Finish

Bronze anodized

Insert requirements.

Natural anodized

Polyester powder-coated

Colour

Insert requirements.

Minimum film thickness

40 microns

60 microns

Marine grade

Glazing

Insulating glass units

Single glazed panes

Thickness

6–11 mm

28–42 mm

Glazing system

Gaskets, cover plate fixed

Structural sealant, four side bonded

Incorporated components

FY65 Windows

MX Concealed Vents

PY55 Doors

STii Doors

Standard product features

Type:

Stick system, drained and pressure equalized or structural sealant glazing system.

Construction:

  • Mullions and transoms are square cut and assembled using a combination of factory-fitted, cast face-fixed junction spigots and concealed anti-rotation spigots, or by transom blocks.
  • The mullion jointing uses a specially designed sleeve spigot for each mullion for a high quality joint.
  • The system is zone drained and pressure equalized to ensure performance and drainage efficiency.

Material:

  • Aluminium profiles: Extruded from alloys 6005 T6, 6063 T6 or 6060 T5 to BS EN 12020, BS EN 573-3, BS EN 515 and BS EN 775-1 to 9.
  • Accessories: Cast from Zamak 5 or A-S9G03 to BS EN 12844.
  • Frame gaskets: Structural silicone certifiably compatible EPDM.
  • Polyamide thermal breaks: Extruded from PA6-6 (0.25 FV).
  • Screws: Torx head austenitic stainless steel.

Product Options

Finish/ Colour:

Consult with Technal for availability of colours and to obtain samples.

Size and weight limitations:

Consult with Technal for details.

Minimum film thickness:

Consult with Technal for recommendations and details.

Glazing:

  • MX Visible Grid, MX Trame: 6–32 mm.
  • MX SSG: 6 mm, 28mm, or 34 mm.
  • MX62: 8 mm - 44 mm (concealed vents 36 mm or 42 mm).

Consult with Technal for recommendations and details of glass types and thicknesses.
