MUTO Comfort

Description

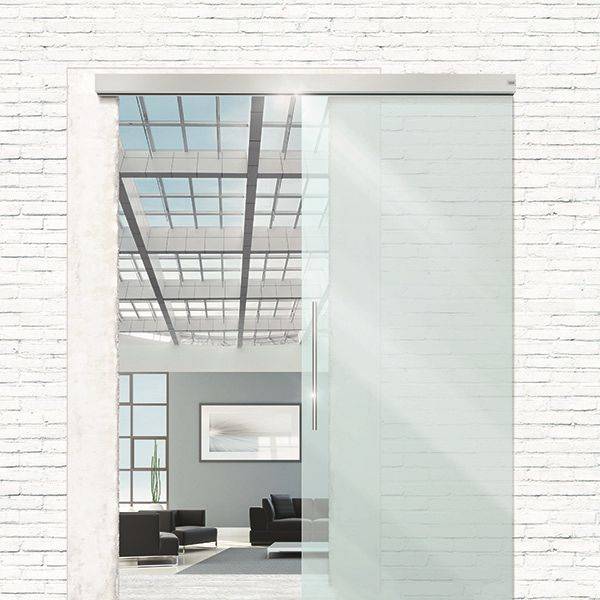

The fully integrated MUTO Comfort system is particularly suitable for glass applications with a multiplicity of functions delivered by equipment that stays completely out of sight. The product can also be adapted to timber solutions. The MUTO system impresses by virtue of its compact elegance and the wide func­tionality it offers, enabling enhanced user-friendliness in a sliding door system: a power-free self-closing, damping mechanism, inte­grated electromechanical lock and a status indicator enabling the door to be monitored from anywhere in the building. The system is also available in Synchro and Telescopic versions. The design style implemented in the MUTO system is con­spicuously compact with the complex technology cleverly concealed within the track rail.

General information

Uniclass 2015

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding folding doorsets

Product Reference

MUTO Comfort M DORMOTION 50

MUTO Comfort L 80

MUTO Comfort L DORMOTION 80

MUTO Comfort XL 150

MUTO Comfort XL DORMOTION 80/ 150

MUTO Comfort XL Self-Closing

MUTO Comfort XL Telescopic

Type

Single

Double

Profile colour

Niro N 700 Satin

Silver N 600 Satin

White P 100 Semi Gloss

Standard product features

Technical characteristics:

- MUTO Comfort XL DORMOTION 80/ 150:

  • Track dimensions (w x h): 72 x 69 mm.
  • Track dimensions (with optional side panel, w x h): 91 x 69 mm.
  • Gap to wall (glass door, maximum): 20 mm.
  • Gap to wall (timber door ≤ 30mm thickness, maximum): 7 mm.
  • Gap to wall (timber door > 30mm thickness, maximum): 7 mm.
  • Glass thickness: 8–13.5 mm.
  • Material thickness (timber): ≤ 50 mm.
  • Permissible installations: Wall, glass, ceiling.
  • Height: ≤ 3000 mm.
  • Width: ≤ 2500 mm.
  • Corrosion (to EN 1670): Class 4.
  • Door cycles: 200 000.
  • Maximum door weight (single/ double): 150/ 2 x 150 kg.

- MUTO Comfort XL Self-Closing:

  • Track dimensions (w x h): 100 x 69 mm.
  • Track dimensions (with optional side panel, w x h): 119 x 69 mm.
  • Gap to wall (glass door, maximum): 20 mm.
  • Gap to wall (timber door ≤ 30mm thickness, maximum): 7 mm.
  • Gap to wall (timber door > 30mm thickness, maximum): 7 mm.
  • Glass thickness: 8–13.5 mm.
  • Material thickness (timber): ≤ 50 mm.
  • Permissible installations: Wall, glass, ceiling.
  • Height: ≤ 3000 mm.
  • Width: ≤ 1500 mm.
  • Corrosion (to EN 1670): Class 4.
  • Door cycles: 200 000.
  • Maximum door weight (single/ double): 120/ 2 x 120 kg.

- MUTO Comfort XL Telescopic:

  • Track dimensions (w x h): 125 x 69 mm.
  • Track dimensions (with optional side panel, w x h): 144 x 69 mm.
  • Gap to wall (glass door, maximum): 17 mm.
  • Gap to wall (timber door ≤ 30mm thickness, maximum): 7 mm.
  • Gap to wall (timber door > 30mm thickness, maximum): 7 mm.
  • Glass thickness: 8–13.5 mm.
  • Material thickness (timber): ≤ 50 mm.
  • Permissible installations: Wall, glass, ceiling.
  • Height: ≤ 3000 mm.
  • Width: ≤ 1200 mm.
  • Corrosion (to EN 1670): Class 4.
  • Door cycles: 200 000.
  • Maximum door weight (single/ double): 2 x 80/ 4 x 80 kg.

- MUTO Comfort XL 150:

  • Track dimensions (w x h): 62 x 69 mm.
  • Track dimensions (with optional side panel, w x h): 81 x 69 mm.
  • Gap to wall (glass door, maximum): 20 mm.
  • Gap to wall (timber door ≤ 30mm thickness, maximum): 7 mm.
  • Gap to wall (timber door > 30mm thickness, maximum): 7 mm.
  • Glass thickness: 8–13.5 mm.
  • Material thickness (timber): ≤ 50 mm.
  • Permissible installations: Wall, glass, ceiling.
  • Height: ≤ 3000 mm.
  • Width: ≤ 2500 mm.
  • Corrosion (to EN 1670): Class 4.
  • Door cycles: ≥ 100 000.
  • Maximum door weight (single/ double): 150/ 2 x 150 kg.

- MUTO Comfort L DORMOTION 80:

  • Track dimensions (w x h): 71 x 58 mm.
  • Track dimensions (with optional side panel, w x h): 90 x 58 mm.
  • Gap to wall (glass door, maximum): 17 mm.
  • Gap to wall (timber door ≤ 30mm thickness, maximum): 7 mm.
  • Gap to wall (timber door > 30mm thickness, maximum): 7 mm.
  • Glass thickness: 8–13.5 mm.
  • Material thickness (timber): ≤ 50 mm.
  • Permissible installations: Wall, glass, ceiling.
  • Height: ≤ 3000 mm.
  • Width: ≤ 2000 mm.
  • Corrosion (to EN 1670): Class 4.
  • Door cycles: ≥ 100 000.
  • Maximum door weight (single/ double): 80/ 2 x 80 kg.

- MUTO Comfort L 80:

  • Track dimensions (w x h): 61 x 58 mm.
  • Track dimensions (with optional side panel, w x h): 80 x 58 mm.
  • Gap to wall (glass door, maximum): 17 mm.
  • Gap to wall (timber door ≤ 30mm thickness, maximum): 7 mm.
  • Gap to wall (timber door > 30mm thickness, maximum): 7 mm.
  • Glass thickness: 8–13.5 mm.
  • Material thickness (timber): ≤ 50 mm.
  • Permissible installations: Wall, glass, ceiling.
  • Height: ≤ 3000 mm.
  • Width: ≤ 2000 mm.
  • Corrosion (to EN 1670): Class 4.
  • Door cycles: ≥ 100 000.
  • Maximum door weight (single/ double): 80/ 2 x 80 kg.

- MUTO Comfort M DORMOTION 50:

  • Track dimensions (w x h): 57 x 58 mm.
  • Gap to wall (glass door, maximum): 21.5–23.5 mm.
  • Gap to wall (timber door ≤ 30mm thickness, maximum): 7 mm.
  • Gap to wall (timber door > 30mm thickness, maximum): 7 mm.
  • Glass thickness: 8–10 mm.
  • Material thickness (timber): ≤ 50 mm.
  • Permissible installations: Wall, ceiling.
  • Height: ≤ 2500 mm.
  • Width: ≤ 1300 mm.
  • Corrosion (to EN 1670): Class 2.
  • Door cycles: ≥ 100 000.
  • Maximum door weight (single): 50 kg.
