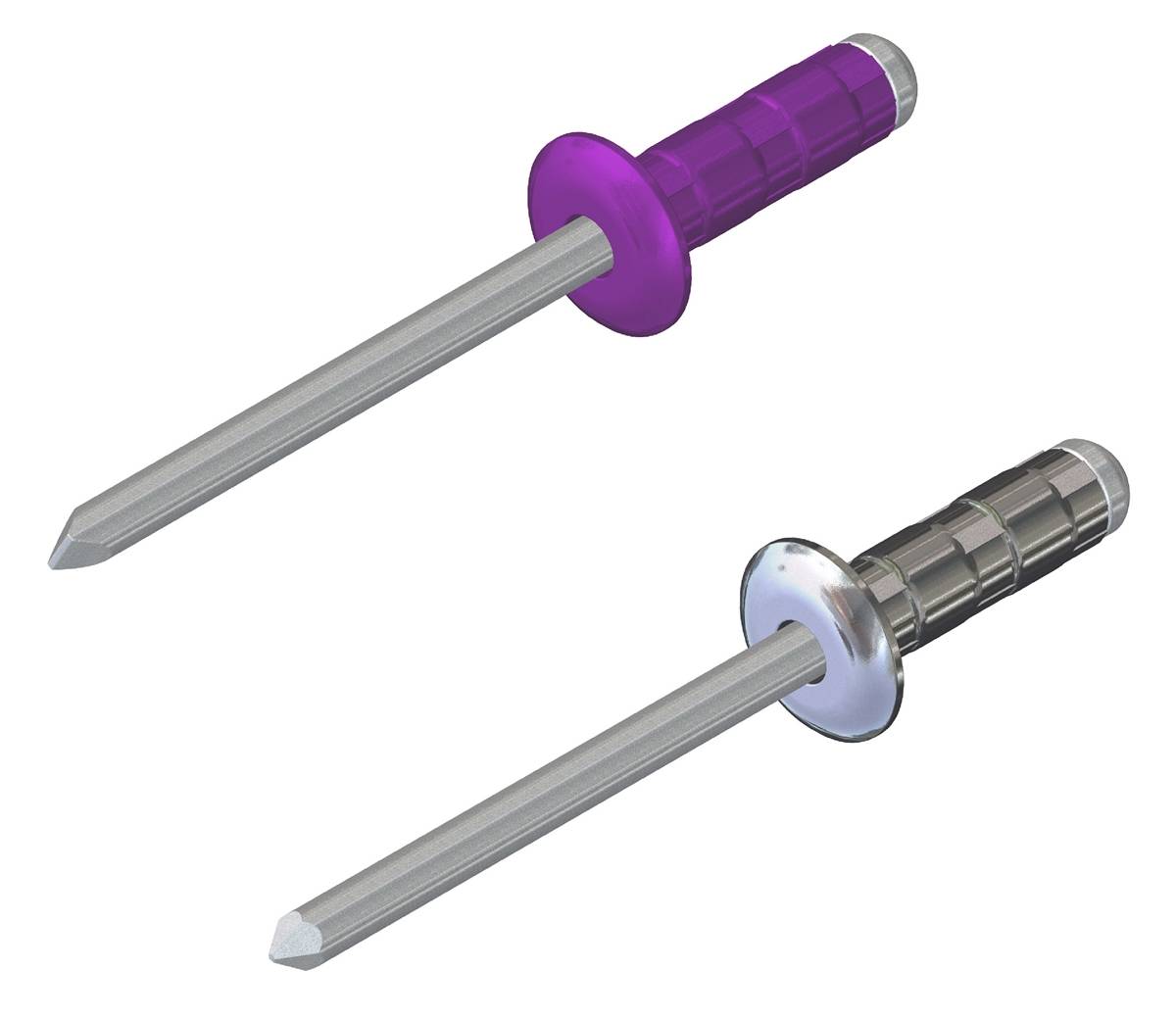

Multirange Aluminium Rivets
Verified by manufacturer 2 months ago
Multirange aluminium rivets.
Application
- Sheeting and cladding
- Facade and rainscreen
- General construction
Description
Multirange aluminium rivets.
Features and benefits:
- Allows one rivet to fasten various thicknesses
- Manufactured from high grade aluminium
- Available in a wide range of RAL and BS colours
- Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems
Drill size:
4.9 mm.
Head diameter:
9.5 mm.
Mandrel diameter:
2.8 mm.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Lacquered Mill |
Material | Aluminium |
Length | 10 mm 15 mm 17 mm 25 mm 35 mm |
Width | 4.8 mm |
Uniclass | |
CAWS | H31/10 Metal H31/110 Metal H31/120 Metal H32/110 Plastics H32/120 Plastics H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel H67/110 Metal roof tiling H67/120 Metal roof tiling with counterbattens H67/130 Metal vertical tiling H67/3 Metal roof tiling H67/5 Metal roof tiling H67/8 Metal vertical tiling |
Product range |
Specification data - Blind (pop) rivets
Material | Aluminium. |
Form | R-AC-LAC-4.8 x 15. |
Size | See 'Form' above. |
Colour | Guidance for specification option: Consult manufacturer and insert RAL or BS colour requirement. |
Sustainability data
Material | Aluminium |
