Multipoint Locking System
Description

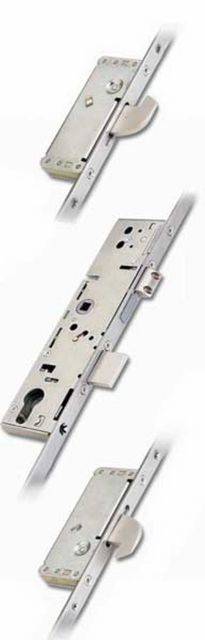

Multipoint locking sets. Face plates have a central lock with latchbolt and deadbolt, and a bolt unit at both the top and bottom with either hookbolt or linear bolt.

Accepts most Europrofile cylinders, which must be ordered separately.

Not suitable for rebated doors.

General information

Uniclass 2015

Pr_30_36_08_84 Special function door locksPrimary

CAWS

P21/26 Special function door locks

P21/530 Special function door locks

Specification data - Special function door locks

Product Reference

Multipoint Locking System

Type

911.50.780

2100 x 16 mm front plate, 35 mm backset, hookbolts top and bottom.

911.50.781

2250 x 16 mm front plate, 35 mm backset, hookbolts top and bottom.

911.50.782

2100 x 16 mm front plate, 45 mm backset, hookbolts top and bottom.

911.50.783

2100 x 20 mm front plate, 45 mm backset, hookbolts top and bottom.

911.50.784

2250 x 16 mm front plate, 45 mm backset, hookbolts top and bottom.

911.50.785

2250 x 20 mm front plate, 45 mm backset, hookbolts top and bottom.

911.50.786

2250 x 16 mm front plate, 35 mm backset, linear bolts top and bottom.

911.50.787

2250 x 16 mm front plate, 45 mm backset, linear bolts top and bottom.

911.50.788

2250 x 20 mm front plate, 45 mm backset, linear bolts top and bottom.

As schedule ___

Accessories

None

911.50.790

Mortice cylinder slave unit, 35 mm backset.

911.50.791

Mortice cylinder slave unit, 45 mm backset.

911.50.792

Adjustable keep for top or bottom bolts.

911.50.793

Non-adjustable keep for top or bottom bolts.

911.50.794

Adjustable keep for centre bolts.

911.50.795

Non-adjustable keep for top or bottom bolts.

911.50.796

Cylinder guard for europrofile cylinders.

911.50.797

Security shoot bolt.

911.50.798

Corner keep for security shoot bolt.

911.50.799

Double keep for secuity shoot bolts.

As schedule ___

Standard product features

Case:

  • Steel, BZP CR3 passivated.
  • 14.5 mm thick.

Front plate:

  • One piece, square.
  • Steel, BZP CR3 passivated.

Latchbolt:

  • Brass, satin chrome plated.
  • Reversible.

Follower:

  • 8 mm brass.
  • For use 92 mm unsprung lever handles.

Product Options

Top and bottom bolts:

– Hookbolts:

  • Forged brass, satin chrome plated.
  • 28 mm overall throw.

– Linear bolts:

  • Forged brass, satin chrome plated.
  • 22 mm overall throw.

Accessories:

Keeps: One centre keep and two bolt keeps required for each multipoint unit.

Third party certifications
  • PAS 23/ PAS 24
