Multi 8 Zone Detection Cable (Standard and High Sensitivity) - Water Sensing Cable

Verified by manufacturer 3 months ago

Standard

Andel Ltd Variant:

Water sensing cable that allows up to eight separately reporting leak detection zones from a single cable.

Jump to:
+44 (0)1484 845000 Website

Application

Suitable applications for the Standard cable include:

  • Below raised floors.
  • Above suspended ceilings.
  • Run in drip trays.
  • Laid around the base of plant, apparatus or tank.
  • Laid in loops or wave pattern for general monitoring of larger areas.
  • Attached to pipework outside lagging.

Suitable applications for the High Sensitivity cable include:

  • Attached to the underside of pipes outside lagging.
  • Laid in drip trays and catchment troughs.
  • Fixed to soffits and ceilings.

Description

Multi 8 Zone Detection Cable is a water sensing cable that allows up to eight reporting detection zones provided from one length of cable. It complies with stringent fire, smoke and halogen tests. The zone changeover points along the cable are provided by either traditional Floodline 8-zone junction boxes or the Plug and Play system.


The sensor can be wetted and dried any number of times provided the cable is not contaminated with a substance that permanently changes its electrical characteristics. If the contamination is soluble then the cable can be removed, washed (clean water only), dried and returned to use subject to the level of contamination.


Features and benefits:

  • Up to eight detection reporting zones.
  • Zones can be between 5 m and 15 m lengths.
  • Activates with any conductive liquid anywhere along the entire length of the detection cable.
  • Can be wetted and dried multiple times.
  • Tough construction.
  • Easy installation.
  • Complies with stringent fire, smoke and halogen tests.


Standards:

  • CPR (Construction Products Regulation) Testing.
  • Under the harmonised European standard EN 50575 this cable has been tested for heat release, smoke production and flame spread in accordance with EN 50399:2011+A1:2016 and EN 60332-1-2:2004+A11:2016.
  • Tested under AVCP (Assessment and Verification of Constancy of Performance) system 3 by a notified body the cable was classified as Euroclass Dca-s2,d0 (Standard) or Euroclass Eca (High Sensitivity).

General information

Color

White

Material

Polymeric

Nylon

Shape

Other

Length

5000 mm

15000 mm

Bespoke

Width

5 mm

Warranty description

Ten year

Uniclass

Pr_75_50_48_96 Water-sensing cablesPrimary

Specification data - Water-sensing cables

Liquid to be detected

Water.

Resettability

Required.

Guidance for specification option:

If the contamination is soluble then the cable can be removed, washed (clean water only), dried and returned to use subject to the level of contamination.

Cable length

To suit the application.

Guidance for specification option:

Available between 5 and 15 m lengths. Insert requirement.

Construction

Polymeric.

Diameter

5 mm.

Fixing

Standard 6 mm tower clips, self-adhesive clips or tie- wraps.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polymeric

Nylon

Literature

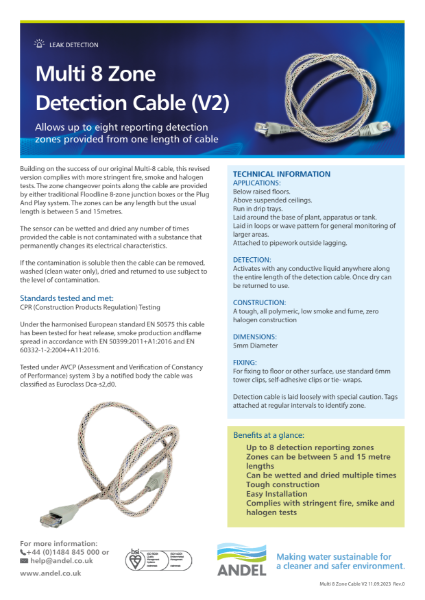

Multi 8 Zone Detection Cable (V2)

Multi 8 Zone Detection Cable (V2)

Multi 8 Zone High Sensitivity Cable

Multi 8 Zone High Sensitivity Cable
