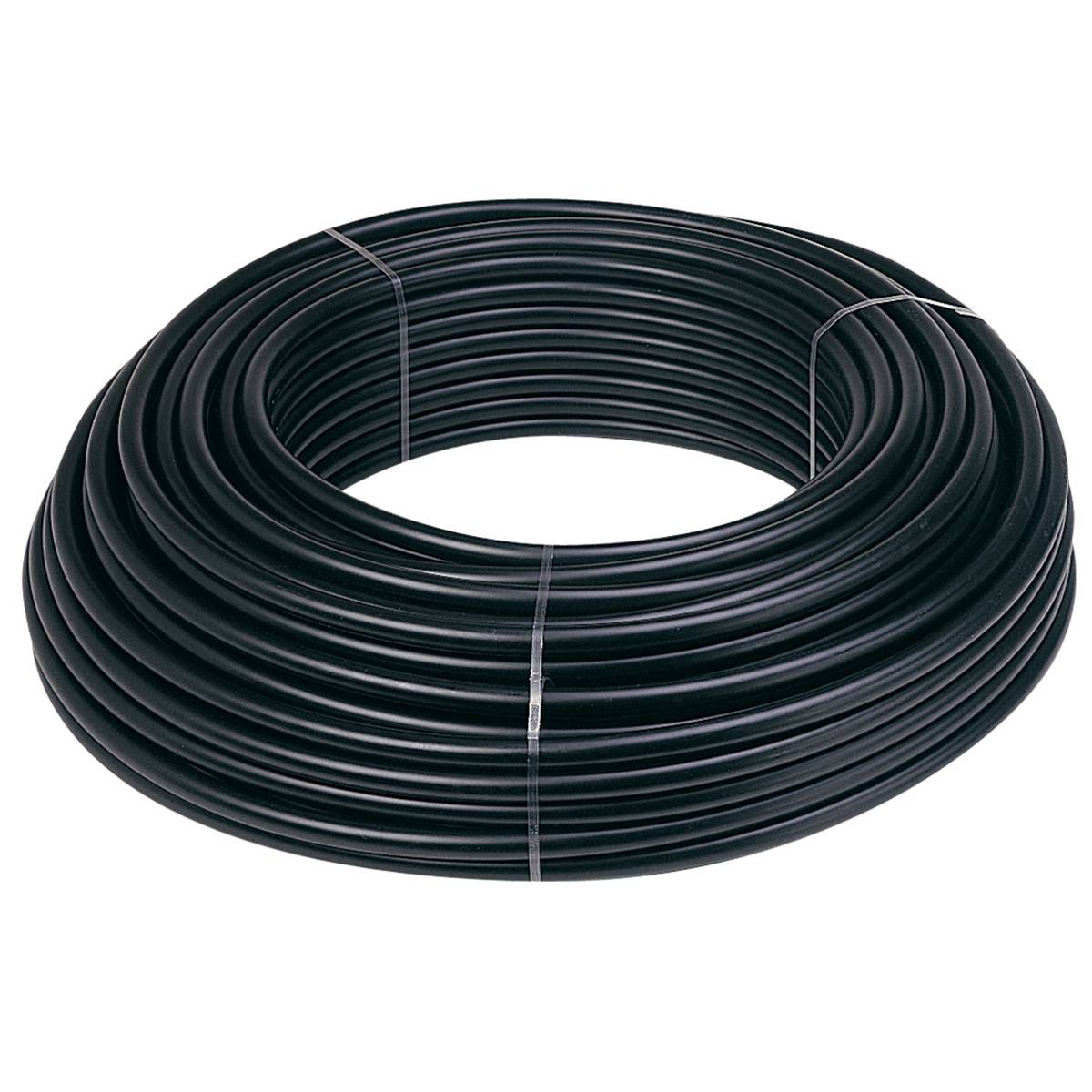

MT Supertube
Verified by manufacturer 7 days ago
MT Supertube is a LS0H, three layer heavy gauge conduit offering considerable installation time saving when compared to galvanised steel conduit.
Application
Suitable for rail, marine and tunnel applications.
Description
MT Supertube is a, LS0H, 3-layer heavy gauge conduit comprising polyethylene internal and external layers over a continuous aluminium tube that provides additional mechanical strength. MT Supertube has excellent electromagnetic interference (EMI) screening performance and is a practical and cost-saving alternative to standard galvanized conduits.
Features and benefits:
- Available in 20 or 25 mm outer diameters (OD).
- LS0H conduit.
- Excellent screening performance.
- Suitable for rail, marine and tunnel applications.
- Zero waste: available in continuous lengths of up to 100 metres, meaning fewer fittings per installation.
- Longer lengths also prevent ingress of water.
- Extra security from data interference.
- Suitable for in-screed applications.
- Withstands temperatures from –45ºC to +120ºC.
- Nail penetration: MT Supertube complies with requirements of the current version of BS 7671, BS EN 61386-1:2008.
- BS 8436 is specification for 300/ 500V screened electric cable.
General information
Color | Black White |
Finish | Gloss |
Material | Polypropylene Aluminium |
Shape | Circle |
Length | 3 mm 50 mm 100 mm |
Width | 20 mm 25 mm |
Height | 20 mm 25 mm |
Uniclass | |
CAWS | V90/342 Rigid conduit and fittings |
SKU Code | 22003WH, 22003BK, 22503WH, 22503BK, 22010BK, 22505BK |
Specification data - Rigid conduit
Classification data | |
Standards | To BS EN 61386-1 and BS EN IEC 61386-21. |
Mechanical properties | |
Resistance to bending | Rigid. |
Transport, installation and application | |
Lower temperature (minimum) | -45°C. |
Upper temperature (maximum) | 120°C. |
Electrical characteristics | With electrical continuity and insulating characteristics. Guidance for specification option: EMC/ EMI integrity can only be maintained when used with metal boxes and fittings. |
Halogen content | Halogen-free. |
Colour | Black. White. Guidance for specification option: Only, available in lengths of 3 m; consult manufacturer for more details. |
Sizes (OD) | 20 mm. Guidance for specification option: Available in 3 or 100 m lengths. 25 mm. Guidance for specification option: Available in 3 or 50 m lengths. |
Lengths | 3 m. Guidance for specification option: MT Supertube conduit. 50 m. Guidance for specification option:
100 m. Guidance for specification option:
|
Smoke generation | Low smoke. |
CompressiveStrength | 750 N. |

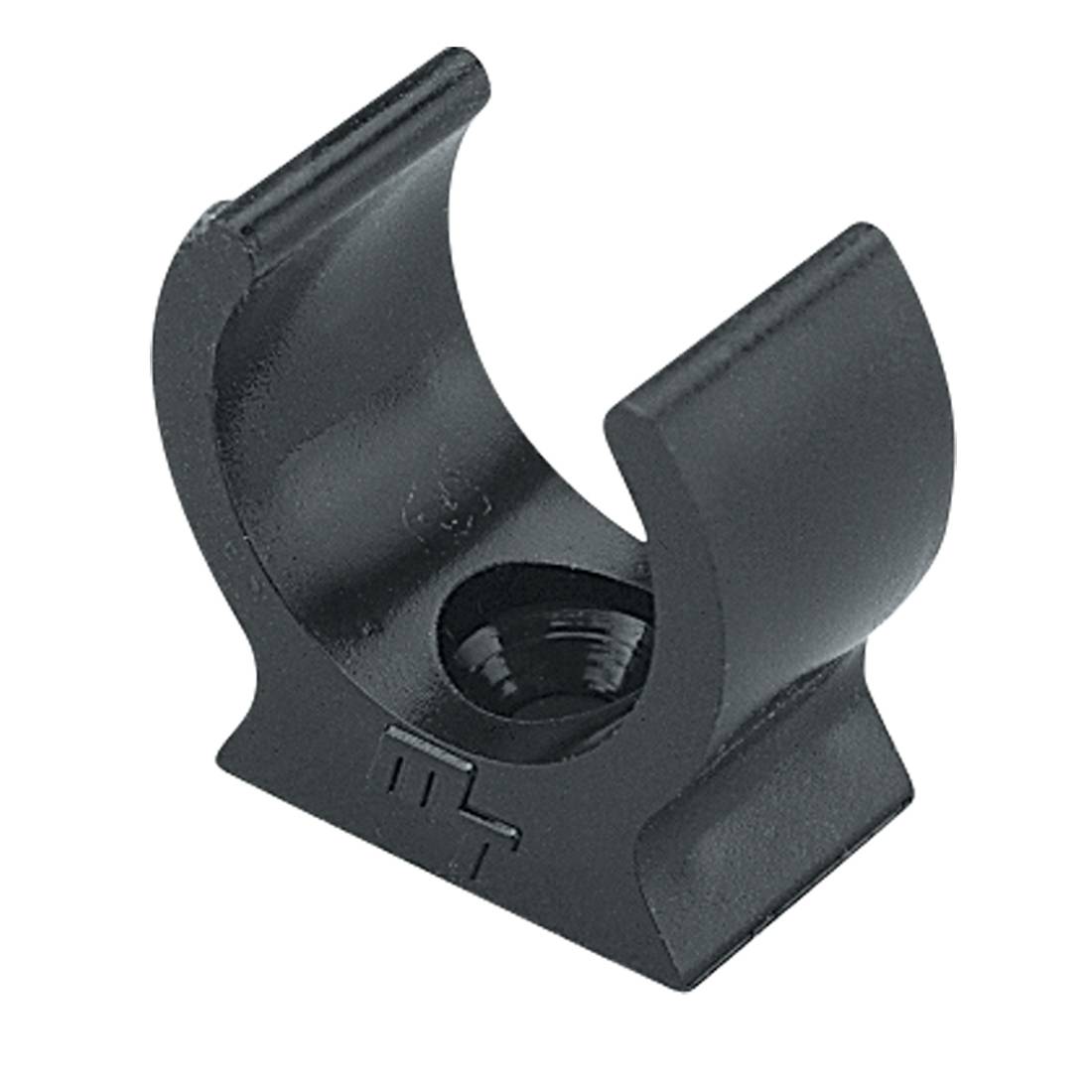

Accessories | Not required. Tube cutter. Stripping tool (pre-set). Compact tube bender Female adaptor with brass bush. Couplers. Universal connector. Metal spacer bar saddle. Terminal box. Tee box. Through box. Angle box. Flush lid. Male adaptor. Spacer bar snap saddle. Spacer bar saddle. U-clip. Inspection elbow. Inspection bend. Loop-in box. Manufacturer guidanceConsult manufacturer's literature for more details and insert requirements or omit. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polypropylene Aluminium |
Recyclability | Recyclable. |
Literature
Literature type

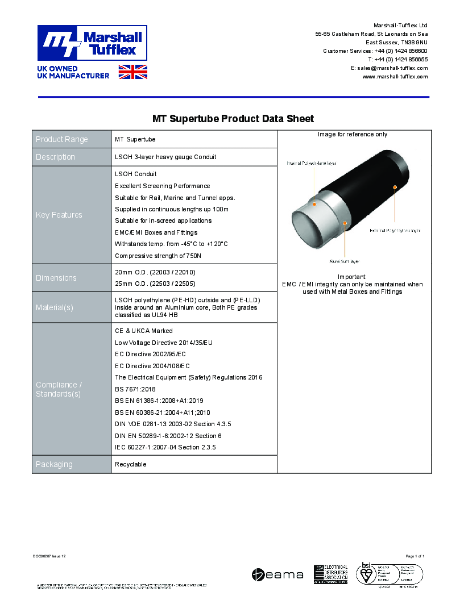

DOC00287-Supertube

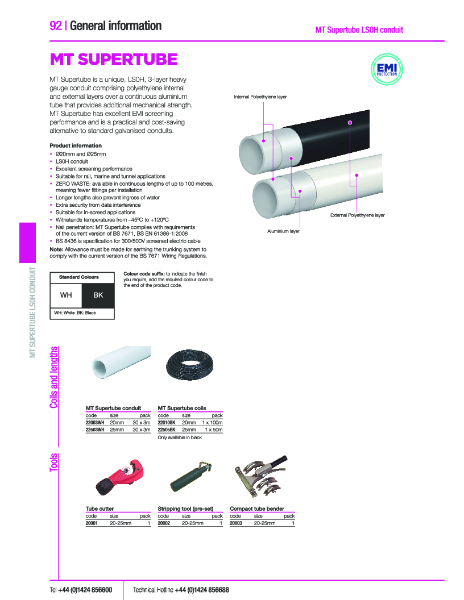

MT Supertube Catalogue
