NBS Source
I'm a manufacturer

Application

Fall protection for all types of fixed ladder. Suitable for use in virtually all environments. Operation is not affected by snow, ice or other adverse weather conditions.


Description

Cable based fall arrest system providing personal safety for individuals working on any type of fixed ladder.


Features and benefits:

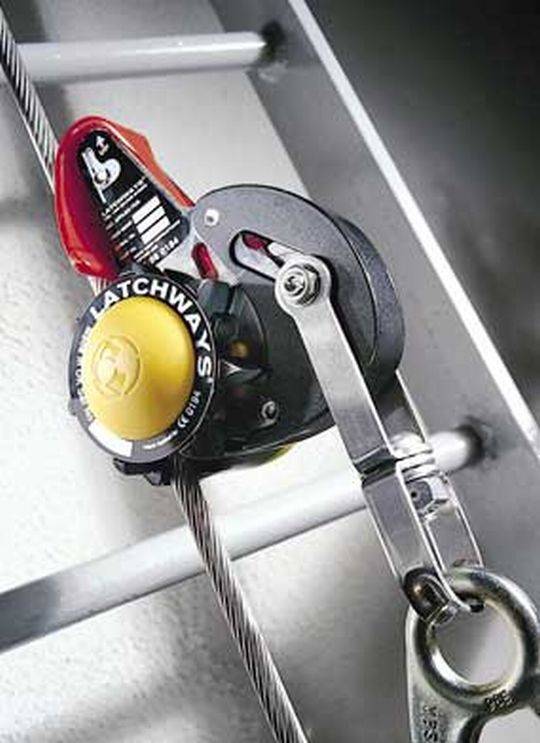

  • LadderLatch™ unit can be attached or detached at any point in the system, and rotates freely through intermediate cable guides to give users continuous hands-free protection.
  • In the event of a fall, the LadderLatch™ unit locks onto the cable and arrests the fall.
  • Intermediate cable guides should be positioned at maximum 4 metre spacing's up to a height of 55 metres, and every 2—3 metres above 55 metres.
  • Supports up to four users on a single line.
  • Suitable for retrofitting or as part of a new build.
  • Unobtrusive and lightweight.
  • Suitable for use in virtually all environments. Operation is not affected by snow, ice or other adverse weather conditions.
  • Can be integrated into a comprehensive system incorporating vertical, inclined and horizontal sections. Can be installed to follow the contours of a structure.
  • Comprehensive range of specialist components enables installation on a wide variety of towers. Contact Latchways for details.


System testing must be conducted annually by a suitably qualified installer to ensure that system certification is maintained.

General information

Color

Silver

Black

Yellow

Material

Stainless steel

Guidance for specification option:

Grade 1.4401 (316S), to BS MA 29.

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

Rolling warranty provided by installer

Manufacturer guidance

Must be certified by competent installer every 12 months

Uniclass

Ss_80_30_25_35 Guided type fall arrest systemsPrimary

CAWS

N25/10 Personal fall protection equipment

N25/210 Personal fall protection equipment

Specification data - Guided type fall arrest systems

Anchor line

Stainless steel cable.

Guidance for specification option:

7 x 7 stainless steel cable, grade 1.4401 (316S), to BS MA 29.

Mounting

Rung mounted.

Stile mounted.

Accessories

Intermediate cable guides at maximum 4 m spacing.

Intermediate cable guides at 2–3 m spacing above height of 55 m.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom
