MS40 – Battery Charger - Power Supply
Verified by manufacturer 5 months ago
Certificate of constancy of performance
Certificate type
Back up power supply.
Application
Rack mounted back up power supply.
Description
AES battery chargers associated with batteries allow backup power for safety sound installations for the evacuation of buildings.
Features and benefits:
- Maximum current for all outputs is 40 A.
- Controls the presence and impedance of the battery (aging).
- Protects the battery from temperature variations and deep discharges.
- Reports of alarms on dry contacts and locally.
- Lightweight.
- Quick and simple installation.
- In normal operation mode: the BPS power supply controls and recharges the batteries and keeps them charged from the power supply. It can provide the sound security system with standby current.
- In security operation mode: the total operating current (including the current of the amplifiers of the sound security system) is supplied by the batteries.
- Complies to EN 54-4 and several EC directives: CPD (in compliance with EN 54-4/A2), LVD, EMC, WEEE and RoHS.
General information
Color | Black Grey |
Finish | Matt |
Material | Metal |
Shape | Rectangle |
Length | 89 mm Manufacturer guidanceDepth. |
Width | 483 mm |
Height | 395 mm |
Warranty description | Other Guidance for specification option: Guaranteed for 24 (twenty four) from date of delivery. The battery is not included in the warranty. |
Uniclass | |
CAWS | W53/380 Power supply units W53/380 Power supply units |
Specification data - Voice alarm power supply units
Standard | To BS EN 54-4. |
Rated voltage | 195–264 V a.c.Guidance for specification option: 50–60 Hz. |
Output voltage | 24 V d.c.Guidance for specification option: Floating voltage aet at half-load and at 25°C: 27.2 V (+/- 0.5%). |
Battery charger | |
Controls | |
Display type | LEDs mounted on front panel. |
Display the following conditions | LED Power Default. |
Enclosure | |
Material | Steel. |
Finish | Guidance for specification option: Consult manufacturer and insert requirements. |
Colour | Guidance for specification option: Consult manufacturer and insert requirements. |
Environmental requirements | Operating temperature -10 to +45°C at 100% of load; -10 to +55°C at 75% of load. |
Mounting method | Rack. |
Current | 1 A @ 195 V a.c. Guidance for specification option: Breaker Circuit (D curve) need to be provided Upstream. Manufacturer guidancePower current. |
Maximum current usage | 40 A. Manufacturer guidanceMaximum current for all outputs. |
Battery capacity | Between 24 and 110 Ah. |
Dimensions | 483 x 395 x 89 mm. Manufacturer guidanceWidth x depth x height. |
Weight | 3.1 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Material | Metal |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Certificate of constancy of performance
MS-40 CPR
Literature

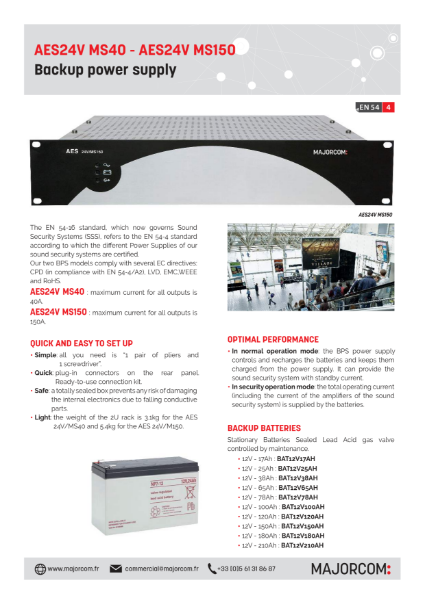

MS40 – Battery Charger
