NBS Source

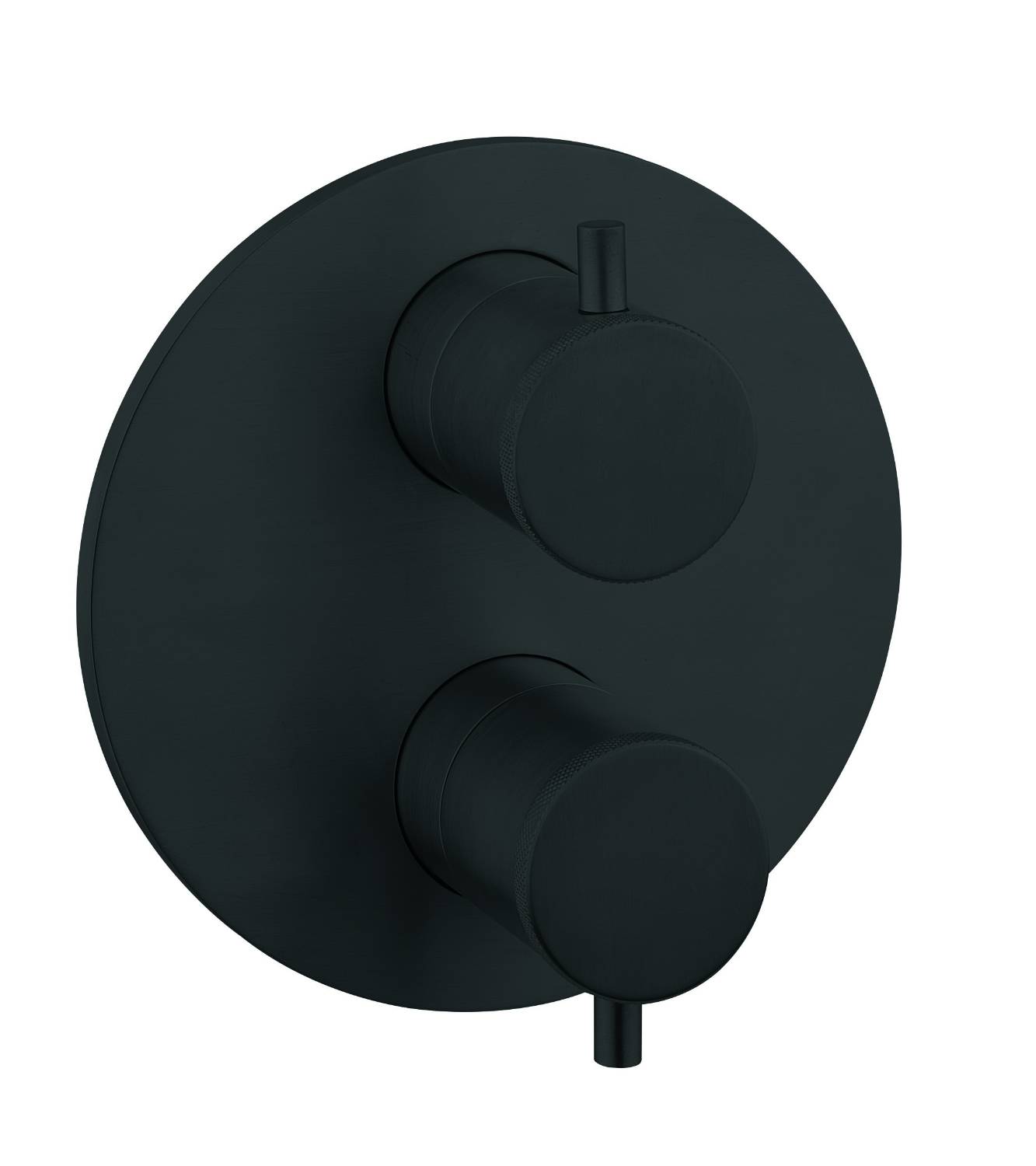

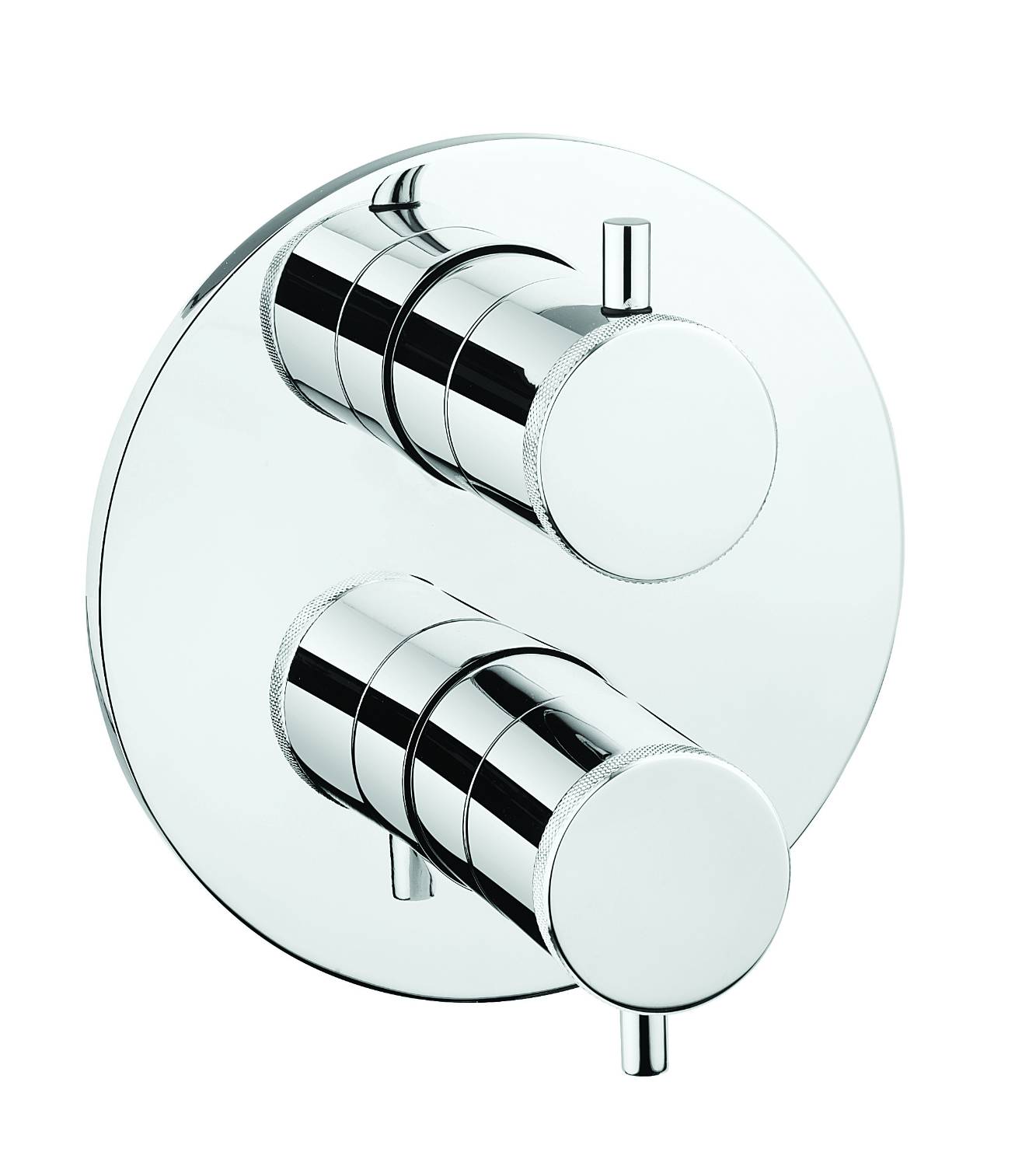

MPRO Industrial Crossbox Trimsets
Compare variants

Description

Trimsets with an option of one, two or three outlets and available in a range of finishes.


Features and benefits:

  • Super slim 60 mm minimum installation depths requires reduced solid wall preparation for quicker installation time.
  • Front or rear mounting options increase ease installation and flexibility.
  • Simple two stage fixing allows installation of in-wall components and final trim separately reducing possible on site damage.
  • 'Flush-block' testing plate included for easy pressure testing.
  • Easy fix second stage trim sets reduce installation times.
  • Built in, 'Easy-switch' thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round.
  • Improved flow dynamics allow 90-degree elbows to be fitted directly to outlets to create a more compact piping footprint.
  • Available in 1,2 and 3 Outlet options: PRICB1000 - 1 Outlet PRICB1500 - 2 Outlet PRICB2500 - 3 Outlet.

General information

Shape

Circle

Color

Silver

Bronze

Black

Finish

Chrome

Unlacquered

Material

Brass

WarrantyDescription

15 year

15 years when registered; five year on cartridges.

Size

150 mm

Uniclass

Pr_40_20_87_80 Shower thermostatic valvesPrimary

CAWS

N13/40 Shower units

N13/45 Wet room showers

N13/375 Shower units

N13/377 Wet room showers

Specification data - Shower thermostatic valves Enhanced data

Form

Concealed wall-mounted thermostatic shower mixer valve.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Flow rate (maximum)

26.6 L/ min at 3 bar.

Outlets

One outlet.

Orientation

Recessed, wall mounted.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

1

Download now from NBS National BIM Library
