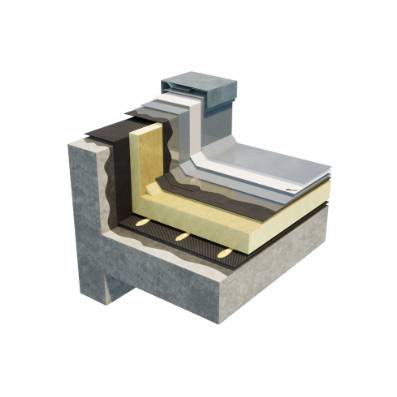

MOY Enkopur Liquid Applied Warm Roofing System - Weatherproofing & Waterproofing
Verified by manufacturer 1 month ago
BBA Agrément Certificate
Certificate type
UK Technical Assessment (UKTA)
Certificate type
PUR liquid applied warm roofing system.
Application
Suitable for roof surfaces, balconies, terraces, connections and penetrations. Suitable not only for concrete substrates, screeds and bituminous roof surfaces but also for film and metal roofing, especially in areas where stagnant water may occur for extended periods of time, e.g. in gutters or fluctuating level zones.
Description
A seamless, highly elastic, water vapour diffusion permeable and weatherproof waterproofing system for roof surfaces, balconies, terraces, connections and penetrations, proven over many years and permanently reliable in conjunction with an Enke Polyflex fleece insert.
Enkopur is fully self-curing as a result of the humidity of the air and exhibits superb adhesion to the surfaces found on site.
Its excellent weather resistance and ageing stability is attained by using special PUR prepolymers. Enkopur offers outstanding permanent flexibility and embrittles neither with age nor at extremely low temperatures (permanently elastic down to below –35°C).
The exceptionally good water vapour permeability with a diffusion factor of around 1550μ allows any residual moisture to dry out over the course of time.
The moisture-curing properties of Enkopur ensure rapid rain fastness.
Whilst Enkopur can be included in compliant BROOF (t4) systems, always check with MOY Technical Services for the latest information on testing carried out. British Board of Agrement (BBA) certified, CE marked.
General information
Color | Grey Guidance for specification option: Silver Grey, Castle Grey or Anthracite Grey. |
Material | Polyurethane (PUR) |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | J31/120 Warm deck roof coating J31/10 Warm deck roof coating |
Specification data - Liquid-applied warm roof covering systems
Preparation | |
Horizontal work | MOY SA Primer L.MOY SA Spray Primer. |
Skirtings and vertical work | MOY SA Primer L.MOY SA Spray Primer. |
Air and vapour control layer | MOY PE AVCL.Guidance for specification option: Loose laid and only suitable when the insulation is mechanically fixed. MOY Sticker Sanded 3 mm.Guidance for specification option: For bonded insulation a self-adhesive AVCL should be specified. MOY Sticker Sanded AL (Foilcore).Guidance for specification option: For bonded insulation a self-adhesive AVCL should be specified. MOY Sticker Helast VB 500 SA.Guidance for specification option: For bonded insulation a self-adhesive AVCL should be specified. MOY Elotene DSN SA.Guidance for specification option: For bonded insulation a self-adhesive AVCL should be specified. Manufacturer guidanceAVCL is either loose laid or self adhesive (SA). For high humidity buildings (> Class 3 to BS 5250) a foil lined or foil faced product should be used. |
Insulation | |
Type | MOY Paratherm G PIR insulation, tapered.Guidance for specification option: Consult manufacturer for details and insert requirements including required fall. Board sizes (l x w x t):
Paratherm G™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board and is suitable with MOY’s fully adhered single ply, partially bonded built-up felt and cold liquid applied waterproofing (with carrier membrane) systems. MOY Paratherm G PIR insulation, uniform.Guidance for specification option: Consult manufacturer for details and insert requirements. Board sizes (l x w x t):
Paratherm G™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board and is suitable with MOY’s fully adhered single ply, partially bonded built-up felt and cold liquid applied waterproofing (with carrier membrane) systems. |
Fixing | MOY PU Insulation adhesive.MOY PU Spray-applied insulation adhesive.MOY tube fasteners. |
Carrier membrane | |
Type | MOY Sticker Sanded 3 mmMOY Sticker Helast VB 500 SA.MOY Elotene DSN SA.Guidance for specification option: Prime surface. Manufacturer guidancePrimer will be required for all types; see above for options. |
Liquid-applied waterproofing | |
Type | MOY Enkopur. Cold applied liquid coating. |
Reinforcement | MOY Enke Polyflex Fleece. Embedded into coating.Guidance for specification option: Thermally fixed, needled polyester fleece featuring good flexibility and tear resistance in longitudinal and transverse directions. Enke Polyflex fleece has good mechanical properties and is ideally suited to being saturated with any of the Enke coatings. The special texture of this type of fleece allows true-to-contour waterproofing of even extremely uneven substrates. Rolls with a length of 50 m and a width of 100, 150, 200, 300, 500 or 1000 mm. |
System accessories | MOY RWOs.GRP trims.Termination bars.Mechanical fixings.MOY expansion joint strips.MOY PP3 Roof-Nek and penetration devices.MOY roof box penetration units.MOYLITE rooflights.Pre-formed Polyflex fleece corner and pipe details. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polyurethane (PUR) |
Recyclability | Where membranes have reached the end of their serviceable life, they can usually be utilised in new roof overlays. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Literature
MOY Services Brochure
Moy Corporate Brochure
MOY Liquid Waterproofing Brochure

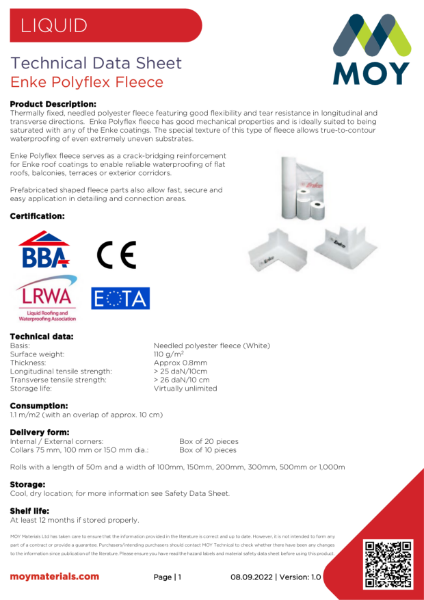

MOY Enke Polyflex Fleece Reinforcement
MOY Enkopur 1K [PU] Cold Applied Waterproofing
