Mounting Base for SCI Sensors - White
Verified by manufacturer 4 months ago
ISO 9001 Quality Management
Certificate type
Certificate of Approval
Certificate type
A SCI sensor mounting base fully compatible with Hochiki’s ESP range of SCI sensors.
Application
Fire detection systems:
- Schools & Universities
- Multiple Occupancy Accommodation
- Hospitals / Care Homes
- Office Buildings
- Airports
- Rail / Tube Stations
- Hotels / Pubs & Hospitality
- Retail / Supermarkets
- Factory / manufacturing plants
- Hazardous Areas
- Off-shore
Description

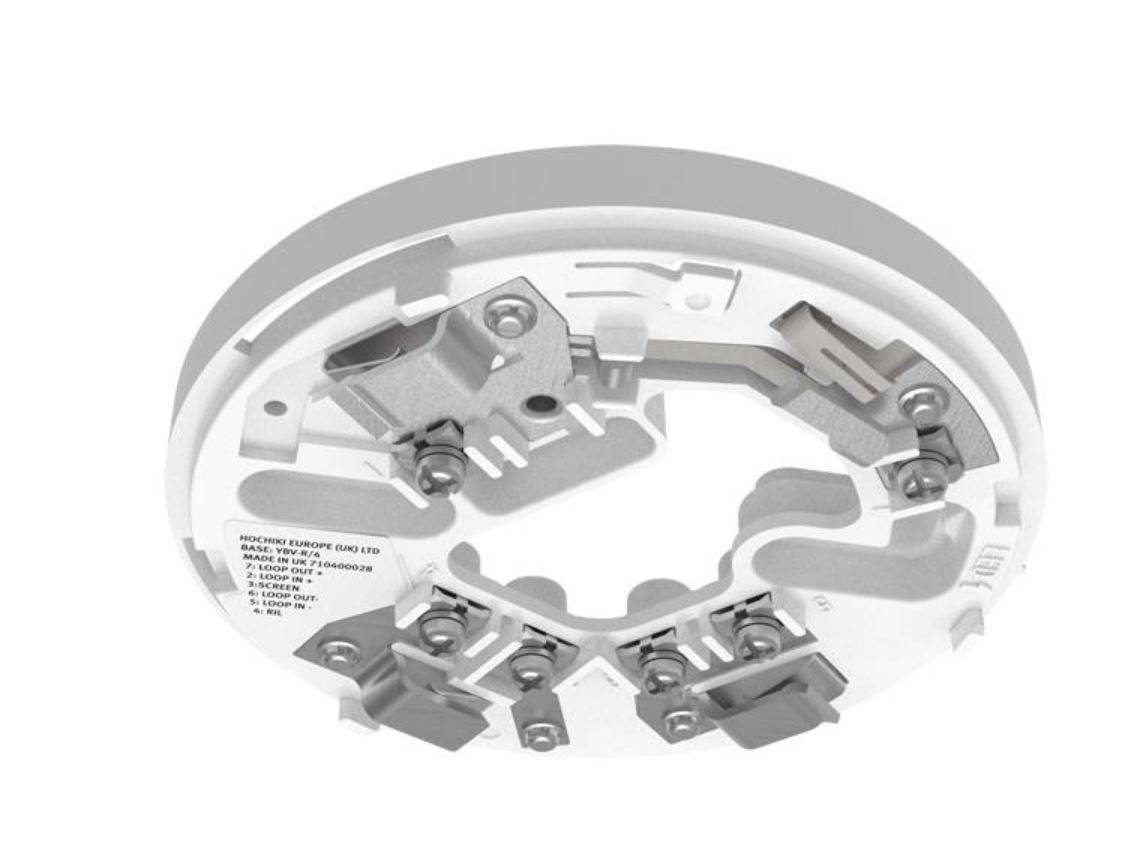

Model YBV-R/4 is a SCI Sensor Mounting Base, which is fully compatible with Hochiki’s ESP range of SCI sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote
LED if required.
Please note, this base does not provide short-circuit isolation on its own, but allows the SCI sensor range to operate with SCI functionality.
Features and benefits:
- Electronics free.
- Stainless steel contacts.
- Takes 2.5 mm² cables.
- Slim profile, only 8 mm.
- Rugged wiring contacts.
- Facility for remote indicator.
- Quick connection via square cable clamps.
- Fourth terminal allows for SCI functionality of sensors.
- Fixing centres: 48–74 mm.
General information
Color | White |
Finish | Gloss |
Material | Plastic |
Shape | Circle |
Length | 8 mm Guidance for specification option: Diameter |
Width | 100 mm |
Height | 100 mm |
Warranty description | Three year |
Uniclass | |
CAWS | W90/328 Point smoke detectors W90/327 Point heat detectors W90/326 Point flame detectors |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Plastic |
Manufacturing plant location | |
Expected Life | Ten year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
ISO 9001 Quality Management
Certificate of Management System Registration - ISO 9001:2015 - Quality Management Systems
Certificate of Approval

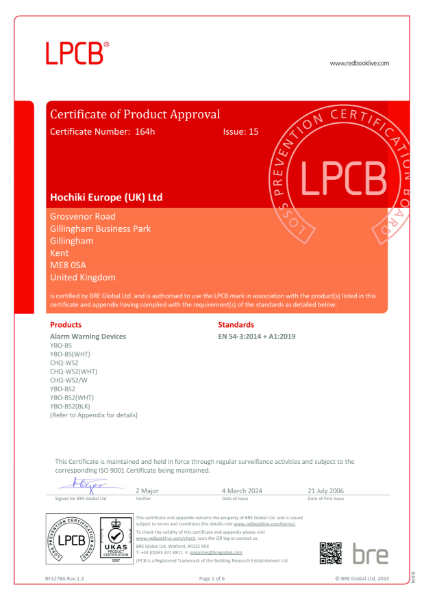

Certificate of Product Approval - EN 54-3 and EN54-23 | Products: CHQ-WSB2, YBO-BSB2 and YBO-BSB3 | Bases: YBN-R/3, YBO-R/3 and YBV-R/4
Certificate of Approval
Certificate of Product Approval - EN 54-3 | Products: YBO-BS and CHQ-WS2 | Bases: YBN-R/3, YBO-R/3 and YBV-R/4
Literature

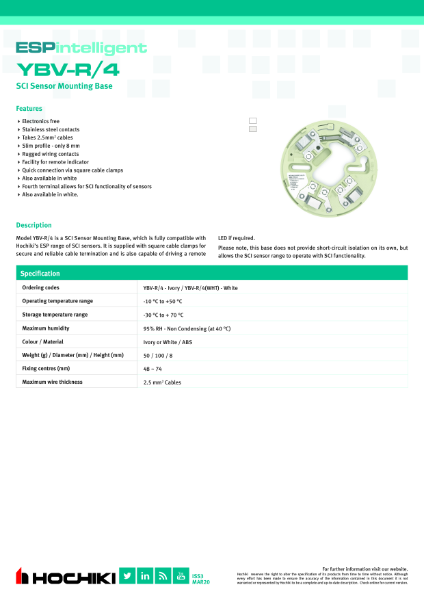

YBV-R/4 SCI Sensor Mounting Base
Hochiki Corporate Overview
Hochiki BS 5839 Guide
Hochiki - ESP - Intelligent Fire Detection - Range Overview
Hochiki Project Portfolio
