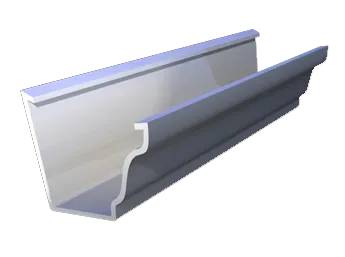

Moulded No. 46 Gutter System - Aluminium Guttering

Verified by manufacturer 1 month ago

5x4 moulded gutter (125 x 100)

Guttermaster Ltd Variant:
Third party certifications:
  • Warringtonfire

    Warringtonfire

    Certificate type

Guttering taken from a traditional cast iron pattern to provide a strong, long-lasting, lightweight, and economical gutter to give a decorative eaves detail on a wide range of applications.

Jump to:
+44 (0)1706 869550 Website

Application

Eaves guttering for use as a direct replacement for cast iron on refurbishment, or on new build. Aluminium Guttering. Moulded No. 46 Gutter System.

Description

The Guttermaster Moulded Ogee Guttering is taken from a traditional cast iron pattern to provide a strong, long-lasting, lightweight and economical gutter to give decorative eaves detail on a wide range of applications.


Features and benefits:

  • Can be used as a direct replacement for cast iron on refurbishment, or on new build.
  • Thick gauge extrusion, using a high-strength alloy 6063 T6, allows for a much straighter gutter than other methods of manufacture - 1.5 mm/metre for extrusion compared with 3.5 mm/metre for casting.
  • To prevent leakage, the lip detail at the top of the gutter section enables the joint to lock into place.
  • The vertical rear face of the gutter reduces unsightly gaps which can be particularly noticeable on polyester-coated systems whilst allowing the gutter to be fixed to a fascia without brackets if required.
  • Exceeds British standard thickness requirements.
  • To prevent wind uplift the Guttermaster system incorporates wind restraint lips which lock the gutter into position.
  • Extra large gutters available up to 400 mm wide, and 300 mm deep.


Snow load test reports are available, consult the manufacturer for details.

General information

Color

Silver

Other

Beige

Black

Blue

Show more

Finish

Powder-coated

Anodized

Textured

Metallic

Other

Material

Aluminium

Shape

Trapezoid

Length

3000 mm

Guidance for specification option:

Standard section length.

Bespoke

Width

125 mm

150 mm

200 mm

Height

100 mm

152 mm

Warranty description

Other

Manufacturer guidance

Finish warranty available and determined upon applicated based upon geographical location.

Uniclass

Pr_65_50_35_06 Aluminium eaves guttersPrimary

CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Specification data - Aluminium eaves gutters

Form

Extruded.

Guidance for specification option:

6063 T6.

Profile

Moulded No. 46.

Size (nominal width)

125 mm.

Thickness or gauge

2.2 mm.

Finish

Polyester powder-coated to BS 6496.

Guidance for specification option:

Standard; insert colour requirements below.

Anodized.

Guidance for specification option:

Insert colour requirements below.

Heritage textured.

Guidance for specification option:

Insert colour requirements below.

Metallic.

Guidance for specification option:

Insert colour requirements below.

Special.

Guidance for specification option:

Insert colour requirements below.

Colour

RAL, colour.

Guidance for specification option:

Insert requirements (polyester powder coating only).

BS 4800, colour.

Guidance for specification option:

Insert requirements (polyester powder coating only).

Syntha Pulvin, colour.

Guidance for specification option:

Insert requirements (polyester powder coating only).

Other.

Guidance for specification option:

Insert requirements (all finishes).

Film thickness (minimum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Integral accessories

Union joint.

Running outlet.

Preformed gutter angle, 90° (external).

Preformed gutter angle, 90° (internal).

Preformed gutter angle, 135° (internal).

Preformed gutter angle, 135° (external).

Stop end, left hand.

Stop end, right hand.

Manufacturer guidance

Components to match main gutter size where applicable. Brackets specified separately below.

For purpose-made components, see Accessories.

Brackets

Not required.

Fascia brackets with wind restraint.

Rafter brackets with wind restraint, side fixing.

Rafter brackets with wind restraint, top fixing.

Other.

Guidance for specification option:

Rise & fall brackets are also available. Due to the possible weight of water/ snow that these gutters can carry, it is advisable to consult the manufacturer's technical department before considering this type of bracket.

Manufacturer guidance

Size to match main gutter size. Other components specified separately; see Integral accessories.

For purpose-made components, see Accessories.

Depth

100 mm.

Accessories

None.

Scroll brackets.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Standard brackets specified separately above.

Lightning clip.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Raking angle.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Radius gutter.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Show more

Manufacturer guidance

Purpose-made components.

(see Integral accessories for standard options).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

16 kg CO₂ eq/kg

Self declared

Recyclability

Potential 95% + recyclability

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Third party certifications

Warringtonfire

Warringtonfire

UK Fire Test Results
