Mosa Shower Drain®
Description

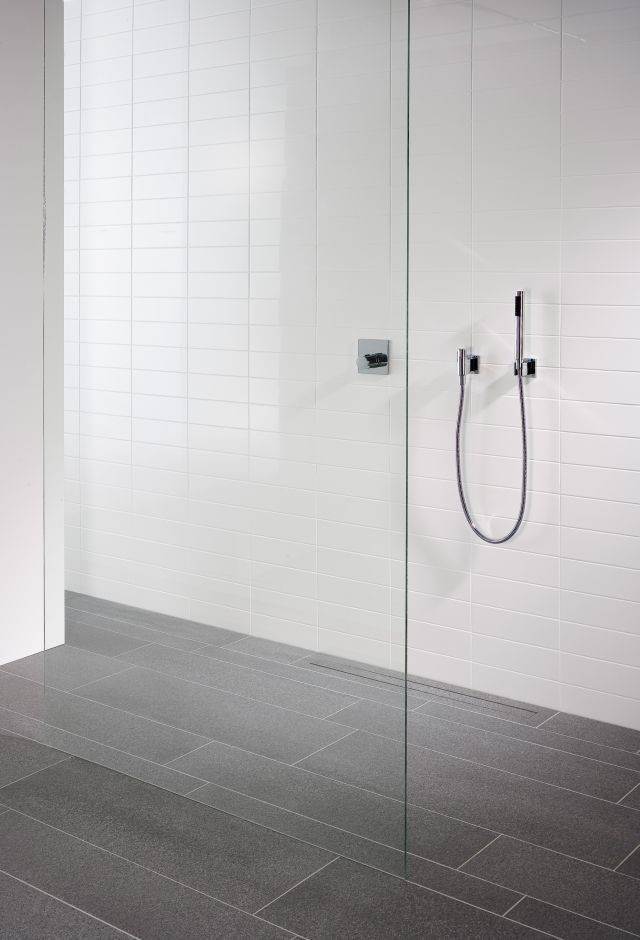

The Mosa Shower Drain, part of the Mosa Elements collection, is virtually invisible, because it is completely incorporated into the fully tiled shower floor. The water drain is only visible in the 4 mm wide opening. The result is a unique and yet completely logical picture: a fully-tiled floor with integrated water drainage.

Features and benefits:

  • Monolithic.
  • Invisible.
  • Two build-in heights; 30 and 50 mm water trap.
  • Available in two sizes.

General information

Size

150 x 600 mm

150 x 900 mm

Uniclass 2015

Pr_35_93_96_19 Ceramic tilesPrimary

CAWS

M40/110 Tiling to

M40/5 Tiling to

Specification data - Ceramic tiles

Product Reference

Mosa Elements - Mosa Shower Drain®

Colour

A wide range is available, see 'options' and insert requirements.

Size

150 x 600 mm

150 x 900 mm

Water trap

30 mm water trap

24 L/min (minimum) flow capacity, build-in height: 86 mm (minimum).

50 mm water trap

42 L/min (minimum) flow capacity, build-in height: 105 mm (minimum).

Product Options

Colour:

Not all colours are available with all sizes, consult manufacturer for details.

  • 200, cool porcelain white.
  • 203, cool black.
  • 204, agate grey.
  • 206, mid grey.
  • 210, warm porcelain white.
  • 211, beige.
  • 215, grey green.
  • 216, anthracite.
  • 262, light grey beige.
  • 265, dark grey brown.
  • 4103, basalt grey.
  • 4104, anthracite black.
  • 4105, sand beige.
  • 4107, agate grey.

Bespoke colours can be produced on request.
