MonoFlat LIN-X Hinge - Flush Door Hinges

Verified by manufacturer 2 months ago

MonoFlat LIN-X450

Sugatsune Kogyo UK Ltd Variant:

Flush door hinges.

Jump to:
+44 (0)118 9272 955 Website

Application

For internal doors. Suitable for:

  • Corner doors.
  • Double doors.
  • Overlapping doors.

Description

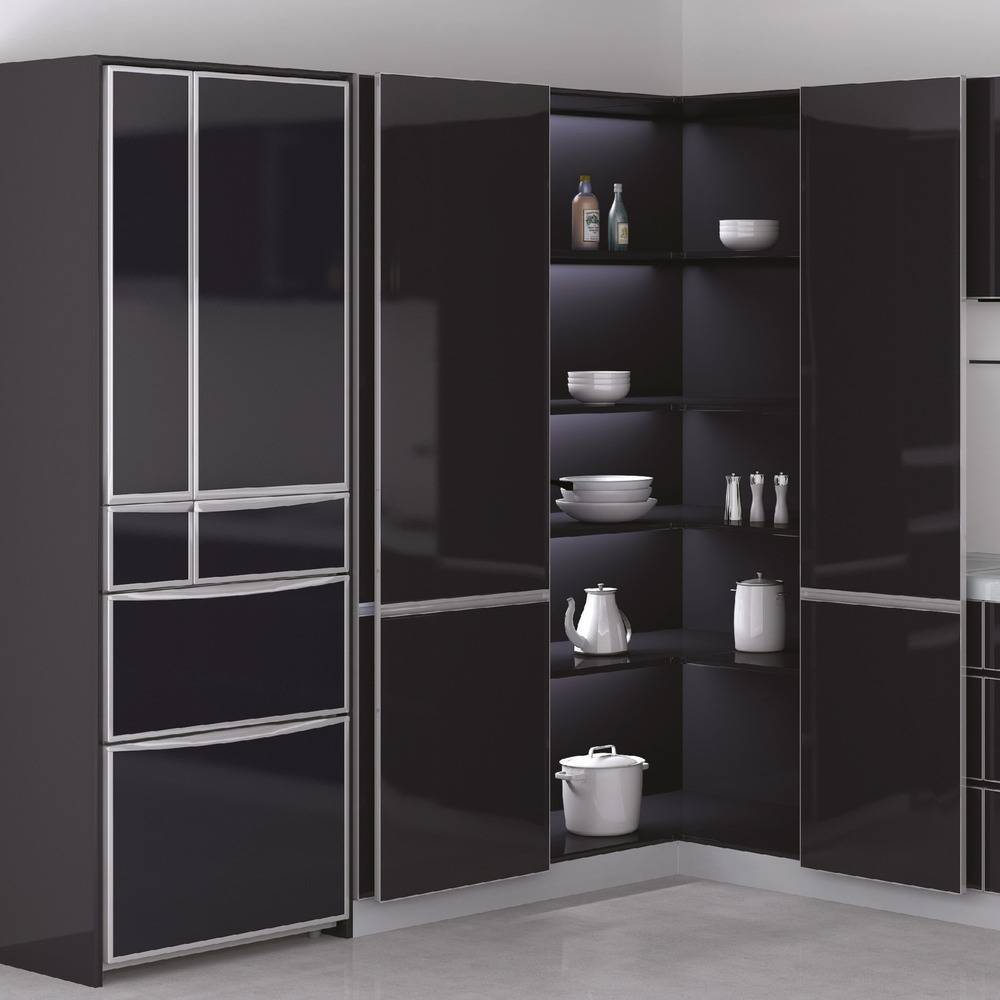

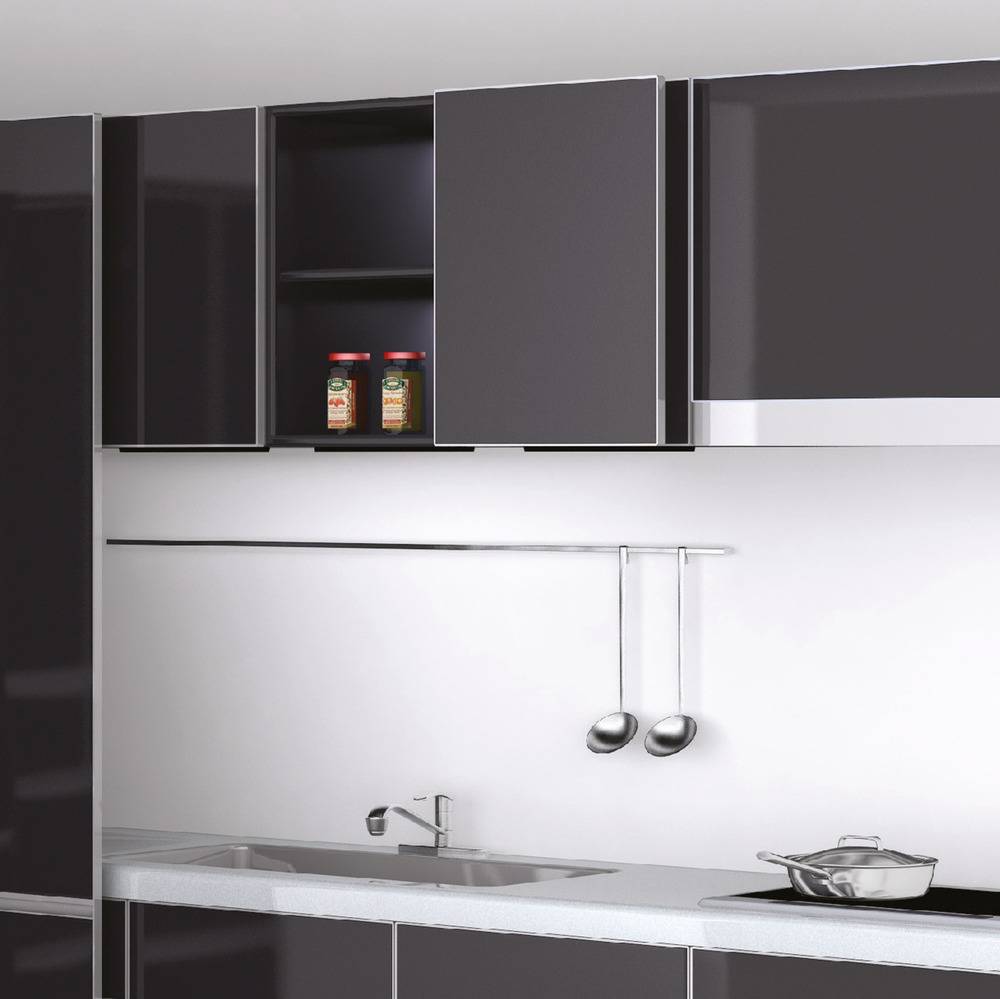

The MonoFlat Lin-X range is a groundbreaking lateral opening hinge that opens doors sideways without the need for a rail or track. Using multiple pivot points, this flush lateral door hinge brings a cabinet door out and across, avoiding the usual opening arc of a conventional hinge. This makes it a particularly suitable option when space is tight, or where access needs to be maximised. Once open, Lin-X hinges also tuck cabinet doors neatly against an adjacent surface for a neat, tidy look.


Lin-X hinges are easy to mount and completely concealed when the door is closed. They are also fitted with Sugatsune’s patented Lapcon dampers to provide soft, controlled opening and closing.


Features and benefits:


  • Exclusive and innovative hinge concept.
  • Lateral opening without the need for a rail or track.
  • Open doors tuck neatly out of the way flush against adjacent surfaces.
  • Hinges are fully concealed when doors are closed.
  • Provides full access to cabinet interior.
  • Built-in Lapcon damper for soft closing
  • Smooth operation: Door is easy to move with little resistance.
  • Simple, snap-in surface installation.


Variants


MonoFlat LIN-X450:


Door width 400 ~ 500 mm.

Door height 600 ~ 2400 mm.

Door thickness 15 ~ 24 mm.

Door weight MAX 17 kg (per door).

Overlay: 19mm.



MonoFlat LIN-X800:


Door width 750 ~ 850 mm.

Door height 600 ~ 2400 mm.

Door thickness 24 ~ 40 mm.

Door weight MAX 40 kg (per door).


MonoFlat LIN-X800H:


Door width 750 ~ 850 mm.

Door height 600 ~ 2980 mm.

Door thickness 24 ~ 40 mm.

Door weight MAX 40 kg (per door).


MonoFlat LIN-X1000:


Door width 750 ~ 1100 mm.

Door height 600 ~ 2980 mm.

Door thickness 24 ~ 40 mm.

Door weight MAX 90 kg (per door).


General information

Color

Black

White

Finish

Matt

Anodized

Material

Steel

Aluminium

Zinc

Acrylonitrile butadiene styrene (ABS)

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_36_36_11 Cabinet and countertop hingesPrimary

CAWS

P21/8 Door hinges

P21/320 Door hinges

Specification data - Cabinet and countertop hinges

Form

Lateral arm swing hinges with damper.

Lateral arm swing hinges without damper.

Manufacturer guidance

Screws, hole cover and mounting plate included as standard.

Size

264 x 68 mm.

Guidance for specification option:

Per hinge. Connecting bar length varies depending on door height (see Cabinet door guidance for details).

Material and finish

Steel (nickel finish)/ aluminium alloy (anodized finish)/ polyacetal.

Colour

Silver/ grey.

Guidance for specification option:

Metal components: Silver.

Polyacetal components: Grey.

Purpose

Suitable for doors 400–500 mm wide, 15–24 mm thick.

Guidance for specification option:

Able to accommodate height up to 2400 mm/ 17 kg with additional arms - see Cabinet door options below for height and weight limits.

Manufacturer guidance

Suitable door size.

Cabinet door

600–900 mm high/ up to 7 kg.

Guidance for specification option:

Standard kit.

901–1200 mm high/ up to 14 kg.

Guidance for specification option:

Tall/ heavy door kit; includes 840 mm connecting bar with end caps.

1201–1500 mm high/ up to 17 kg.

Guidance for specification option:

Tall/ heavy door kit; includes 1140 mm connecting bar with end caps.

1501–1800 mm high/ up to 17 kg.

Guidance for specification option:

Tall/ heavy door kit; includes 1440 mm connecting bar with end caps.

1801–2100 mm high/ up to 17 kg.

Guidance for specification option:

Tall/ heavy door kit; includes 1740 mm connecting bar with end caps.

Show more

Manufacturer guidance

Tall/ heavy doors (over 900 mm high):

  • Hinges with dampers: Three sets are required as standard.
  • Hinges without dampers: Number of sets dependent on door weight; consult manufacturer's literature for details.

Sustainability data

Contains Red List materials

No

Country of material origin

Japan

Country of product manufacture

Japan
