Monarplan PVC - FM1.8 Mechanically Fixed on Ply/OSB (Cold Roof) - PVC single ply waterproofing system
Verified by manufacturer 2 months ago
A flame free, PVC single ply waterproofing system.
Application
Installed as part of a mechanically fixed roof construction above a plywood or OSB deck.
Description
A flame free, PVC single ply waterproofing system supported by a 20 year guarantee intended as a lightweight roofing solution.
Features and benefits:
- Anthracite or light grey membrane colours.
- Lightweight system solution.
- Complementary range of accessories.
- Maximum guarantee duration: 20 years.
General information
Color | Grey Guidance for specification option:
|
Finish | Smooth |
Material | Polyvinyl chloride (PVC) |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | J42/130 Cold deck roof covering |
Specification data - Single layer sheet cold roof covering systems
Waterproof covering | |
Type | Monarplan FM - 1.8 mm RAL 7001 (grey).Monarplan FM - 1.8 mm RAL 7015 (anthracite).Manufacturer guidanceMonarplan FM is a Polyvinyl Chloride (PVC), polyester reinforced single-ply roofing membrane. |
Attachment | BS-4.8/50 mm Carbon Steel Fastener /IRC/W-82X40 mm Stress Plate. |
Protection layer | SLP 300 Separation fleece. |
Sustainability data
Material | Polyvinyl chloride (PVC) |
Literature

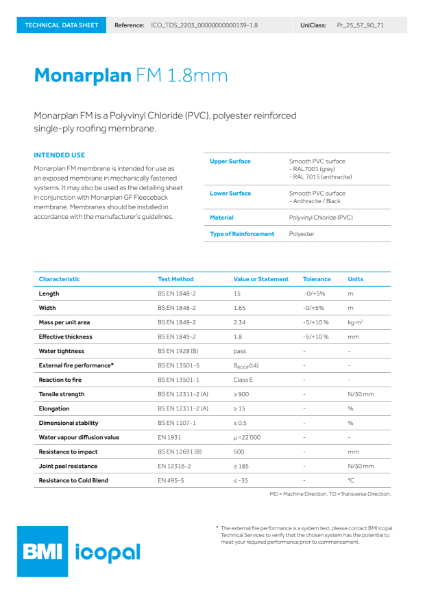

Monarplan FM - 1.8 mm
