Monarfloor Acoustic Tri-Batten System
Description

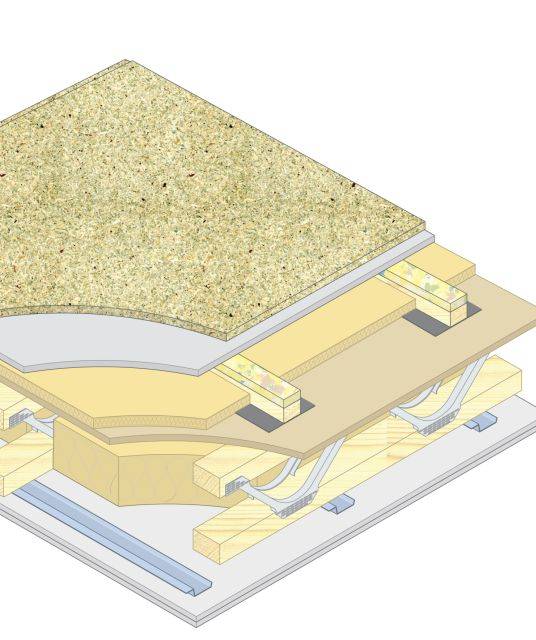

Monarfloor Tri-Batten System consists of a 15 mm layer of LRAC foam Type III bonded to a timber batten with a 3 mm-thick geotextile fibrous insulation mat, improving impact sound performance and enabling easy and secure fixing to the sub-floor.

Features and benefits:

  • Designed to support floor loadings defined in BS 6399-1: 1996.
  • The system incorporates recycled Low Resonance Acoustic Chip foam, providing excellent impact improvement characteristics and superior stability.
  • All LRAC foam used in Monarfloor systems is flame retardant.
  • The Acoustic Tri-Batten System is designed to reduce sound transmission through timber frame floors in a timber framed structure and can be overlaid directly with an 18 or 22 mm chipboard deck.
  • When installed as part of a complete sound reduction system, Tri-Battens enable a timber floor to meet the sound transmission regulations of Part E.

Performance:

  • DnT,w (Part H): 57 dB.
  • DnT,w + Ctr: 48 dB.
  • L,nt,W: 54 dB.

General information
Size

1800 x 53/78 x 45 mm

Uniclass 2015
Ss_30_20_95_10 Battened wood floating floor systemsPrimary
CAWS

K20/20 Battened timber board floating floor

K21/140 Battened wood laminate flooring

K11/145 Battened cement-bonded particleboard floating floor

K11/20 Battened particleboard floating floor

K11/115 Battened plywood floating floor

K20/150 Battened timber board floating floor

K11/125 Battened particleboard floating floor

K11/135 Battened oriented strand board floating floor

K21/120 Battened wood flooring

K11/295 Floating floor system

K21/130 Battened wood floating floor

Specification data - Battened wood floating floor systems
Product Reference

Monarfloor Acoustic Tri-Batten System

Type

FFT1

Resilient composite deep batten; 1800 x 78 x 45 mm.

FFT3

Resilient composite standard batten system; 1800 x 53 x 45 mm.

Accessories

None

Monarfloor adhesive

Monarfloor flanking band

To be used around the perimeter of floors laid with acoustic battens, to ensure compliance.

Isolation strip

Standard product features

Size:

1800 x 53/78 x 45 mm.

Third party certifications
  • Certificate Number: 99/3600
