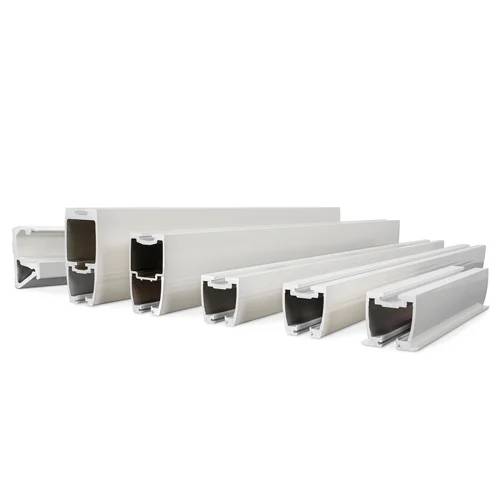

Molift Rail System - Ceiling Hoist Rail System

Name: Molift Rail System - Ceiling Hoist Rail System
Brand: Etac Ltd
SKU: mXsMQxwusgBqexFwtzpWz2

Verified by manufacturer 2 months ago

Etac Ltd

Product certifications:

ISO 13485:2016 Medical devices (Quality management systems)
Certificate type
Sustainability Certification - Planet Mark
Certificate type

A cost effective and safe ceiling hoist system for transfer situations.

Jump to:

BOS

0121 561 2222 Website

Application

Suitable for use in all types of ceilings, walls and floors in hospitals, other health care settings and the home.

Description

Molift Rail System has rail profiles with innovative solutions for integration into all types of ceilings and walls. The wide range of fixing options results in making it one of the most most efficient installation processes in the market. It is easily integrated and is aesthetically adjusted to the design and architecture of the room. The range of switches and other transition options makes the rail system extremely flexible.

Features and benefits:

Effective and safe installation.
Smart fixing details.
Can be integrated into suspended ceilings.
Curved rails 30°, 45°, 60° and 90°.
In-rail charging (IRC) - charging in rail as an accessory.
Accessories such as traverse switch and rail switch.
Room to room transfer.
Various weight classes.

General information

Color	White
Finish	Smooth
Material	Metal
Shape	Rectangle
Length	3000 mm 4000 mm 5000 mm 6000 mm 7000 mm
Width	Bespoke
Height	62 mm 112 mm 142 mm 85 mm
Warranty description	Two year

Uniclass	Pr_65_80_47_04 Assisted transfer hoistsPrimary
CAWS	N13/490 Hoist systems

Specification data - Assisted transfer hoists

Classification data
Form	Ceiling-mounted track. Wall-mounted track hoist.
Supports	-
Material	Metal.
Finish and colour	Powder-coated, white.
Safe working load (maximum)	160–500 kg. Guidance for specification option: Depending on the different needs and choice of the hoist motor.
Integral accessories	In-rail charging (IRC).
Electrical power	Mains.
Lengths	Not required. Rail CC/P, 62 mm. Rail OC/P, 62 mm. Rail DC/P, 62 mm. Rail OC/P, 112 mm. Rail OC/P, 142 mm. Rail W/P, 85 mm. Manufacturer guidance Profiles, lengths. Available lengths: 3 m, 4 m, 5 m and 6 m available; 7 mm available additionally for Rail OC/P, 142 mm. Insert requirements.
Curve	Not required. Rail CC/P 30°. Rail CC/P 45°. Rail CC/P 60°. Rail CC/P 90°. Rail OC/P 30°. Rail OC/P 45°. Rail OC/P 60°. Rail OC/P 90°. Rail DC/P 30°. Rail DC/P 45°. Rail DC/P 60°. Rail DC/P 90°. Manufacturer guidance Profile, curves. Height: 62 mm.
Accessories	- Manufacturer guidance A wide range of components and accessories available. Consult manufacturer for details and insert requirements.
