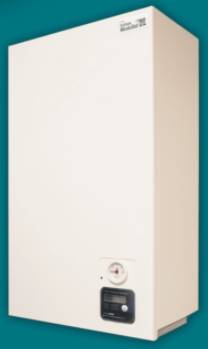

Single plate heating only heat interface unit.

Jump to:
+44 (0)1372 722277 Website

Application

For dwellings or commercial areas served by a communal or district system.

Description

Heating interface unit supplied via primary LTHW water, which is provided by centralized plant. Consisting of a plate heat exchanger, combined with electronic PID control using Pressure Independent Control Valve (PICV) with modulating actuator achieving a low primary return temperature as well as providing differential pressure control and flow rate regulation.


The heating circuit consists of a plate heat exchanger (PHE), safety relief valve, manometer, flow and return temperature sensors, Wilo PWM circulation pump and expansion vessel. The heating circuit flow temperature is controlled by the modulation of the primary flow rate with the integrated PICV actuator. Weather compensation is applied to the set heating temperature using SmartTalk® two-way communication. Suitable for radiators, underfloor heating or fan coil units.


Features and benefits:

  • Very compact design with minimum space required for installation.
  • Ultrasonic heat meter MID approved and class 2 accuracy (BS EN 1434).
  • Excellent thermal efficiency achieved using the latest technology and efficient brazed stainless steel PHE’s.
  • Integrated PaySmart® technology ready for prepayment billing upgrade (activated remotely at any time).
  • Billing app for use on smartphones and tablets.
  • ViewSmart room controller with optional upgrade to provide ENE3 compliant Energy Display Device.
  • Electronically controlled PICV for primary flow rate modulation to match demand, differential pressure control and energy shut-off.
  • Pipework constructed from copper.
  • External filling loop (Optional).
  • SmartTalk two-way communication.
  • Remote monitoring, alarms, and diagnostics.
  • Wilo PWM Pump – Provides compliance with EU ErP Directive 2015.
  • Includes inbuilt TCP/IP technology to operate on an Ethernet network if required.
  • Capable of reading an electricity meter (option for ENE3).
  • Flushing bypass kit enables the primary side of the system to be flushed and cleaned without damage to the unit.

General information

Color

White

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Width

467 mm

560 mm

Height

675 mm

800 mm

825 mm

Warranty description

Two year

Uniclass

Pr_60_60_38_36 Heat interface unitsPrimary

CAWS

T90/110 Heating system

T90/110 Heating system

Specification data - Heat interface units

Duty

-

Pressure drop

50 kPa.

Insulation

Not required.

Casing and pipework insulation required.

Components

-

Primary

Plate heat exchanger and flow and return temperature sensors.

Secondary

Wilo PWM circulation pump.

Controls

Pressure Independent Control Valve (PICV), electronic actuator and PID control.

Model

-

Manufacturer guidance

Consult manufacturer and insert SKU code.

Power supply

220/240V, 50Hz.

Maximum temperature

95°C.

Capillary Brazing

Copper.

Optional items

Not required.

External filling loop.

Sustainability data

Country of product manufacture

Romania
