Modulo TAF Wall - Shower Drain

Application

Suitable for new construction or renovation projects.

Description

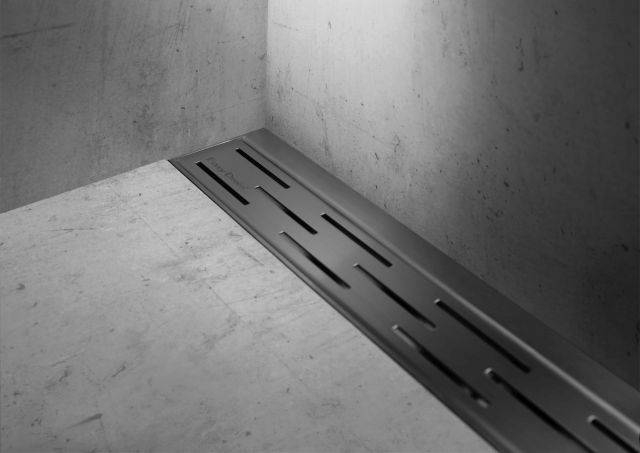

Linear shower drain which fits between any wall and any floor. The subtle stainless steel frame connects the bathroom wall and floor, while the TAF system and Water Protection System (WPS) make sure that all of the shower water is drained.


Features and benefits:

  • Available in lengths of 500–1200 mm.
  • From 70 mm minimum installation depth.
  • TAF: height-adjustable frame.
  • WPS: 100% watertight with ten-year warranty.
  • Removable and cleanable drainage syphon.
  • EN 1253-certified.
  • ETAG-022-certified.

General information

Color

Black

Green

White

Finish

Brushed

Tiled

Chrome Plated

Material

Stainless steel

Acrylonitrile butadiene styrene

Polypropylene

Glass

Shape

Rectangular

Size

935 x 113 x 90 mm

WarrantyDescription

Ten years

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

Specification data - Floor gullies Enhanced data

Standard

To EN 1253 + ETAG-022.

Body

-

Configuration

Siphon.

Material

Acrylonitrile butadiene styrene / polypropylene.

Cover or grating

-

Cover or grating type

Open grating.

Solid cover.

Tile.

For 7-18 mm depth tile, brushed stainless steel surround.

Material

Not applicable.

For tile.

Glass.

For solid cover.

Stainless steel grade 1.4301 (304) frame.

Finish

Not applicable.

For tile.

Black.

For glass.

Brushed.

For open grating.

Green.

For glass.

White.

For glass.

Zero+ brushed.

For stainless steel solid cover.

Zero+ chrome-plated

For stainless steel solid cover.

Outlet

Horizontal fixed.

Horizontal rotatable.

Vertical rotatable.

Product Reference

Modulo TAF Wall - Shower drain

Length

500 mm.

600 mm.

700 mm.

900 mm.

1000 mm.

Show more

Water seal height

28 mm.

For rotatable outlet, 33 L/m drainage capacity, 70 mm minimum installation depth.

30 mm.

For fixed outlet, 32 L/m drainage capacity, 63 mm minimum installation depth.

50 mm.

41/ 42 L/m drainage capacity, 83/87-97 mm minimum installation depth.

Connection

28 mm and 30 mm water seal height: 40 mm; 50 mm water seal height. Global: 50 mm; UK: 56 mm.

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors.

Suitable floor finishes

Tiles/ mosaic, glass mosaic, thin tiles.

Environmental information

Country of material origin

Netherlands

Country of product manufacture

Germany

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
