Modulo TAF High - Shower drain
Application

New construction or renovation.

Description

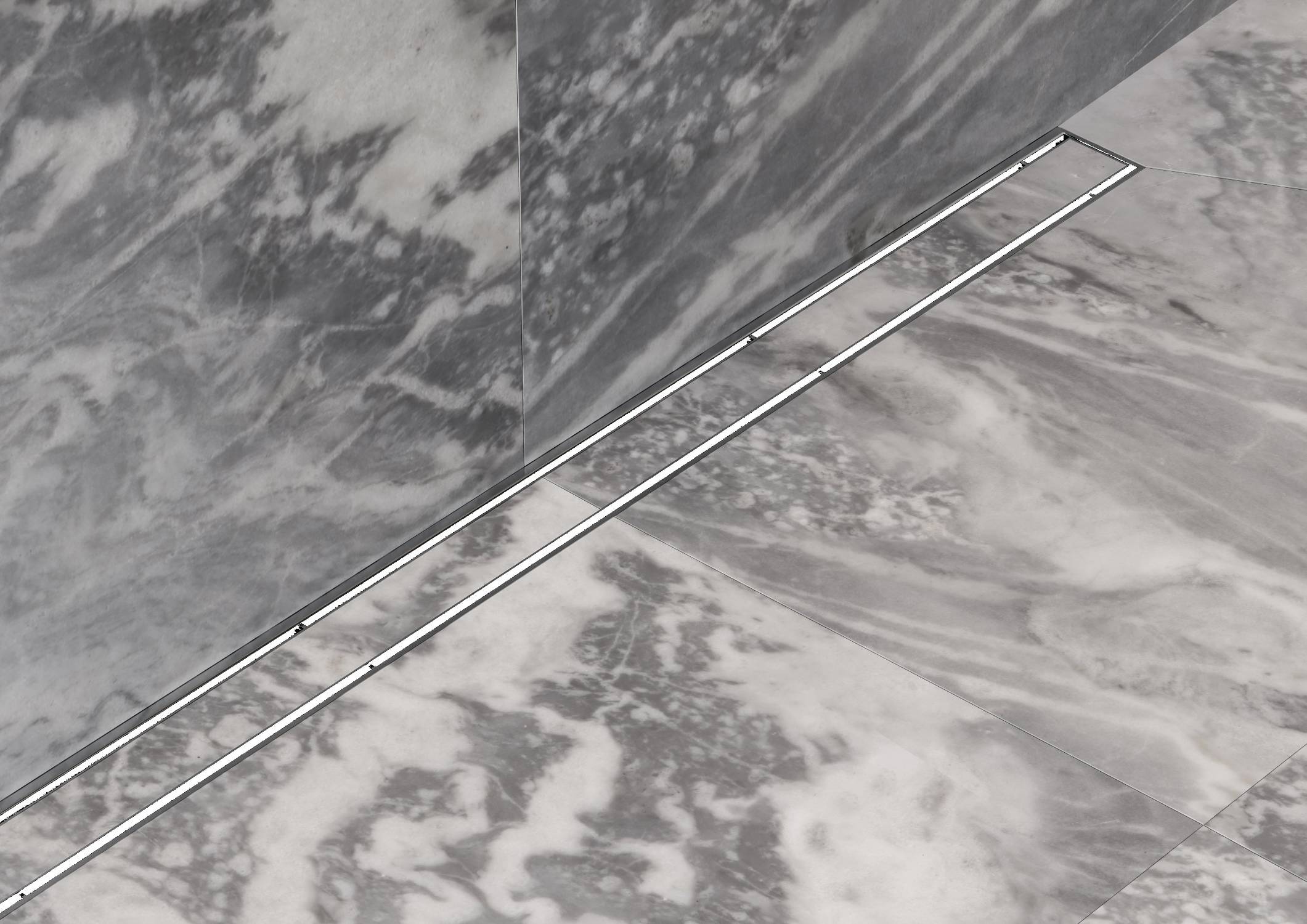

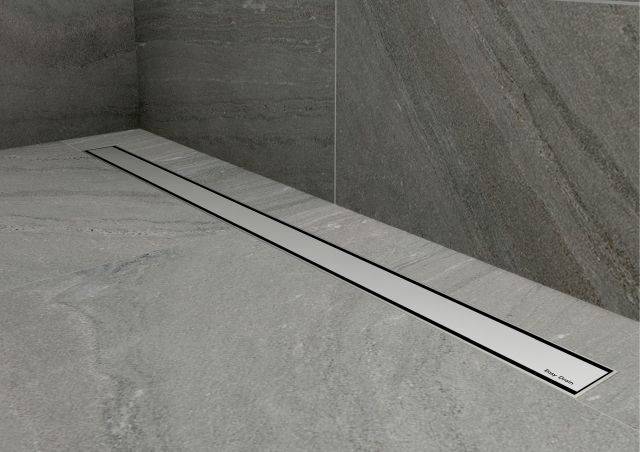

Linear shower drain with a subtle stainless steel frame, providing an elegant look. The TAF technology and Water Protection System (WPS) guarantee easy installation and a waterproof finish.

Features and benefits:

  • Available in lengths of 500–1200 mm.
  • TAF: height-adjustable frame.
  • WPS: 100% watertight with ten-year warranty.
  • Removable and cleanable drainage syphon.
  • EN 1253-certified.
  • ETAG-022-certified.

Application:

New construction or renovation.

General information

Material

Stainless steel

Size

935x113x70mm

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

Modulo TAF High - Shower drain

Standard

To EN 1253 + ETAG-022

Body

-

Configuration

Siphon

Material

Acrylonitrile butadiene styrene (ABS)/ polypropylene (PP)

Cover or grating

-

Type

Solid cover

Tile

For 17-28 mm, brushed stainless steel surround.

Material

Not applicable

For tile.

Stainless steel

Finish

Not applicable

For tile.

Zero+ brushed

Zero+ chrome-plated

Outlet

Horizontal fixed

Horizontal rotatable

Vertical rotatable

Length

500 mm

600 mm

700 mm

900 mm

1000 mm

1100 mm

1200 mm

Water seal height

28 mm

For rotatable outlet, 33 L/m drainage capacity, 70 mm minimum installation depth.

30 mm

For fixed outlet, 32 L/m drainage capacity, 63 mm minimum installation depth.

50 mm

41/ 42 L/m drainage capacity, 83-87 mm minimum installation depth.

Connection

28 mm and 30 mm water seal height: 40 mm; 50 mm water seal height. Global: 50 mm; UK: 56 mm

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors

Suitable floor finishes

Natural stone

Standard product features

Features:

Subtle stainless steel frame.

Finish:

Brushed frame.

Material:

Stainless steel grade 1.4301 (304) frame.

Shape:

Rectangular.

Size:

62 mm width.

Warranty description:

Ten years.

Country of origin:

The Netherlands.

Country of manufacture:

Germany.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
Literature
