Modulo Slimline Behind the Mirror Hand Hygiene System
Hand Dryer
Verified by manufacturer 5 months ago
Automatic, energy efficient hand dryer.
Application
- Washrooms.
- Compatible with the Modulo Slimline Cabinets and Modulo Slimline Shelves.
- Suitable for installation within a bespoke cabinet or shelf.
Description
Slimline, Behind the Mirror, fast, energy efficient hand dryer efficient hand dryer.
Works in conjunction with the Modulo Slimline Cabinet.
Features and benefits:
- Energy efficient – dries hands fast at the point of use.
- Slimline design.
- Helps to reduce drips on the floor from wet hands.
- Quiet operation.
- Suitable for use in busy washrooms.
- Reduces washroom waste with no requirement to re-fill.
- Lockable cabinet door to protect contents.
- Utilizes a full modular cabinet/ shelf space.
- Blanking plates available separately if required.
- Three-year warranty.
General information
Color | Black |
Finish | Powder-coated |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 328 mm |
Width | 388 mm |
Height | 173 mm |
Warranty description | Three year |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
SKU Code | 92403BK |
Specification data - Hand dryers
Classification data | |
Form | Warm air. |
Operation | Automatic. |
Electrical supply | |
Power rating | 1.7 kW. |
Rated operational voltage (Ue) | 230 V a.c. |
Frequency | 50/60 Hz. |
Body | |
Material | Stainless steel. |
Finish | Powder coated. |
Colour | Matte black. |
Dimensions | 388 x 328 x 173 mm. |
Noise level at 1 m (maximum) | 71 dB(A). |
Features | Hands only. |
Sensors | 100 mm range. |
Third party accreditation | CE marked. |
Weight | 6.5 kg. |
Blanking Plates | Not required. Required. |
Velocity | 28 m/s. |
Accessories | Not required. 92405BK, Modulo Slimline Base Shelf, 600 mm. Guidance for specification option: 596 x 75 x 212 mm. 92404BK, Modulo Slimline Base Shelf, 1200 mm. Guidance for specification option: 1196 x 75 x 212 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

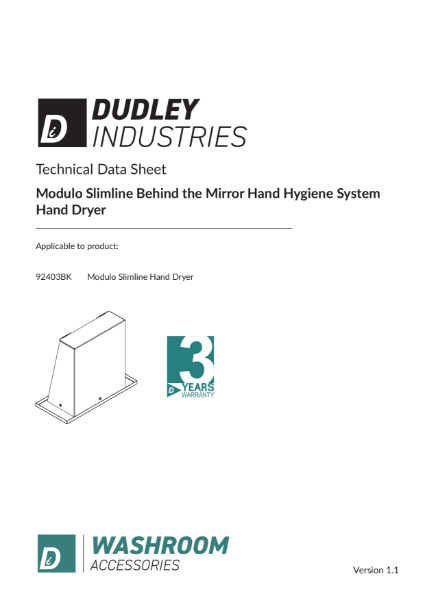

Modulo Slimline Technical Data Sheet - Hand Dryer
