Modulo Slimline Behind the Mirror Hand Hygiene System
Cabinet - Bathroom Cabinet
Verified by manufacturer 1 month ago
92407BK Modulo Slimline Cabinet 600 mm
92407BK Modulo Slimline Cabinet 600 mm

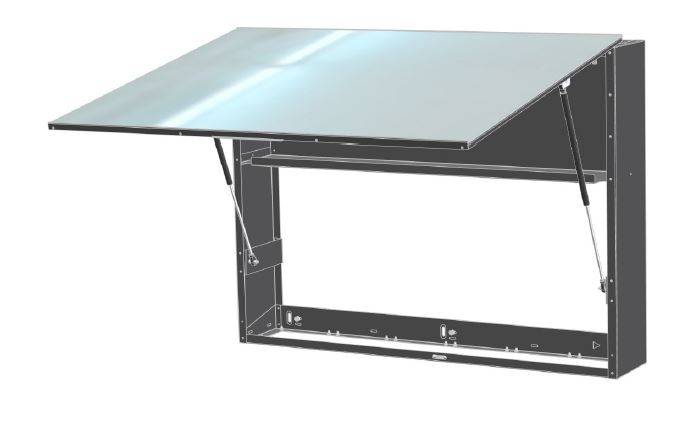

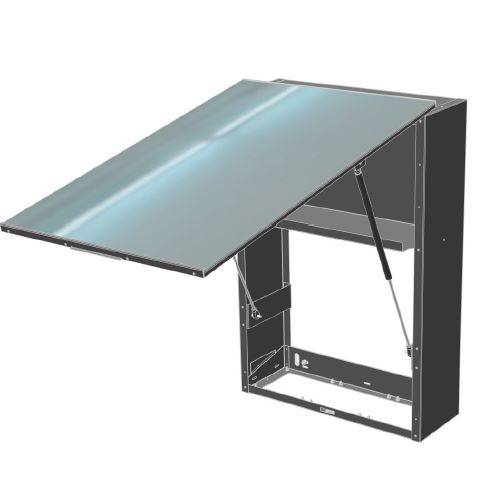

Modulo Slimline cabinet with mirrored door and integrated fixings for Modulo Slimline dispensers.
Application
- Washrooms.
- For housing the Modulo Slimline hand hygiene dispensers.
Description
Metal cabinet with integral fixings for Modulo Slimline Dispensers complete with mirrored door.
Features and benefits:
- Available in two widths.
- Slimline design.
- Can be used individually or combined for wider installations.
- Easy opening door.
- Hygienic.
- Lockable cabinet door to protect contents.
- Easy installation.
- Blanking plates are available separately to cover any unused positions.
- Compatible with Modulo Slimline Shelf; when incorporated into the cabinet design provides handy storage for spare consumables.
- Ten-year warranty.
General information
Color | Black |
Finish | Powder-coated |
Material | Stainless steel Steel |
Shape | Rectangle |
Width | 600 mm 1200 mm |
Height | 960 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture |
Specification data - Bathroom cabinets
Form | Wall mounted. |
Carcass | |
Material | Stainless steel. |
Finish and colour | Matte black, powder coated. |
Size (nominal) | 600 x 960 x 230 mm. |
Doors | |
Arrangement | Horizontal, top hung. |
Material | Glass, mirrored to exterior. |
Finish and colour | Mirrored. |
Edges | Square. |
Hinges | Gas struts ensuring easy opening. |
Handles | Concealed. |
Integral accessories | Integrated fixings. |
Blanking Plates | Not required. Required. |
Accessories | Not required. 92405BK, Modulo Slimline Base Shelf, 600 mm. Guidance for specification option: 596 x 75 x 212 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Modulo Slimline Technical Data Sheet - Cabinet
