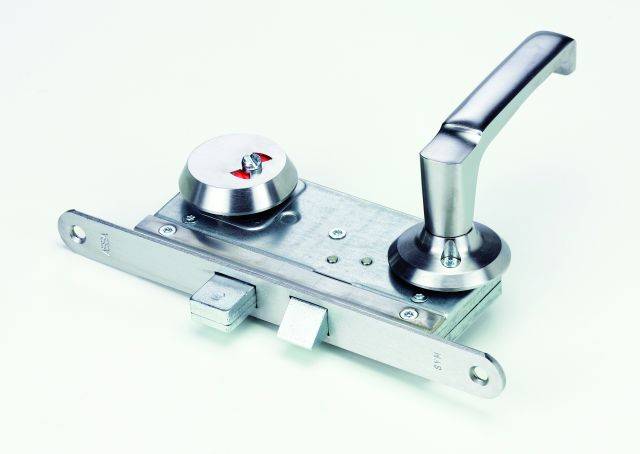

Modular Toilet Lock 9565T-1
Application

Locks for bathroom and toilet doors in schools, hospitals, sheltered housing, factories, hotels etc.

Description

Application:

Locks for bathroom and toilet doors in schools, hospitals, sheltered housing, factories, hotels etc.

Features:

  • Available with backset 50 or 70 mm.
  • Toilet lock made up from 2788 upright mortice lock and 9566T-1 accessory set. Especially suitable for disabled people. Locked by raising inner handle. Unlocked by depressing inner handle in the normal way. Lockcase is supplied with striking plate.
  • Latchbolt reversible without opening lockcase. Lockcase is supplied with striking plate.
  • Can be opened in an emergency by screwdriver from outside.
  • Incorporates red/white indicator on both sides.

Function:

  • The hook bolt is thrown by flipping up the interior handle.
  • Both bolts are retracted by pushing down interior handle.
  • Exterior handle operates latchbolt.
  • Red/white indicator shows when door is locked.

Additional information for this product is available from:

http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644173

General information

Features

Available with backset 50 or 70 mm

Toilet lock made up from 2788 upright mortice lock and 9566T-1 accessory set. Especially suitable for disabled people. Locked by raising inner handle. Unlocked by depressing inner handle in the normal way. Lockcase is supplied with striking plate

Latchbolt reversible without opening lockcase. Lockcase is supplied with striking plate

Can be opened in an emergency by screwdriver from outside

Incorporates red/white indicator on both sides

Uniclass 2015

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Modular Toilet Lock 9565T-1

Handing

Left hand inward opening

Left hand outward opening

Right hand inward opening

Right hand outward opening

Backset

50 mm

70 mm

Colour/ Finish

Bright zinc

Special finish.

Polished brass

Satin chrome
