Mizar Granite
Verified by manufacturer 2 months ago

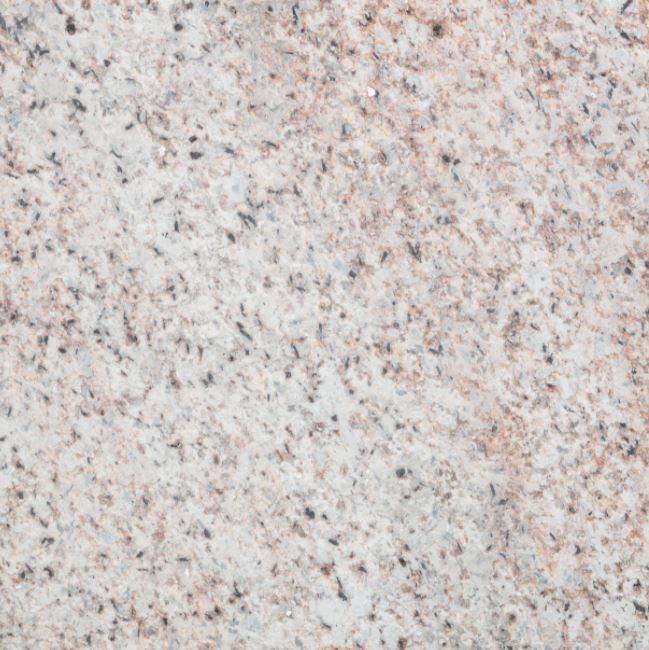

Flamed Finish
Flamed Finish
Hard-wearing, strong and durable beige to grey granite.
Application
Suitable for both pedestrian and vehicular trafficked areas. Available across all product areas including Paving, Setts, Kerbs, Tactile, Steps, Water Management, Bespoke Street furniture, Masonry and Specials – allowing for the creation of unified schemes.
Description
Hard-wearing, strong and durable beige to grey granite.
Features and benefits:
- Blasted finish.
- UKCA marked in accordance with the latest legislation.
- Predominantly beige to pale grey buff granite.
- Available in a range of standard plan sizes.
- Bespoke size options can be accommodated upon request.
General information
Color | Grey |
Finish | Blasted |
Material | Granite |
Shape | Rectangle Square |
Length | 200 mm 300 mm 450 mm 600 mm 900 mm |
Width | 100 mm 150 mm 200 mm 450 mm 600 mm |
Height | 50 mm 60 mm 70 mm Bespoke |
Uniclass | |
CAWS | Q25/26 Natural stone slab paving systems Q25/310 Natural stone slabs |
Specification data - Natural stone paving slabs
Standard | To BS EN 1341. |
Stone denomination | |
Petrological family | Granite. |
Colour | Beige buff. |
Origin | Portugal.Guidance for specification option: Quarry of origin: Mangaulde. |
Physical properties | |
Profile | |
Slab type | Regular plan form. |
Arrises | Square. |
Dimensions and associated tolerances | |
Nominal sizes | 200 x 100 x 50 mm.200 x 100 x 60 mm.200 x 100 x 70 mm.300 x 100 x 50 mm.300 x 100 x 60 mm.300 x 100 x 70 mm.300 x 150 x 50 mm.300 x 150 x 60 mm.300 x 150 x 70 mm.300 x 200 x 50 mm.300 x 200 x 60 mm.300 x 200 x 70 mm.450 x 450 x 50 mm.450 x 450 x 60 mm.450 x 450 x 70 mm.600 x 600 x 50 mm.600 x 600 x 60 mm.600 x 600 x 70 mm.900 x 450 x 50 mm.900 x 450 x 60 mm.900 x 450 x 70 mm.900 x 600 x 50 mm.900 x 600 x 60 mm.900 x 600 x 70 mm. |
Finish | Flamed. |
Performance requirements | |
Slip resistance | To BS 14231, 91 (dry), 76 (wet). |
Breaking load | To EN 12372, 14.2 MPa.Guidance for specification option: Lev = 13.1 MPa. |
Water absorption (maximum) | To EN 13755, 1.3%.Guidance for specification option: Hev =1.4%. |
Abrasion resistance | To EN 14157, 17 mm. Guidance for specification option: Hev = 17.5 mm. |
Durability | To EN 12371, 14.2/14.1 MPa. Manufacturer guidanceFreeze-thaw. |
Material density | To EN 1936, 2560 k.g./m³. |
Porosity | To EN 1936, 3.3%. Manufacturer guidanceOpen porosity. |
CompressiveStrength | To EN 1926, 91 MPa. Guidance for specification option: Lev = 75 MPa. |
Sustainability data
Country of material origin | Portugal |
Literature
Mizar Granite
