Fire rated concertina aluminium loft ladder fire-resistant hatch box, manufactured to EN 14975.

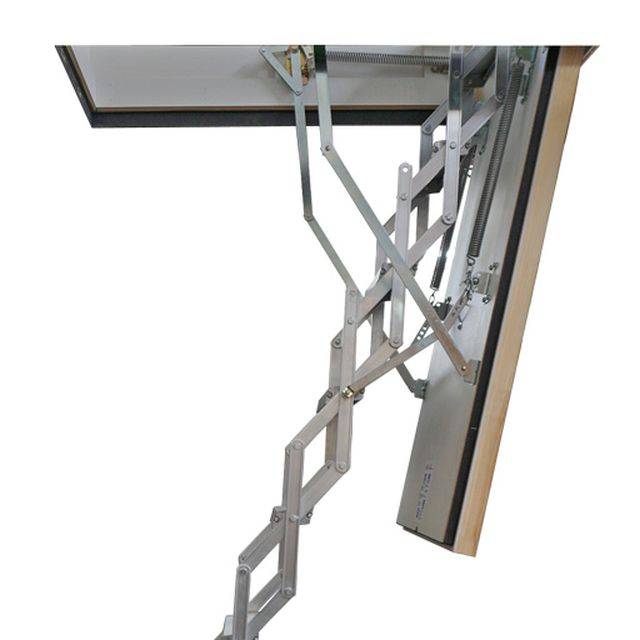

The MiniLine F30 / F30 Plus / F60 aluminium retractable loft ladder is specially designed for small ceiling openings. It is supplied as a ready to fit unit, consisting of a space-saving aluminium concertina ladder contained within, and attached to, a laminated wooden hatch box.
The insulated trapdoor provides good energy efficiency (0.92 W/m²K) and both sides are finished in white for improved aesthetics. It comes assembled with a telescopic handrail for comfort and safety.
The MiniLine fire resistant loft ladder is certified by MPA Braunschweig (tested to DIN 4102-2) for either 30 minutes from below (F30) or 60 minutes from below (F60), for installation in either wood-beamed ceilings or concrete ceilings. For concrete ceilings only, the MiniLine is also certified to 30 minutes from below and above (F30 Plus).
Features and benefits:
Uniclass 2015 | |
CAWS | L30/41 Loft ladders L30/421 Loft ladders |
Product Reference | Mini Line F30 Fire Rated Loft Ladder30 minutes fire resistance from below. Mini Line F30 Plus Fire Rated Loft Ladder30 minutes fire resistance from below and above. Mini Line F60 Fire Rated Loft Ladder60 minutes fire resistance from below. |
Hatchbox | - |
Size (l x w) | 1100 x 600 mm1100 x 700 mm1200 x 600 mm1200 x 700 mmSpecial orderInsert requirement, available 1000–1400 x 550–900 mm (550-700 mm for F60). |
Depth | 220 mmStandard. Special orderInsert requirement, available 220–630 mm. |
Treads / Floor-to-ceiling height | 92000–2250 mm in height. 102251–2500 mm in height. 112501–2750 mm in height. 122751–3000 mm in height. 133001–3250 mm in height. |
Accessories | NoneThree side upper level guard rail |
Standard product features | Load bearing capacity (per tread): 150 kg. Trapdoor:
Performance: The trapdoor is airtight to class 4 and the hatch box has a rubber seal all the way around. |
