Miniature Circuit Breaker (MCB) S200 - S200 Miniature Circuit Breaker Range

Verified by manufacturer 9 days ago

One pole

ABB Ltd Variant:

The S200 range is designed to protect installations from overloads and short circuits to ensure reliability and safety in all conditions.

Jump to:
+44 (0)24 7636 8500 Website

Application

Suitable for different applications, including residential, small commercial, and industrial use.

Description

The S200 range is designed to protect installations from overloads and short circuits to ensure reliability and safety in all conditions.

It offers solutions for different applications, including residential, small commercial, and industrial use.

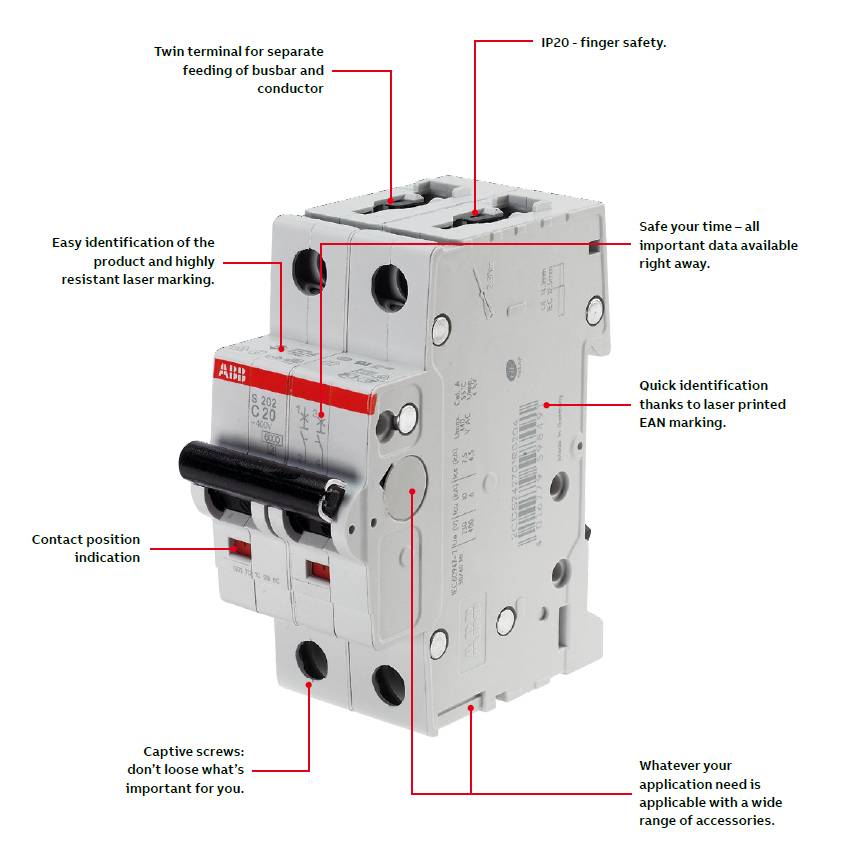

Features and benefits:

  • Versatile - wide range suitable for a variety of applications and segments.
  • Global availability thanks to standards and approvals.
  • Expandability through a wide range of accessories.
  • Compliant with the PEP ecopassport® environmental declaration.
  • Twin terminal for separate feeding of busbar and conductor.
  • IP20 - finger safety.
  • Easy identification of the product and highly resistant laser marking.
  • All important data available right away.
  • Quick identification thanks to laser printed EAN marking.
  • Contact position indication.
  • Captive screws.
  • Wide range of accessories.


Product details:

  • All System pro M compact® MCBs are suited with a contact position indication (CPI) on the toggle.
  • S200 MCBs comply to IEC EN 60898-1 and IEC EN 60947-2 and carry all relevant approval marks for each market and segment they are destined to. The certification markings are also printed on the dome of the MCB.
  • With the latest generation of thermoplastics it’s possible to recycle the MCBs – especially the thermoplastic housing material can be re-used.
  • By using the latest generation of thermoplastics the material stability of all System pro M compact® MCBs is improved.
  • S200 are 100% free of halogens – no environmental pollution.
  • All printings of the S200 and S200 M MCBs, like the approvals on the dome and the product identification, are printed by a laser.
  • The System pro M compact® MCB’s are equipped with 35 mm² + 10 mm² cylinder lift twin terminals, a well proven and reliable technology - designed for sophisticated industrial use.


General information

Color

White

Finish

Smooth

Material

Other

Guidance for specification option:

Thermoplastic; consult manufacturer for details.

Shape

Rectangle

Uniclass

Pr_65_72_27_52 Miniature circuit breakersPrimary

CAWS

V90/319 Cable distribution cabinets

V90/320 Distribution boards

Specification data - Miniature circuit breakers

Standards

To EN IEC 60898-1 and EN IEC 60947-2.
To UL 1077.
To CSA 22.2, No. 235.

Rated current (InA)

Guidance for specification option:

Insert requirements, 0.5–63 A.

Rated operational voltage (Ue)

To EN IEC 60898-1, 230/ 400 V a.c.
To EN IEC 60947-2, 230 V a.c.

Rated impulse withstand voltage (Uimp)

To EN IEC 60947-2 (1.2/ 50 µs), 4 kV.

Guidance for specification option:

Test voltage 6.2 kV at sea level, 5 kV at 2 000 m.

Rated frequency

50 Hz.

60 Hz.

Number of poles

One.

Rated short circuit capacity (Icn)

To EN IEC 60898-1, 10 kA.

Tripping characteristic

Type B.

Guidance for specification option:

Reference temperature for tripping characteristics:

  • To EN IEC 60898-1: 30°C.
  • To EN IEC 60947-2: 55°C.

Type C.

Guidance for specification option:

Reference temperature for tripping characteristics:

  • To EN IEC 60898-1: 30°C.
  • To EN IEC 60947-2: 55°C.

Type D.

Guidance for specification option:

Reference temperature for tripping characteristics:

  • To EN IEC 60898-1: 30°C.
  • To EN IEC 60947-2: 55°C.

Type K.

Type Z.

Guidance for specification option:

Reference temperature for tripping characteristics, to EN IEC 60947-2: 20°C.

Mounting method

DIN rail.

Accessories

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Rated insulation voltage

According to EN IEC 60664-1, 440 V a.c. (phase to phase).

Operating voltage

To EN IEC 60898-1 and EN IEC 60947-2 (minimum), 12 V a.c.–12 V d.c.

Technical characteristics, other

Overvoltage category: III.
Pollution degree: 3.
Maximum power frequency recovery voltage (Umax) to EN IEC 60898-1 and EN IEC 60947-2: 253 V a.c.
Energy limiting class, to EN IEC 60898-1 (B, C up to 40 A): 3.
Dielectric test voltage, to EN IEC 60898-1: 2 kV (50/ 60 Hz, one minute).
Electrical endurance, to EN IEC 60898-1 and EN IEC 60647-2: In <32 A: 20 000 operations. (a.c.); In ≥32 A: 10 000 operations. (a.c.); 1000 operations (d.c.).

Manufacturer guidance

Electrical endurance to EN IEC 60947-2:

  • One cycle 2 s - ON, 13 s - OFF, In ≤32 A,
  • One cycle 2 s - ON, 28 s - OFF, In >32 A.

Breaking capacity

Rated ultimate short-circuit breaking capacity (Icu), to EN IEC 60947-2: 15 kA.
Rated service short-circuit breaking capacity (Ics), to EN IEC 60947-2: ≤40 A: 11.2 kA; 50A, 63 A: 7.5 kA.

Sustainability data

Material

Other

Guidance for specification option:

Thermoplastic; consult manufacturer for details.
