Mini Rockwall

Application

Units can be used for above- or below-ground applications, or in perimeter or internal division situations. Suitable for:

  • Agricultural uses.
  • Commercial and industrial developments.
  • Residential areas.

Description

L-shaped, tapered, precast concrete retaining wall units.


Features and benefits:

  • Economical, flexible and instant wall retaining system.
  • Precast concrete walls allow less build and a reduced curing time.
  • Weather-resistant.

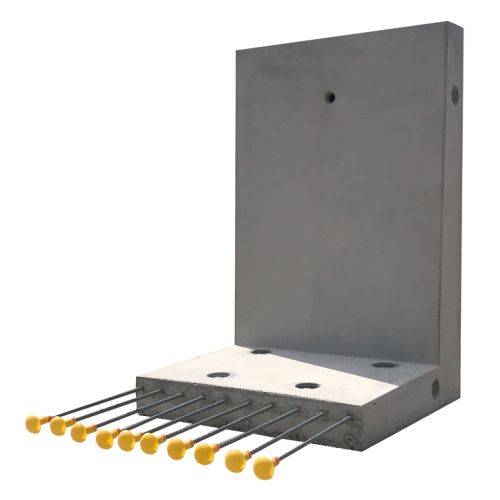

  • Cast-in option available with reinforcement protruding from toe to tie into in situ concrete slab, providing a level finish base, eliminating the requirement for fixings.
  • Bolt-down option available when working with existing slabs or foundations.
  • Hand trowel finish to vertical face, steel toe finish to toe side.
  • Units can be loaded to one or both faces, with up to 15 kN/m² surcharge, subject to unit height.
  • Weepholes and apertures available.
  • Bespoke modifications are available to suit site-specific projects.
  • Free detailing service available for specific project requirements – consult manufacturer for information.
  • Manufactured in accordance with BS 8110-1:1997, BS 8500-1:2006 and BS EN 206-1.

General information

Color

Light grey

Material

Concrete

Shape

L-shaped

Size

1000 x 1000 mm

1000 x 1250 mm

1000 x 1500 mm

1000 x 1750 mm

Uniclass 2015

Pr_20_93_71_53 Modular reinforced concrete stem wall unitsPrimary

CAWS

D41/410 Precast reinforced concrete stem walls

Specification data - Modular reinforced concrete stem wall units Enhanced data

Configuration

L shape.

Dimensions

-

Height

Special heights available. Consult manufacturer for details.

1000 mm.

1250 mm.

1500 mm

1750 mm

Width

1000 mm.

Weight

495 kg.

1000 x 1000 mm.

583 kg.

1000 x 1250 mm.

660 kg.

1000 x 1500 mm.

713 kg.

1000 x 1750 mm.

Design

As drawing.

Insert drawing reference number where applicable.

As schedule.

Fixing

Bolt in.

Cast in.

StrengthClass

C50.

Loading

1800 kg/m³.

Level fill capacity.

Accessories

Weepholes and apertures can be cast in to suit requirements. Consult manufacturer for information.
