MidiTerrace
Application

  • Balconies, podiums and terraces.
  • Projects with low door thresholds and other height restrictions.

For lower-height applications, see MicroTerrace™. For applications which require larger height build-up, see UltraTerrace™. For unusual applications, consult manufacturer to discuss options.

Description

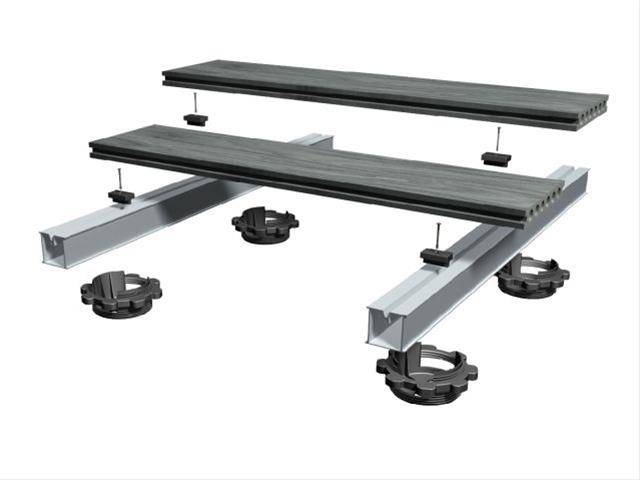

MidiTerrace™ combines WPC decking with aluminium joist and height adjustable joist cradles to create a solution for most terrace, balcony and podium decking applications.

Features and benefits:

  • Low-maintenance, non-slip, splinter-proof, FSC® certified decking.
  • Hidden fixing system for decking.
  • Simple to install: Joist laid directly onto cradle, no need to secure.
  • Cradle allows millimetre perfect adjusment between 10-40 mm.
  • Extremely robust system.
  • Roof membranes are protected as weight distributes evenly.

Applications:

  • Balconies, podiums and terraces.
  • Projects with low door thresholds and other height restrictions.

For lower-height applications, see MicroTerrace™. For applications which require larger height build-up, see UltraTerrace™. For unusual applications, consult manufacturer to discuss options.

General information
Color

Black

Features

For joists below 25mm in depth, adjustment ring allows millimetre perfect adjustment, side walls prevents joists from moving suddenly, ergonomic finger grips enable easy adjustment, resistant to moulds, algae, alkali, bitumen, UV

For joists below 50mm in depth, adjustment ring allows millimetre perfect adjustment, side walls prevents joists from moving suddenly, ergonomic finger grips enable easy adjustment, resistant to moulds, algae, alkali, bitumen, UV

For joists above 50mm in depth, adjustment ring allows millimetre perfect adjustment, side walls prevents joists from moving suddenly, ergonomic finger grips enable easy adjustment, resistant to moulds, algae, alkali, bitumen, UV

Material

Glass filled nylon (recycled)

Shape

Circular cradle

Uniclass 2015
Ss_30_20_30_25 Decking systemsPrimary
CAWS

K11/295 Floating floor system

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Specification data - Decking systems
Product Reference

MidiTerrace™

Composite deck board (including all associated fixings and accessories) -
Type

Classic

Signature

Colour/ Finish

Charcoal

Classic.

Chocolate

Classic.

Ebony

Signature.

Mahogany

Signature.

Sand

Classic.

Silver Birch

Signature.

Slate

Classic.

Teak

Signature.

DS38 aluminium joist (including all associated connectors and accessories) -
Type

RDC10-40 Adjustable joist cradle

Finish

Black powder coated (RAL 9005)

Mill finish

Accessories:

Not required

BRSP

3 mm base rubber shock pad.

Standard product features

Height:

  • Total system height: 70–103 mm.
  • Deck board: Signature: 22; Classic: 25 mm.
  • Joist: 38 mm.
  • Support: 10–40 mm.

Allowable load:

  • Uniformly distributed: > 4.0kN/m².
  • Concentrated: 1.4 kN.

Length:

  • Board length: 3 m.
  • Joist length: 3.6 m as standard. Bespoke and pre-cut lengths available to special order.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
