MHA: Galvanised Mini Joist Hanger
Verified by manufacturer 7 months ago
MHA38
MHA38

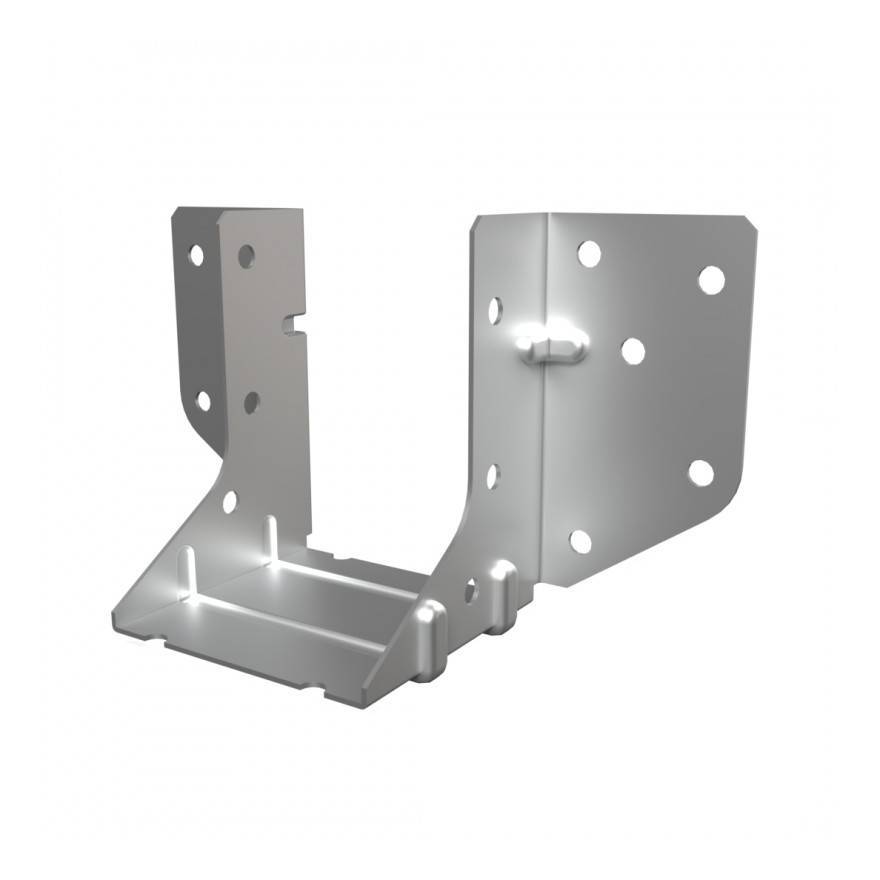

A mild steel mini joist hanger.
Application

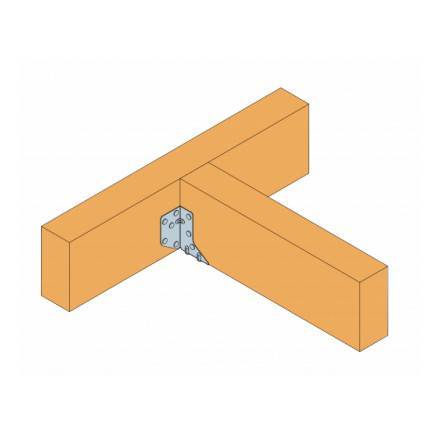

Suited for small timber sections and timber members; such as trimmers and ceiling joists.
Description
The MHA is a pre-galvanised mild steel mini joist hanger suitable for use with regularised timber, rough sawn timber, I-joists and LVL.
General information
Color | Silver |
Finish | Galvanized |
Material | Carbon steel |
Shape | Other |
Length | 45 mm |
Width | 38 mm 44 mm 47 mm 50 mm |
Height | 66 mm 63 mm 62 mm 60 mm |
Uniclass | |
CAWS | G20/65 Joist hangers G20/791 Proprietary joist hangers |
Specification data - Joist hangers
Format | Face fixing. |
Material | Carbon steel. |
Finish | Galvanized. |
Sizes | 45 x 38 x 66 mm. |
Literature
MHA: Galvanised Mini Joist Hanger Technical Data Sheet
