MFT-FOX VT-1L-Wood
Verified by manufacturer 28 days ago
Ventilated façade system.
Application
The system is suitable for ventilated façades in new and refurbishment projects with the following cladding materials:
- Fibre-cement.
- High pressure laminate (HPL).
- Plaster.
- Metal.
- Composite.
Description

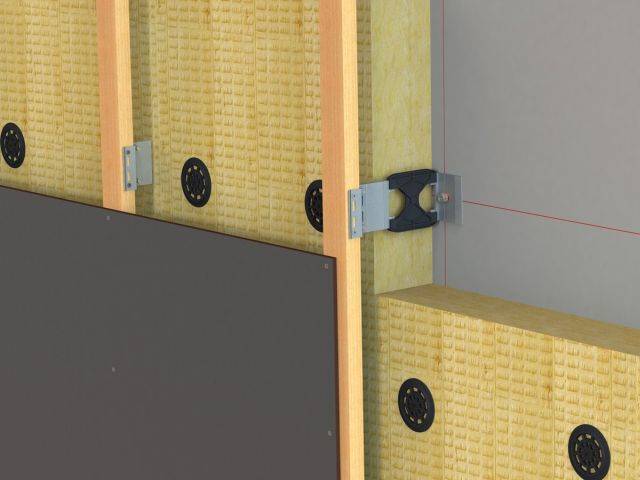

The ventilated façade one layer system consists of thermal bridge-free brackets (MFT-FOX VT), and mounting element (MFT-UNI), specifically designed for vertical one layer substructure in combination with wooden battens. The thermal bridge-free brackets are designed with both fixed and flexible point, using specially designed stainless steel screws S-AD, to allow expansion of the profile. Wooden battens are fastened to the mounting element with stainless steel screws.
Features and benefits:
- Flexible design using fixed and flexible points.
- 40 mm adjustment capability of the mounting element on the wall brackets.
- Powder coated bracket base plate for corrosion resistance.
- Bracket length: 140–320 mm.
- Brackets can be installed using a range of methods - anchors, screws and direct fastening.
- Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
- Substructures can be designed with PROFIS Façade to create technically sound, cost-efficient solutions.
- Thermal bridge calculation in accordance with EN ISO 10211-1.
General information
Finish | Powder-coated |
Material | Aluminium |
Length | 140 mm 320 mm Manufacturer guidanceBracket length, 140–320 mm. |
Uniclass | |
CAWS | G10/150 Steel framing system G10/20 Steel framing system H92/120 Rainscreen cladding |
