Mezzanine

Application

Designed especially for mezzanine floors, the exceptionally strong U7 base panel has been developed with a high density and strongly bonded outer layers. This allows for higher loadings or greater spacing between the supports. A leaner substructure, including greater beam spacing and omission of distribution sheet plates, means that mezzanine floors can be installed much more cost efficiently.


Suitable for:

  • Industrial flooring.
  • Mezzanines.
  • Structural applications.
  • Dry conditions, service class 1.

Description

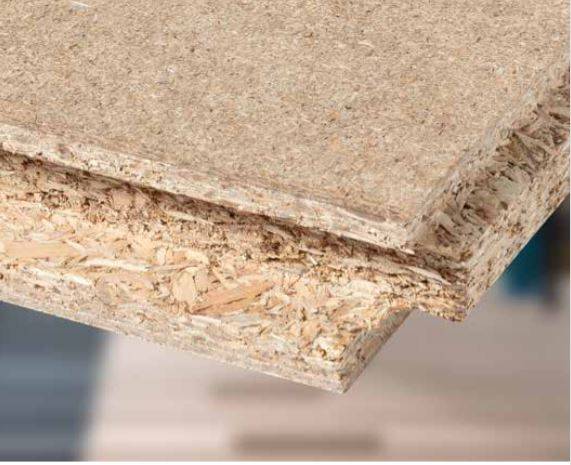

The highly structural U7 (P6) chipboard is on four sides finished with tongue-and-groove. Mezzanine U7 Standard TG is suitable for use in dry conditions, service class 1, mainly for industrial flooring like mezzanines. The fire reaction of the standard product is Cfl-s1 certified. Mezzanine U7 Standard TG is made from 100% circular wood: up to 85% postconsumer wood, supplemented by wood from waste flows from the wood industry, sustainable forestry or verge management.


Features and Benefits:

  • Highly structural U7 (P6) chipboard.
  • Extremely strong and rigid.
  • Average fire-retardant top side Cfl-s1.
  • Ergonomic sizing.
  • Tongue and groove on four sides.
  • 100% circular wood.

General information

Finish

Sanded

Raw - sanded.

Color

Beige

Raw chipboard.

Material

Chipboard

Shape

Rectangular

Size

600 x 2400 mm

1000 x 2550 mm

Uniclass 2015

Pr_25_71_97_58 Oriented strand boardsPrimary

CAWS

K11/335 Oriented strand board flooring

Specification data - Oriented strand boards Enhanced data

General requirements

Timber sourcing.

Reaction to fire classification

-

Flooring

To BS EN 13501-1, Class Dfl-s1.

Excluding flooring

To BS EN 13501-1, Class D-s2, d0.

Thickness

>25-32 mm.

To EN 324-1.

>32 mm.

To EN 324-1.

Edges

Tongued and grooved all edges.

Product Reference

Mezzanine

BendingStrength

11 N/mm².

To EN 312-table 9 (>25-32 thickness).

9 N/mm².

To EN 312-table 9 (>32 thickness).

Formaldehyde emissions

E1.

To EN 13986-table B1.

Water vapour permeability

15 μ.

To EN 13986 - table 9 - wet.

50 μ.

To EN 13986 - table 9 - dry.

Sound absorption

0.10- 0.25 α.

To EN 13986 - table 10.

ThermalConductivity

0.1 2W/m.K.

To EN 13986 - table 11.

Tension strength

6.1 N/mm².

To EN 12369-1 (>25-32 mm thickness).

5 N/mm².

To EN 12369-1 (>32 mm thickness).

Compression strength

9 N/mm².

To EN 12369-1 (>25-32 mm thickness)

7.6 N/mm².

To EN 12369-1 (>25 mm thickness).

ShearStrength

4.8 N/mm².

To EN 12369-1 (>25 - 32 mm thickness).

4.4 N/mm².

To EN 12369-1 (>32 mm thickness).

Biological durability

Class 1.

To EN 335.

Panel size

600 x 2400 mm.

1000 x 2550 mm.
