Metrotile Woodshake - Lightweight Metal Tile - Roof tiles

Verified by manufacturer 16 days ago

Metrotile UK Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

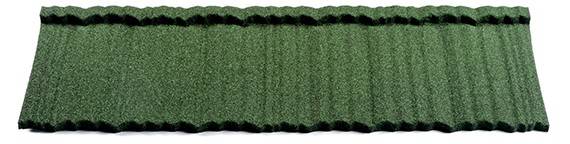

Tile designed to replicate traditional wooden shakes.

Jump to:
+44 (0)1249 658514 Website

Application

Suitable for Public, Commercial and Residential buildings.

Description

Tile designed to replicate traditional wooden shakes while offering superior benefits.


Features and benefits:

  • Better value and superior performance to traditional shake roof products.
  • The deep lines pressed into each ZAM coated steel profile results in increased shadow definition, resulting in a tile that looks virtually indistinguishable from traditional wooden shake tiles.
  • Constructed from the highest quality materials.
  • Aesthetically pleasing.
  • Resistant to extreme weather conditions.
  • Long lasting, low maintenance.
  • Low noise.
  • Economical.
  • Environmentally sustainable.
  • Vandal resistant.

General information

Color

Finish

Anti-slip

Material

Steel

Shape

Rectangle

Length

1330 mm

Width

370 mm

Height

0.41 mm

Warranty description

40 year

Uniclass

Pr_25_93_72_52 Metal tilesPrimary

CAWS

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H67/3 Metal roof tiling

H67/5 Metal roof tiling

H67/8 Metal vertical tiling

Specification data - Metal tiles

Finish

Mineral filled acrylic coating followed by stone granules and a clear acrylic glaze coat.

Profile

Woodshake tile.

Colour

Bronze.

Charcoal.

Green.

Red.

Terracotta.

Size

1330 x 370 x 0.410 mm.

Accessories

None.

Barge.

Ridge.

Velux Windows.

Pitch

10–90°.

Steel gauge

0.450 mm.

Weight

6.1 kg/m².

Coverage

0.47 m².

Sustainability data

Contains Red List materials

No

Country of material origin

Belgium

Country of product manufacture

Belgium

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Metrotile Woodshake BBA Certificate

Literature

Metrotile Woodshake Information Sheet

Metrotile Woodshake Information Sheet

Metrotile Woodshake Lighweight Roofing Example Specification

Metrotile Woodshake Lighweight Roofing Example Specification

Case studies

Featherstone and Hilton Community Centre

Featherstone and Hilton Community Centre
