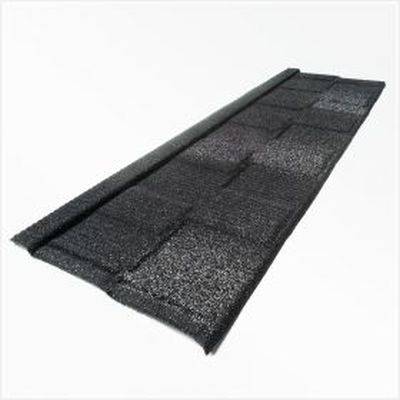

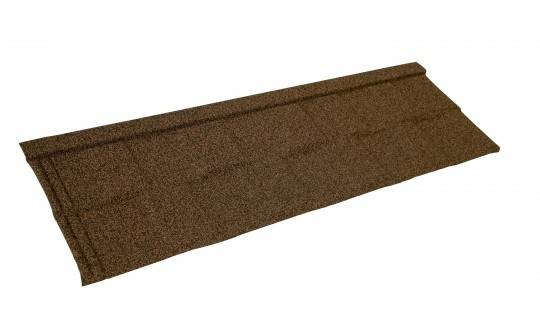

Metrotile Viksen - Lightweight Metal Tile - Roof tiles
Verified by manufacturer 16 days ago
BBA Agrément Certificate
Certificate type
Hand-split wooden shingle effect tile.
Application
Suitable for Public, Commercial and Residential buildings.
Description
Hand-split wooden shingle effect tiles designed to replicate an ancient Viking architectural style.
Features and benefits:
- The hand-split wood pattern imparts an individual and rustic character to each building.
- Constructed from the highest quality materials.
- Aesthetically pleasing.
- Resistant to extreme weather conditions.
- Long lasting, low maintenance.
- Low noise.
- Economical.
- Environmentally sustainable.
- Vandal resistant.
General information
Color | Bronze Green Red Brown Black |
Finish | Anti-slip |
Material | Steel |
Shape | Rectangle |
Length | 1325 mm |
Width | 410 mm |
Height | 0.45 mm |
Warranty description | 40 year |
Uniclass | |
CAWS | H67/110 Metal roof tiling H67/120 Metal roof tiling with counterbattens H67/130 Metal vertical tiling H67/3 Metal roof tiling H67/5 Metal roof tiling H67/8 Metal vertical tiling |
Specification data - Metal tiles
Finish | Mineral filled acrylic coating followed by stone granules and a clear acrylic glaze coat. |
Profile | Vixen tile. |
Colour | Bronze.Green.Red.Terracotta.Charcoal. |
Size | 1325 x 410 x 0.45 mm. |
Pitch | 10–90°. |
Steel gauge | 0.450 mm. |
Weight | 6.4 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | Belgium |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
BBA Agrément Certificate
Metrotile Viksen BBA Certificate
Literature
Metrotile Viksen Information Sheet
Metrotile Vixen Roof System Example Specification
