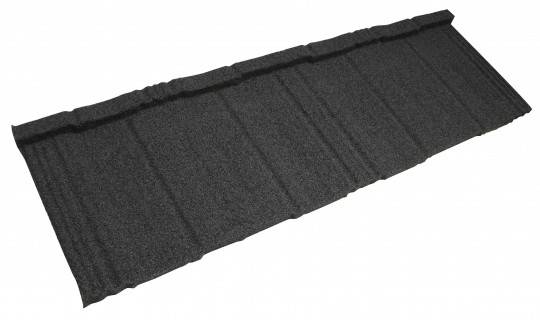

Metrotile Slate .900 - Lightweight Metal Tile - Roof tiles

Verified by manufacturer 16 days ago

Metrotile UK Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Blending a traditional Slate aesthetic with unbeatable security, the Metrotile Slate .900 profile is a product that offers incredible value and superior performance to traditional slate roof products.

Jump to:
+44 (0)1249 658514 Website

Application

Suitable for Public, Commercial and Residential buildings especially those at risk to vandalism and foot traffic.

Description

Preformed aggregate-coated steel tile sheets designed to replicate irregular shaped slate shake tiles.


Features and benefits:

  • Great value and superior performance to traditional slate roof products.
  • The deep lines pressed into each Aluzinc-coated steel profile results in increased shadow definition, resulting in a tile which looks virtually indistinguishable from traditional slate.
  • Offers vandal and weather resistance.
  • Formed from high quality Drawing Grade 3 steel.
  • Aesthetically pleasing.
  • Resistant to extreme weather conditions.
  • Long lasting, low maintenance.
  • Low noise.
  • Economical.
  • Environmentally sustainable.
  • Vandal resistant.

General information

Color

Green

Bronze

Grey

Black

Finish

Anti-slip

Manufacturer guidance

Mineral filled acrylic coating followed by stone granules and a clear acrylic glaze coat.

Material

Steel

Shape

Rectangle

Length

1330 mm

Width

370 mm

Height

0.9 mm

Warranty description

40 year

Uniclass

Pr_25_93_72_52 Metal tilesPrimary

CAWS

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H67/3 Metal roof tiling

H67/5 Metal roof tiling

H67/8 Metal vertical tiling

Specification data - Metal tiles

Finish

Mineral filled acrylic coating followed by stone granules and a clear acrylic glaze coat.

Profile

Metro tile.

Colour

Brindle.

Bronze.

Charcoal.

Greenstone.

Red.

Terracotta.

Size

1330 x 370 x 0.90 mm.

Accessories

Barrel cap/ vee ridge.

Guidance for specification option:

to cover 370 mm.

Ridge/ hip cap.

Guidance for specification option:

to cover 1150 mm.

Side flashing.

Guidance for specification option:

to cover 1150 mm.

Standard barge cover.

Guidance for specification option:

to cover 1150 mm.

Pitch

12–90°.

Weight

9.9 kg/m².

Steel gauge

0.900 mm.

Side laps

60 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Belgium

Country of product manufacture

Belgium

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Metrotile Slate .900 BBA Certificate

Literature

LABC Metrotile Slate 1 Roofing Sheet Certificate

LABC Metrotile Slate 1 Roofing Sheet Certificate

Metrotile Slate .900 Extra Secure Lightweight Steel Roofing System Example Specification

Metrotile Slate .900 Extra Secure Lightweight Steel Roofing System Example Specification

Metrotile Slate .900 Information Sheet

Metrotile Slate .900 Information Sheet
