Metrotile Bond 450 - Lightweight Metal Tile - Roof tiles

Verified by manufacturer 4 months ago

Metrotile UK Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

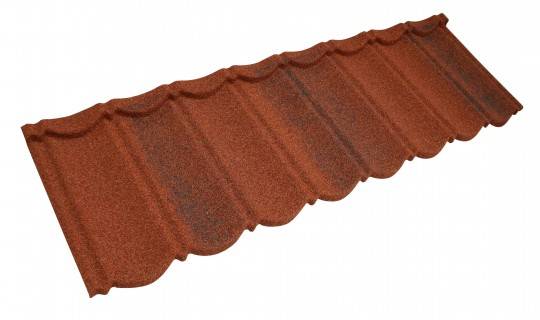

Pressed galvanised steel tile simulating traditional pantile tiles.

Jump to:
BIM object icon
+44 (0)1249 658514 Website

Application

Each tile is the equivalent of eight conventional roof tiles and may be fixed from vertical right down to a 10° pitch. Suitable for the vast majority of standard applications.

Description

Pressed steel tile simulating traditional pantile tiles.


Features and benefits:

  • Tiles are overlapped and then fixed, providing excellent strength and durability.
  • Constructed from the highest quality materials.
  • Aesthetically pleasing.
  • Resistant to extreme weather conditions.
  • Long lasting, low maintenance.
  • Low noise.
  • Economical.
  • Environmentally sustainable.
  • Vandal resistant.

General information

Color

Green

Bronze

Red

Black

Grey

Finish

Anti-slip

Material

Steel

Shape

Rectangle

Length

1330 mm

Width

415 mm

Height

0.41 mm

Warranty description

40 year

Uniclass

Pr_25_93_72_52 Metal tilesPrimary

CAWS

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H67/3 Metal roof tiling

H67/5 Metal roof tiling

H67/8 Metal vertical tiling

Specification data - Metal tiles

Finish

Mineral filled acrylic coating followed by stone granules and a clear acrylic glaze coat.

Profile

Bond tile.

Colour

Brindle.

Bronze.

Green.

Red.

Terracotta.

Burnt Umber.

Charcoal.

Size

1330 x 415 x 0.41 mm.

Execution

Installing metal roofing tiles

Side laps

64 mm.

Coverage

0.46 m².

Weight

6.2 kg/m².

Pitch

10–90°.

Batten size

50 x 25mm

Sustainability data

Contains Red List materials

No

Country of material origin

Belgium

Country of product manufacture

Belgium

Recyclability

100%

Recycled content

25 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2015

2

IFC

IFC2X3

2

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Metrotile Bond BBA Certificate

Literature

Lightweight Roofing Systems

Lightweight Roofing Systems

Metrotile Bond Information Sheet

Metrotile Bond Information Sheet

Case studies

Metrotile & New World Business Centre

Metrotile & New World Business Centre

Metrotile & PGL Liddington

Metrotile & PGL Liddington

Metrotile Bond - Priory Academies, Lincoln

Metrotile Bond - Priory Academies, Lincoln

New Charter Housing, Cheshire

New Charter Housing, Cheshire

Metrotile & Local Authority Flats, Bridgwater

Metrotile & Local Authority Flats, Bridgwater

Metrotile Local Authority Refurbs, Scotland

Metrotile Local Authority Refurbs, Scotland

Metrotile for Non-Traditional Homes

Metrotile for Non-Traditional Homes

Cornish Units, Normanton

Cornish Units, Normanton

Riverside Housing, Flat Refurbishment, Middleton

Riverside Housing, Flat Refurbishment, Middleton
