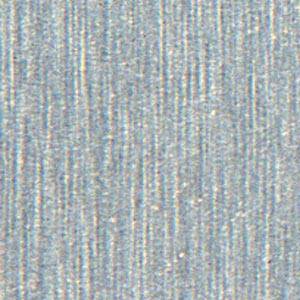

Metallic Laminate
Description

Metallic high pressure laminates available in many different collection and colour options.

It consists of layers of kraft paper impregnated with thermosetting resins as the base, and an outer layer of decorative paper impregnated with aminoplastic resins.

General information

Finish

Uniclass 2015

Pr_25_71_63_15 Compact or solid grade high-pressure laminate (HPL) boardsPrimary

CAWS

K13/140 Proprietary laminated plastics-veneered panel lining

K13/160 Proprietary

K30/10 Relocatable partition system

K30/130 Relocatable partition system

K32/112 Fully framed panel cubicles

Show more
Specification data - Compact or solid grade high-pressure laminate (HPL) boards

Product Reference

Metallic Laminate

Type

Drops

Patterns and decorations available in warm golden hues and silver metallic finishes.

Met Décor

A collection of decorative metallic finishes recommended for vertical use only.

Metalli

A collection of reflecting and opalescent laminates in various textures recommended mainly for vertical use.

Metalprint

A vertical, silver foil range with bubble or grille shaped cut-outs.

Thickness

0.9 mm

3050 x 1300 mm, for Met Décor and Metalli only.

1.0 mm

3050 x 1220 mm, for Drops and Metalli only.

1.2 mm

3050 x 1220 mm, for Metalprint only.

Colour

Insert requirement.

Finish

Insert requirement.

Standard product features

Technical properties:

  • Flatness (to BS EN 438-2): ≤60 mm/m.
  • Resistance to surface wear (to BS EN 438-2): IP: ≥150, A: ≥350.
  • Resistance to immersion in boiling water (to BS EN 438-2): ≥3 rating (0.9 and 1.0 mm), ≥4 rating (1.2 mm).
  • Resistance to dry heat (to BS EN 438-2): ≥3 rating (0.9 and 1.0 mm), ≥4 rating (1.2 mm).
  • Resistance to wet heat (to BS EN 12721) ≥3 rating (0.9 and 1.0 mm), ≥4 rating (1.2 mm).
  • Stability at elevated temperature (to BS EN 438-2): ≤0.55% (longitudinal), ≤1.05% (transverse).
  • Resistance to impact by small diameter ball (to BS EN 438-2): ≥20 N.
  • Resistance to cracking (to BS EN 438-2, thin laminates): ≥4 rating.
  • Resistance to scratching (to BS EN 438-2): ≥3 rating.
  • Resistance to staining (to BS EN 438-2): 5 rating (0.9 and 1.0 mm), ≥4 rating (1.2 mm).
  • Lightfastness (to BS EN 438-2): >4 rating.
  • Resistance to cigarette burns (to BS EN 438-2): ≥3 rating.
  • Resistance to water vapour (to BS EN 438-2): ≥3 rating (0.9 and 1.0 mm), ≥4 rating (1.2 mm).
  • Volume electrical resistance (to BS EN 61340): 1x10^9 - 1x10^11 Ohm.
  • Density (to BS EN ISO 1183): ≥1.35 g/cm³.
  • Spread of flame (to BS 476-7): Class 2.

Product Options

Colour/ Finish:

Many colour options are available; consult manufacturer's literature for more information. Finish options are dependent on colour choice.
