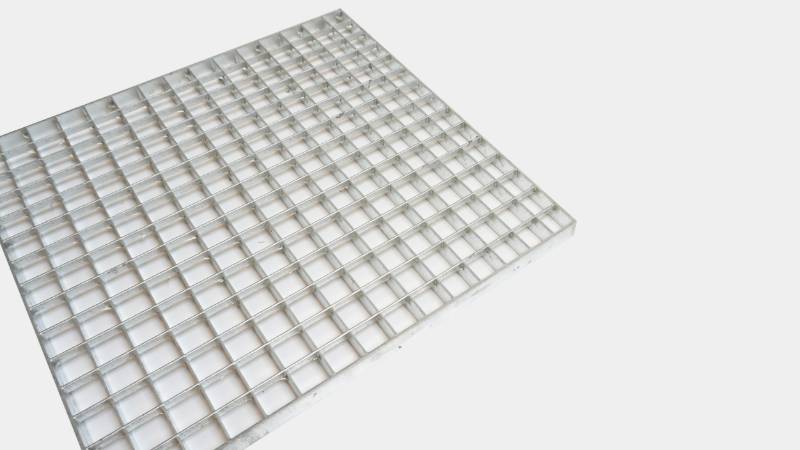

Metal Mesh Gratings

Verified by manufacturer 3 months ago

Elefant Gratings T/A PcP Gratings Ltd Third party certifications:
  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Environmental Product Declaration

    Certificate type

Mesh gratings

Jump to:
BOS
+44 (0)1902 797110 Website

Application

  • Facades and screening.
  • Ventilation.
  • Brise soleil.
  • Access walkways and maintenance platforms.
  • Internal & external application

Description

Mesh gratings available in countless variations with configurations to suit the application and aesthetic requirements. PcP produces several different surfaces that are untreated steel, galvanized steel, aluminium, stainless 304 and acid proof 316, cor-ten A (weathering steel), high strength steel.


The grating is provided with an edge profile on four sides or unbound for your fabrication/ finishing. Gratings from PcP. can be combined with three different types of mesh. Grating with a square mesh, gratings with rectangular mesh and gratings with louvre bars. The variations and combinations are numerous of all three types. The mesh grating can also be supplemented with serrations for enhanced slip resistance - It is an option and not standard for PcP. mesh gratings. Grating is available with cut-outs and shaping.

General information

Finish

Unfinished

Material

Carbon steel

Shape

Circle

Square

Rectangle

Manufacturer guidance

Linear & Radius shaping

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_96_30_31 Footway gratingsPrimary

CAWS

Q10/312 Footway gratings

L30/460 Walkways

L30/45 Ramps/ walkways

Specification data - Footway gratings

Size

-

Manufacturer guidance

Insert requirement, contact manufacturer for information.

Grating type

Solid grating.

Material

Aluminium 3005-16 H66.

Corten steel.

Stainless steel Grade 1.4301 (304).

Stainless steel Grade 1.4404 (316).

Steel 240 YP.

Steel HSS420.

Finish

-

Manufacturer guidance

Insert requirement.

Pattern

-

Manufacturer guidance

Insert requirement.

Fixing type

Clips to suit bar centres.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.41 kg CO₂ eq/kg

Manufacturer guidance

Carbon Steel Hot Dip Galvanised 2.64kg CO2e/kg

Stainless Steel 3.66kg CO2e/kg

Aluminium 9.09kg CO2e/kg

Recyclability

100%

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Environmental Product Declaration

Environmental Product Declaration

Verified EPD Certificate - flat bar gratings
