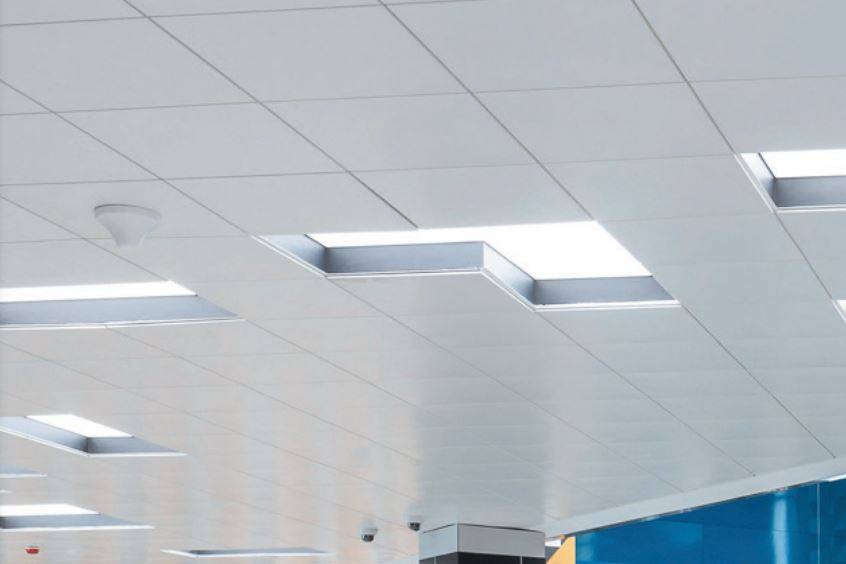

METAL Lay in MicroLook 8 - Exposed Grid Ceiling System
Verified by manufacturer 13 days ago
Unperforated infill units
Unperforated infill units
Exposed grid ceiling system, demountable.
Application
For application in a variety of ceiling areas, from small service rooms to large commercial office buildings and major transportation terminals.
Description
Exposed grid ceiling system, available in a variety of edge details for installation on standard 15 mm suspension systems.
Features and benefits:
- Easily assembled and fully demountable to allow access to the ceiling void.
- BIOGUARD antimicrobial finish option.
- Additional design options available as part of the Vario Design range.
- METAL MicroLook 16 and METAL Axal Vector systems also available, specified separately.
General information
Color | White Black Grey Brown Other |
Finish | Painted Anti-microbial |
Material | Steel |
Shape | Square Rectangle |
Length | 600 mm Guidance for specification option: Infill units. 1200 mm Guidance for specification option: Infill units. |
Width | 600 mm Guidance for specification option: Infill units. |
Height | Bespoke |
Warranty description | Manufacturer guidanceIndividual product and approved KCS Installed system |
Uniclass | |
CAWS | K45/12 Existing suspended ceiling system K45/160 Board-suspended ceiling system alterations K45/130 Unit-suspended ceiling system alterations K45/13 Unit suspended ceiling system alterations K40/10 Unit/ modular suspended ceilings K45/120 Existing suspended ceiling system K40/265 Infill units K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system |
Specification data - Modular suspended ceiling systems
Classification data | |
Ceiling support | DONN® DX15 exposed 15 mm grid - System C. Exposed demountable - System C (15 mm T-Grid). Manufacturer guidanceConsult manufacturer's literature for more details. |
Support fasteners | Suspended ceiling clips. |
Ceiling units | Lay-in MicroLook 8, 500 x 500 mm, 8 mm deep. Lay-in MicroLook 8, 600 x 600 mm, 8 mm deep. Lay-in MicroLook 8, 675 x 675 mm, 8 mm deep. Lay-in MicroLook 8, 750 x 750 mm, 8 mm deep. Lay-in MicroLook 8, 1200 x 300 mm, 8 mm deep. Lay-in MicroLook 8, 1200 x 600 mm, 8 mm deep. Manufacturer guidanceSee also Perforations (variants) and Colour for related options. |
Barriers in ceiling void | |
Acoustic barriers | VLSRX acoustic fleece and Premium OP15 acoustic infill. VLSRX acoustic fleece and Premium B17 acoustic infill. VLSRX acoustic fleece. Not required. |
Samples required | Product samples. Demountable suspended ceiling prototypes. Not required. Manufacturer guidanceConsult manufacturer for options. |
Anti-microbial coating | BIOGUARD anti-microbial coating. Guidance for specification option: Consult manufacturer's literature for details. Not required. |
Weight | Infill units: 4.0–5.5 kg/m². Manufacturer guidanceWeight varies depending on the edge detail and acoustic infill. |
Light reflectance | Infill units: 85%. Manufacturer guidanceApplicable for RAL 9010 only; consult manufacturer for details of other colours. |
Constant humidity resistance | 90% RH. |
Acoustic performance | To EN ISO 10140-2, Rw 19 dB. |
Third-party certification | Indoor Air Quality Class A+. Cradle to Cradle Certified Silver. Manufacturer guidanceCradle to Cradle certification applies to RAL 9010 only. |
Reaction to fire | To EN 13501, Euroclass A1. Manufacturer guidanceApplicable for RAL 9010 only; consult manufacturer for details of other colours. |
Colour | White RAL 9010. Guidance for specification option: Standard. RAL 9003. RAL 9006. RAL 9005. RAL 9007. RAL 9016. Global White. Wood effect, Ash. Guidance for specification option: Tiles only. Wood effect, Natural Bamboo. Guidance for specification option: Tiles only. Wood effect, Caramel Bamboo. Guidance for specification option: Tiles only. Wood effect, Maple. Guidance for specification option: Tiles only. Wood effect, Oak. Guidance for specification option: Tiles only. Wood effect, American Cherry. Guidance for specification option: Tiles only. Wood effect, American Walnut. Guidance for specification option: Tiles only. Manufacturer guidanceInfill only. |
Perforations | Unperforated. |
Type | Solid. |
Materials | Infill units: post-coated, 0.5–0.6 mm galvanized steel. |
Perimeter trim | Not required. RA 1 Trim. Guidance for specification option: Consult manufacturers literature for more details. RA 2 Trim. Guidance for specification option: Consult manufacturers literature for more details. RA 3 Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 4 F trim. Guidance for specification option: Consult manufacturers literature for more details. RA 5 F Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 6 F Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 9 F trim. Guidance for specification option: Consult manufacturers literature for more details. RA 1 S trim. Guidance for specification option: Consult manufacturers literature for more details. Ra 3 S Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. |
Bulkhead | Type 1B, 200 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 300 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 400 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 600 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 200 mm Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 300 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 400 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 750 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 1000 mm. Guidance for specification option: Consult manufacturers literature for more information. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | Manufacturer guidanceplease refer to EPD |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 14 % |
Literature
Literature type

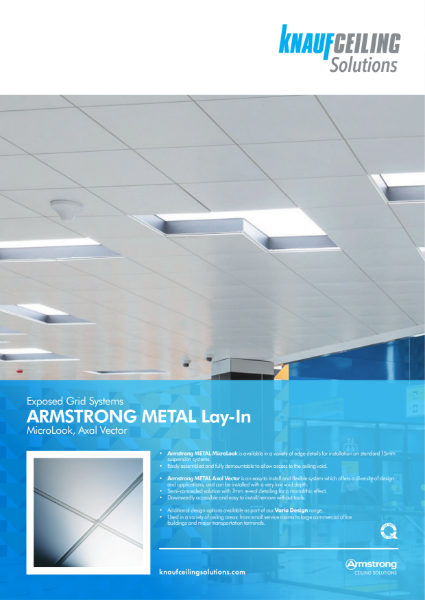

ARMSTRONG METAL Lay-In
METAL Perimeter Trims + Bulkheads Datasheet
DONN® DX15 exposed 15 mm grid, System C - Data Sheet
