Metal Faced Beaded Frame Access Panel (EX01 Range) - Non Fire Rated - Wall and Ceiling Access Panel

Name: Metal Faced Beaded Frame Access Panel (EX01 Range) - Non Fire Rated - Wall and Ceiling Access Panel
Brand: Exitile Access Ltd
SKU: sRCJ33B6xfKciw5FQs3QSn

Verified by manufacturer 23 days ago

Exitile Access Ltd

Metal access panel for walls and ceilings, beaded frame, non fire rated.

Jump to:

+44 (0) 24 7635 2771 Website

Application

Suitable for use in jointless plasterboard wall and ceiling systems.

Description

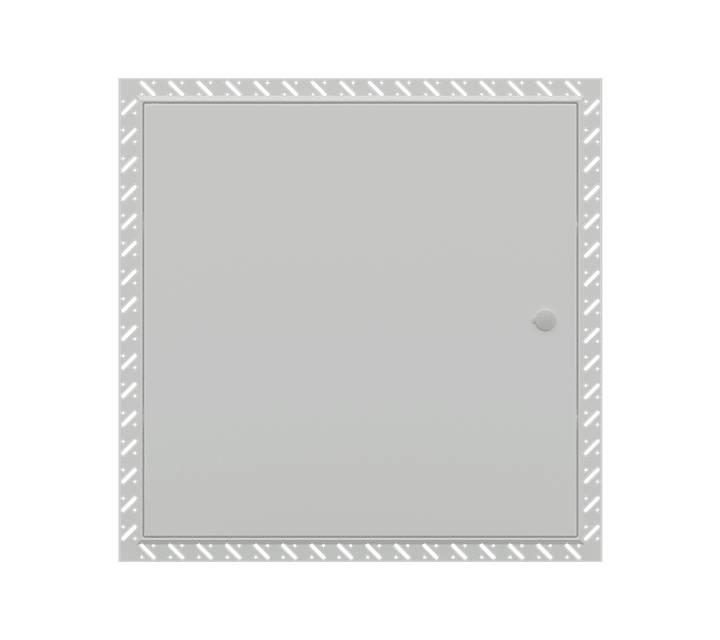

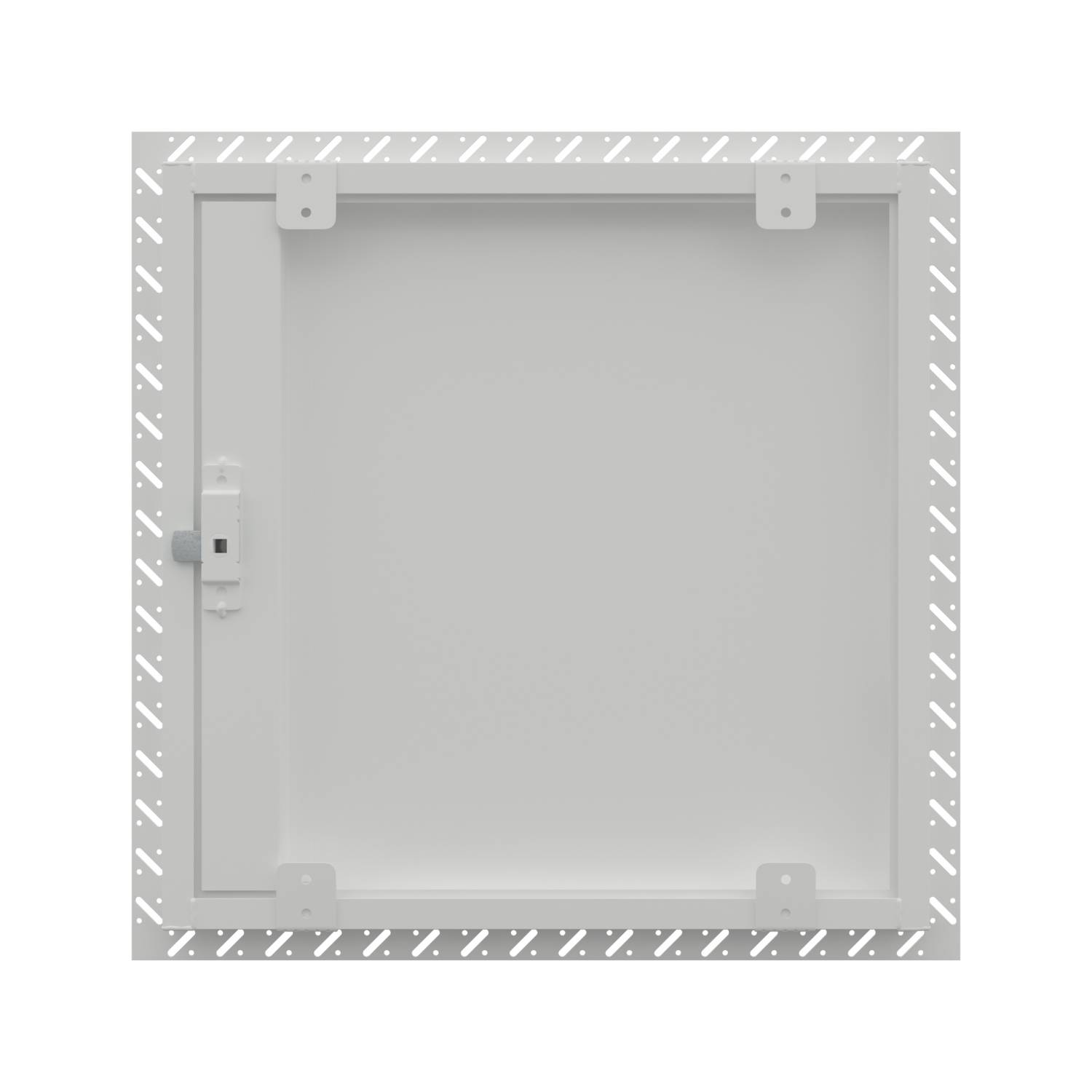

This access panel is designed with a 27 mm deep frame to fit into a structural membrane of a jointless plasterboard wall and ceiling system where space is an issue. It is manufactured with a beaded frame for taping and jointing or skim coat plastering and has a metal faced door. The door leaf is locked in place via a budget lock as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.

Features and benefits:

The slim fit frame has been designed to cover Part J of the Building Regulations, where regular maintenance to services is required.
Manufactured from Zintec steel with a 0.9 mm thick door and frame.
The door leaf is hinged by a pin hinge system.
This panel is available up to 1200 x 1000 mm.

General information

Color	White Other
Finish	Powder-coated
Material	Steel
Shape	Square Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	L20/630 Hatches K10/430 Access panels

SKU Code	EX01-000-MD-BF-BL

Specification data - Access panels

Classification data
Position	Wall-mounted. Ceiling-mounted.
Size	- Manufacturer guidance Bespoke sizes available, insert requirements. This product is manufactured in the UK and can be made to any bespoke size between 150 x 150 mm (minimum) and 1200 x 600 mm (maximum). The average lead time is 3–5 working days.
Frame	Bead for taping and jointing or skim coat plastering.
Panel	-
Material	Steel.
Integral finish	Powder-coated.
Latch or lock type	Low level security budget lock. Touch catch. Medium level security IP65 - key retaining tamper proof lock. High level security castellated tamper proof lock. 3 way euro profile cylinder lock.
Colour/ Finish	RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements.

Sustainability data

Country of product manufacture	United Kingdom
Material	Steel
Recyclability	Fully Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	22 %
Expected Life	Ten year
